Closets #

Skill Level: Intermediate (Level 2) #

Estimated Time: 2-4 Hours Per Closet #

Introduction #

This is the hands-on guide where you build closet shelves from start to finish — Part 3 of our closet shelving series. If you’ve followed along from the beginning, you already understand the industry standards for shelf heights, rod placements, and material specifications (Part 1), and you’ve created a detailed layout plan for every closet in the house (Part 2). Now it’s time to pick up your tools and build. This guide shows you exactly how to build closet shelves through the complete installation process: prepping the closet, installing cleats, cutting and setting shelves, hanging rods, and adding support brackets. Each step includes the specific fasteners, techniques, and professional tips that make the difference between a closet that looks clean and solid and one that sags, squeaks, or falls apart within a year. Learning to build closet shelves efficiently is essential because closet shelving is one of the most repetitive tasks in finish carpentry — a typical new construction house might have eight to twelve closets. That repetition is an advantage. Once you dial in your process on the first closet, you can move through the rest of the house efficiently, producing consistent quality in every room. The key is establishing a systematic workflow and sticking to it. Before you begin, make sure you have your completed layout plan from Part 2 and all materials on site. Trying to build closet shelves without a plan leads to wasted material, inconsistent heights, and callbacks. Take the time to set up properly, and the actual installation will go quickly and smoothly.

Series Overview #

This guide is Part 3 of a three-part series on building closet shelves in new construction:

• Part 1 — Standards: Industry measurements, rod heights, shelf spacing, and material specifications
• Part 2 — Layout Design: Planning and designing layouts for every closet type
• Part 3 — Building (You Are Here): Step-by-step construction, cutting, installation, and finishing

Before You Begin #

Prerequisites #

• Drywall is complete and finished. All closet walls must be fully drywalled, taped, and sanded before you build closet shelves. You need solid, flat walls to attach cleats and set shelves against.
• Closet layout plan from Part 2 is finalized. You should have a written or drawn plan for every closet in the house specifying shelf heights, rod locations, section widths, and material depths. Do not start building without this plan.
• All materials are on site. Particle board shelving, MDF or pine cleats, round rods, support brackets, fasteners, and glue should all be staged and ready. Running to the supply house mid-installation kills your momentum and efficiency.
• Stud locations are identified. Use a stud finder to locate and mark all studs in every closet before you start cutting cleats. Cleats must be fastened into studs — they carry the full weight of the shelving and anything stored on it.

What You Need To Know #

• Cleats carry all the weight — they must hit studs. When you build closet shelves, the cleats are the structural backbone of every shelf. A cleat that’s only fastened into drywall will pull out under load. Every cleat must be nailed or screwed into at least two studs. No exceptions.
• Level is critical. A shelf that’s out of level is immediately visible and looks unprofessional. Check every cleat with a 4-foot level before nailing it off. It takes 10 seconds to check and saves you from tearing it out and redoing it later.
• Particle board dulls blades fast. The resin and glue in particle board shelving is hard on saw blades. Family Handyman recommends fine-tooth blades for clean cuts. Use a fine-tooth blade (60+ teeth for a miter saw, 80+ for a table saw) and expect to change or sharpen blades more frequently than when cutting solid wood.
• Work top-down. Install the highest shelves and cleats first, then work your way down. This prevents you from bumping or damaging lower shelves while reaching overhead, and it’s easier to measure down from a reference point than up from the floor (floors are rarely perfectly level).

Tools Required #

Power Tools #

• Miter saw — For cutting cleats and rods to length. A 10″ or 12″ sliding compound miter saw handles all standard cleat and rod cuts.
• Circular saw or table saw — For cutting particle board shelving to width or length. A table saw gives straighter cuts, but a circular saw with a straightedge guide works well on site.
• 16-gauge finish nailer — For attaching cleats to studs. The 16-gauge nail has enough holding power to secure cleats under load. This is your primary fastening tool for structural connections.
• 18-gauge brad nailer — For tacking shelves to cleats and for lighter trim work. The 18-gauge nail holds shelves in place without splitting thin material.
• Drill/driver — For driving screws when additional holding power is needed, such as bracket installation or reinforcing cleats in high-load areas.

Hand Tools #

• Tape measure — 25-foot minimum. You’ll be measuring constantly — closet dimensions, shelf lengths, cleat positions, rod lengths.
• 4-foot level — Essential for checking every cleat before nailing. A shorter level won’t span enough of the cleat to give you an accurate read.
• Pencil — For marking stud locations, shelf heights, and cut lines. Keep several sharpened pencils in your pouch.
• Chalk line — For snapping long, straight reference lines across walls for cleat placement. Especially useful in walk-in closets with long walls.
• Stud finder — Electronic stud finder for locating framing behind drywall. Verify with a nail or small drill bit if you’re unsure.
• Utility knife — For scoring particle board edges, trimming material, and general cleanup tasks.
• Framing square — For checking corners and marking square cuts on shelving material.

Supplies #

• 16-gauge finish nails, 2-1/2″ — For attaching cleats to studs. The extra length ensures the nail passes through the cleat and drywall and bites firmly into the stud.
• 18-gauge brad nails, 1-3/4″ — For tacking shelves to cleats. Short enough to avoid poking through the top of the shelf, long enough to hold.
• 18-gauge staples, 1-1/4″ — Alternative fastener for securing shelf edges or attaching thin material.
• Wood glue — For reinforcing joints where cleats meet in corners or where extra holding power is needed.
• Sandpaper (120-150 grit) — For smoothing rough edges on cut particle board. Particle board edges chip and splinter — a quick sanding pass makes it safe and clean.

Materials #

• 3/4″ particle board shelving — Available in 12″, 16″, and 24″ depths. Use 12″ for standard reach-in closets, 16″ for linen closets and deeper shelves, and 24″ for walk-in closets and specialty storage areas. Pre-finished (white melamine) is standard for new construction.
• 1×4 MDF or pine cleats — Used in rod sections where the cleat also serves as the rod support. The 1×4 provides a wide enough surface to notch for the rod while still supporting the shelf above. Use MDF for paint-grade closets and pine where stain-grade is specified.
• 1×2 MDF or pine cleats — Used in shelf-only sections where no rod is needed (such as linen closet shelves or upper shelves in a shelf stack). The 1×2 is less visible and provides adequate support for shelves without rods.
• 1-1/4″ round wood rods — Standard closet rod for hanging clothes. Available in 6-foot and 8-foot lengths. Hardwood rods are stronger than softwood — use hardwood for any span over 30″.
• Support brackets — Metal shelf brackets or wood partitions used for any shelf span over 36″. Center the support to divide long spans into two shorter sections. Without support, particle board will sag under load over time.

How to Build Closet Shelves Step by Step #

Step 1: Prep the Closet #

Before you build closet shelves in any closet, take 10 minutes to prep the space properly. This step prevents mistakes that waste time and material later.

• Verify stud locations. Run your stud finder across every wall where a cleat will be installed. Mark each stud with a pencil at the height where your cleats will go. Double-check by probing with a finish nail — stud finders can give false readings near electrical boxes, metal corner bead, or plumbing.

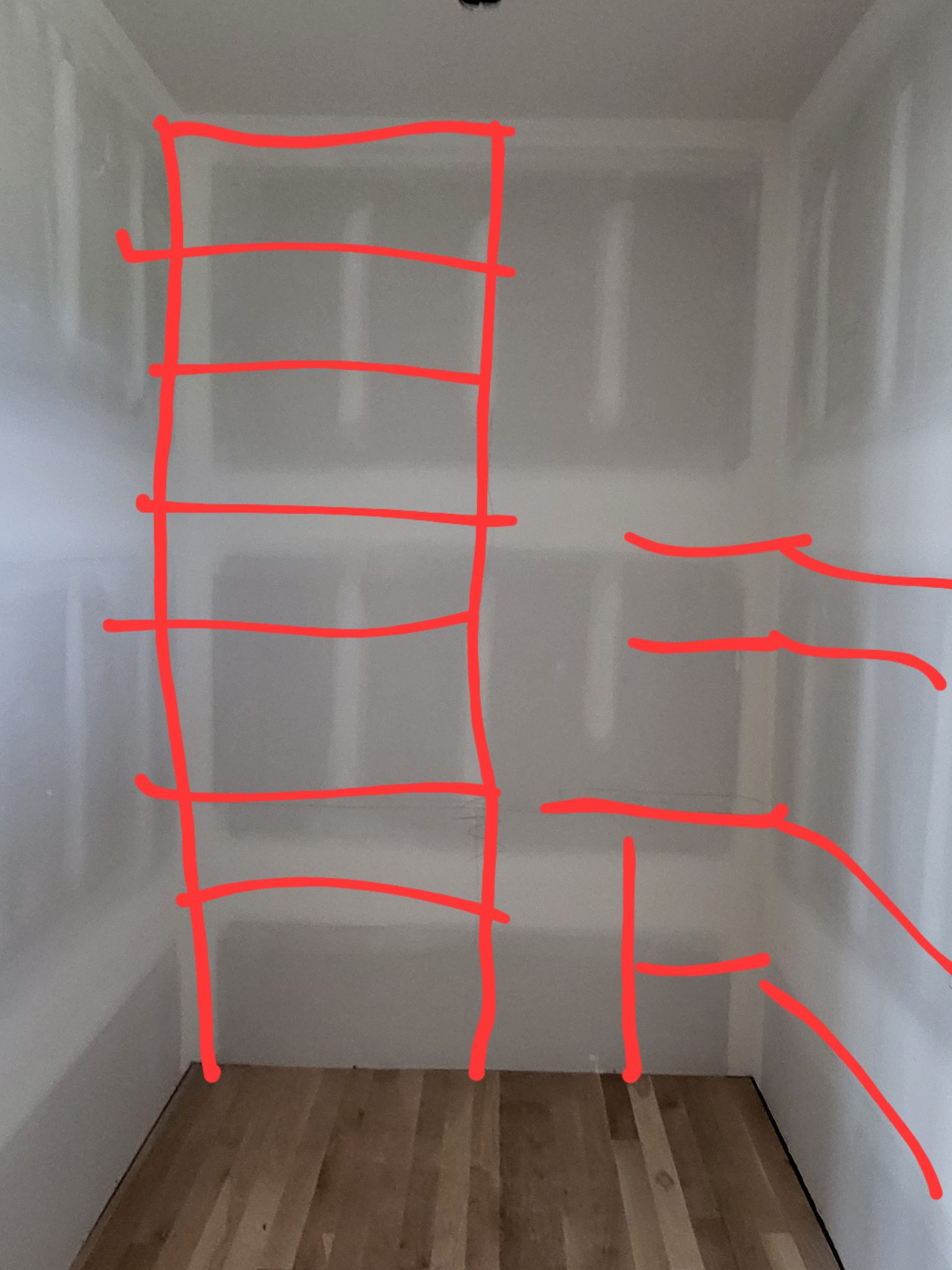

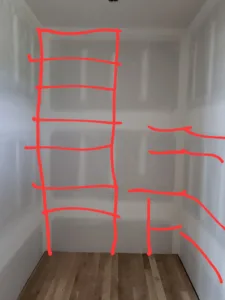

• Mark shelf heights from the floor. Using your layout plan from Part 2, measure up from the floor and mark the top-of-cleat position for every shelf and rod in the closet. Mark on both side walls and the back wall so you have reference points on all three surfaces.
• Snap chalk lines for cleat placement. Connect your marks with a chalk line to create a continuous, level reference line for each cleat. This is faster and more accurate than holding a level and drawing a pencil line, especially on long walls. Use blue chalk — red chalk stains and bleeds through paint.
• Clear the closet floor. Remove any debris, drywall scraps, or tools from the closet floor. You need a clean workspace to set up your level and move freely. Stack your pre-cut material outside the closet in the order you’ll need it.

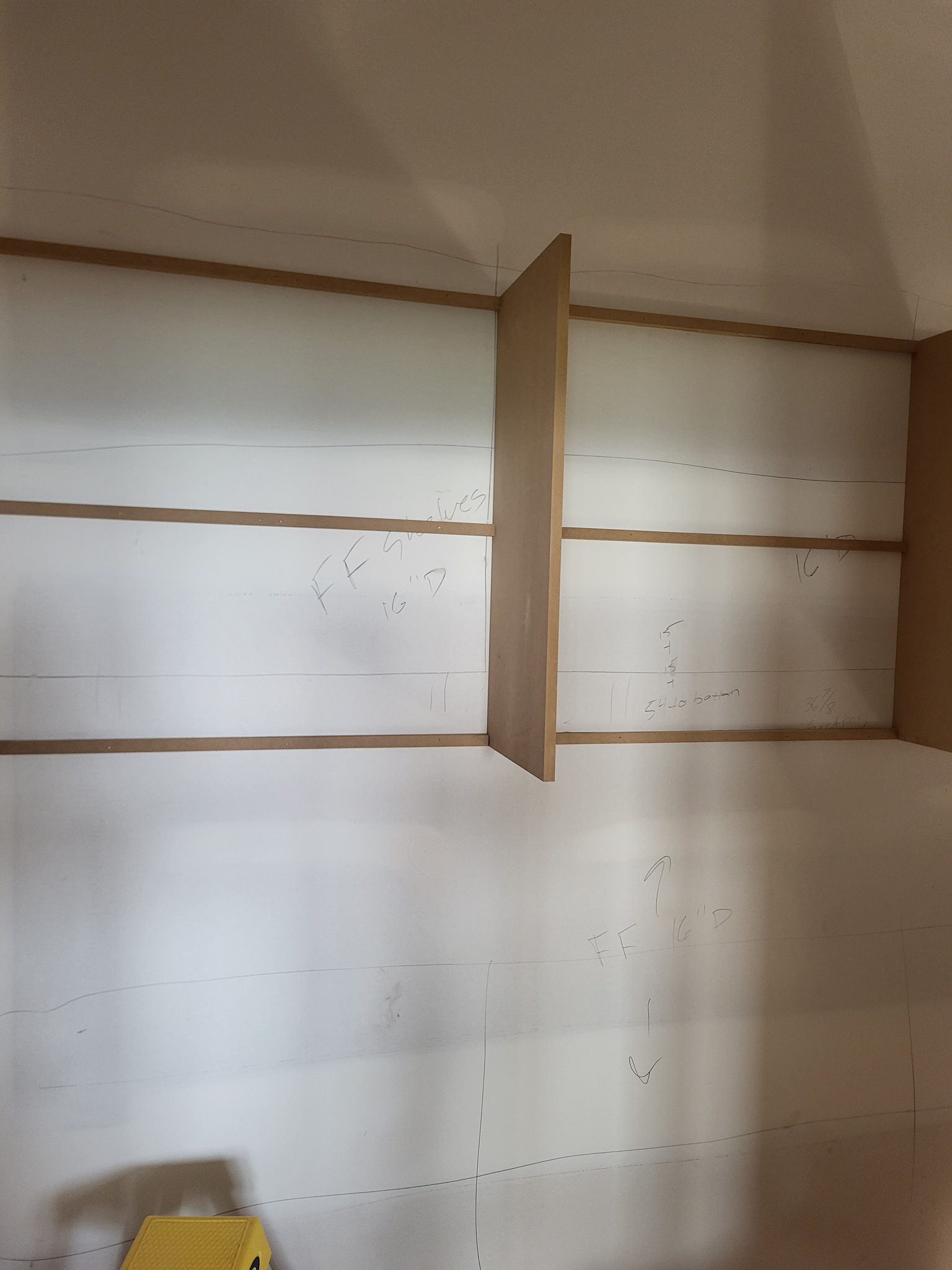

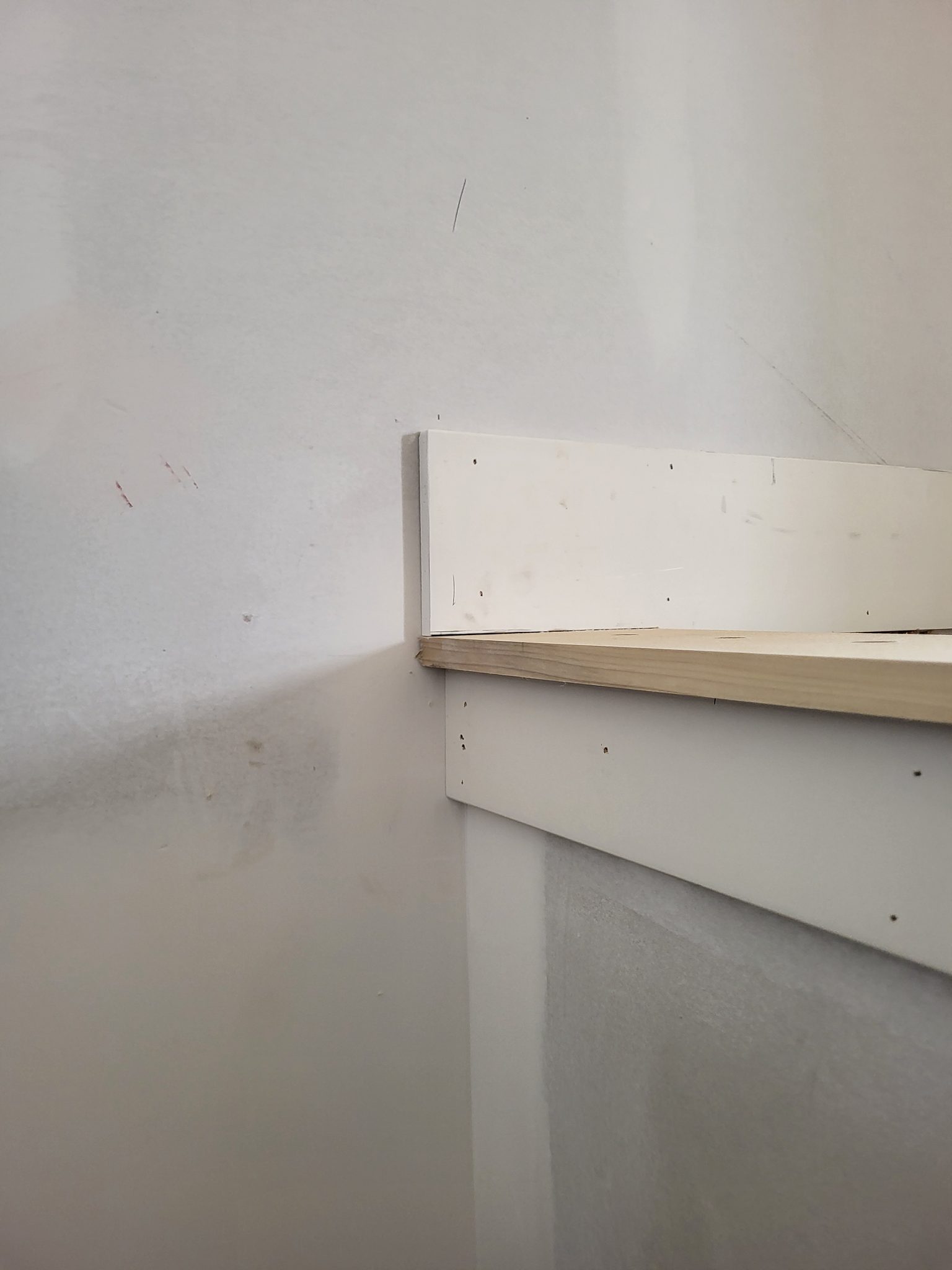

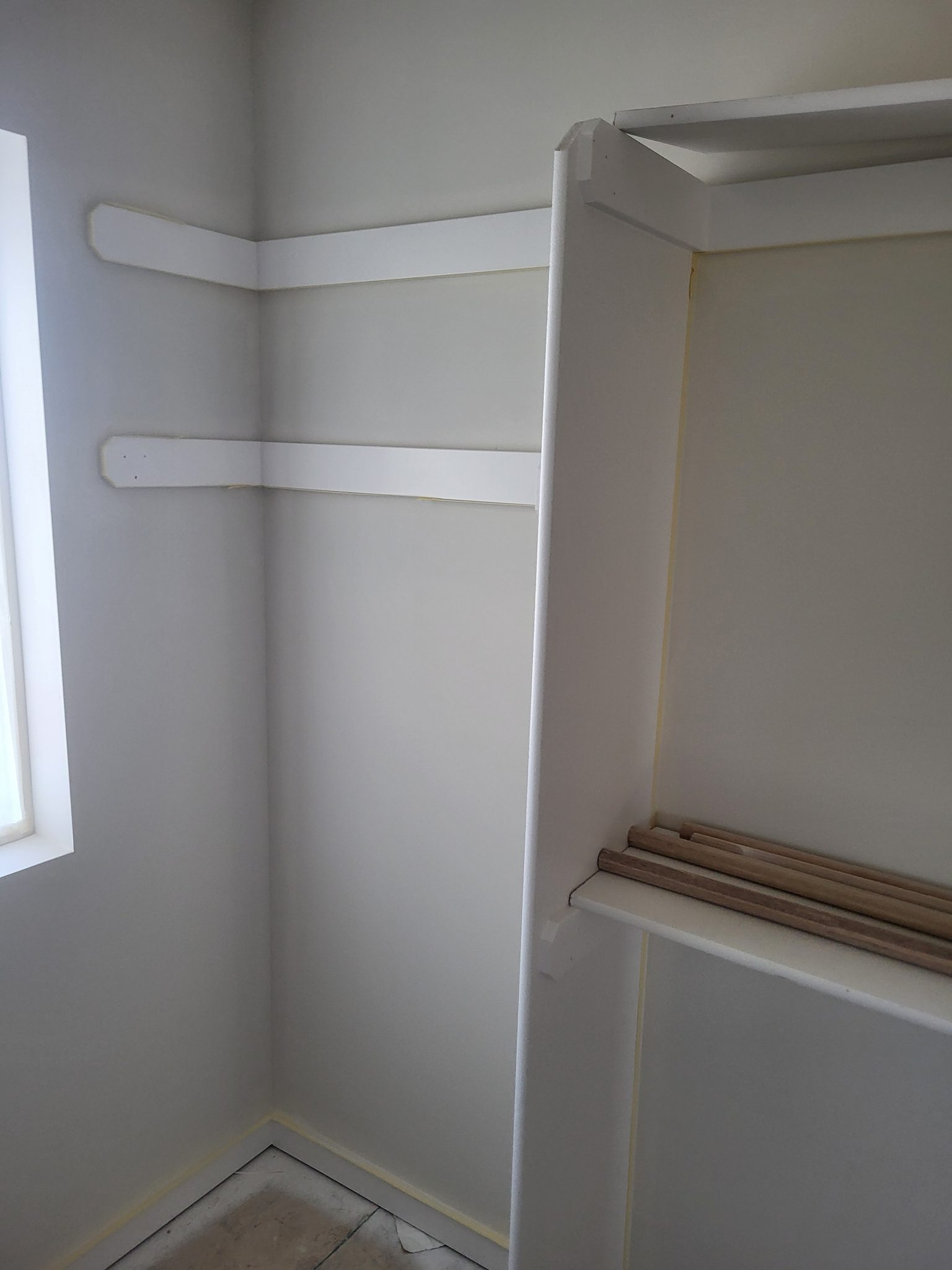

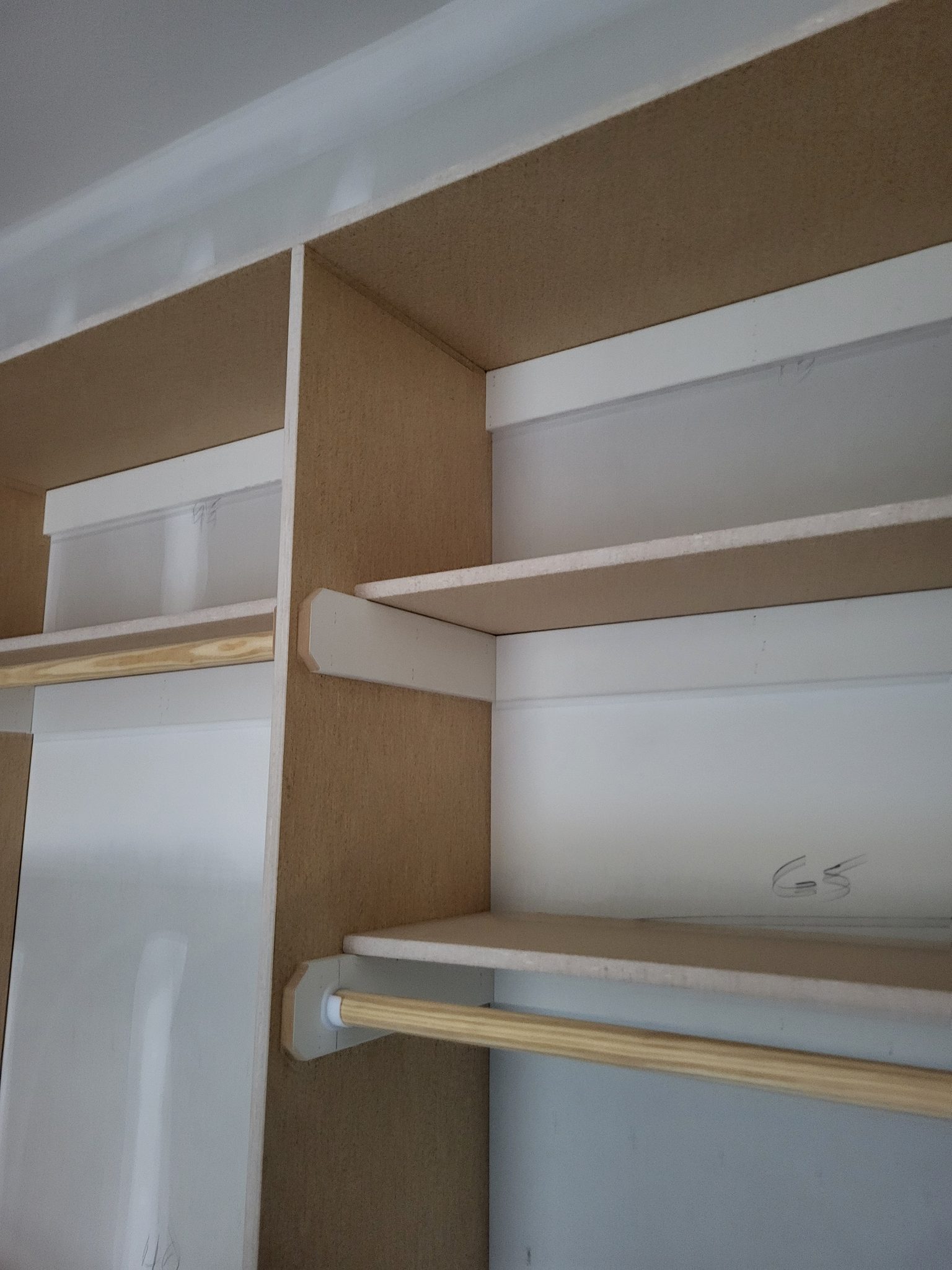

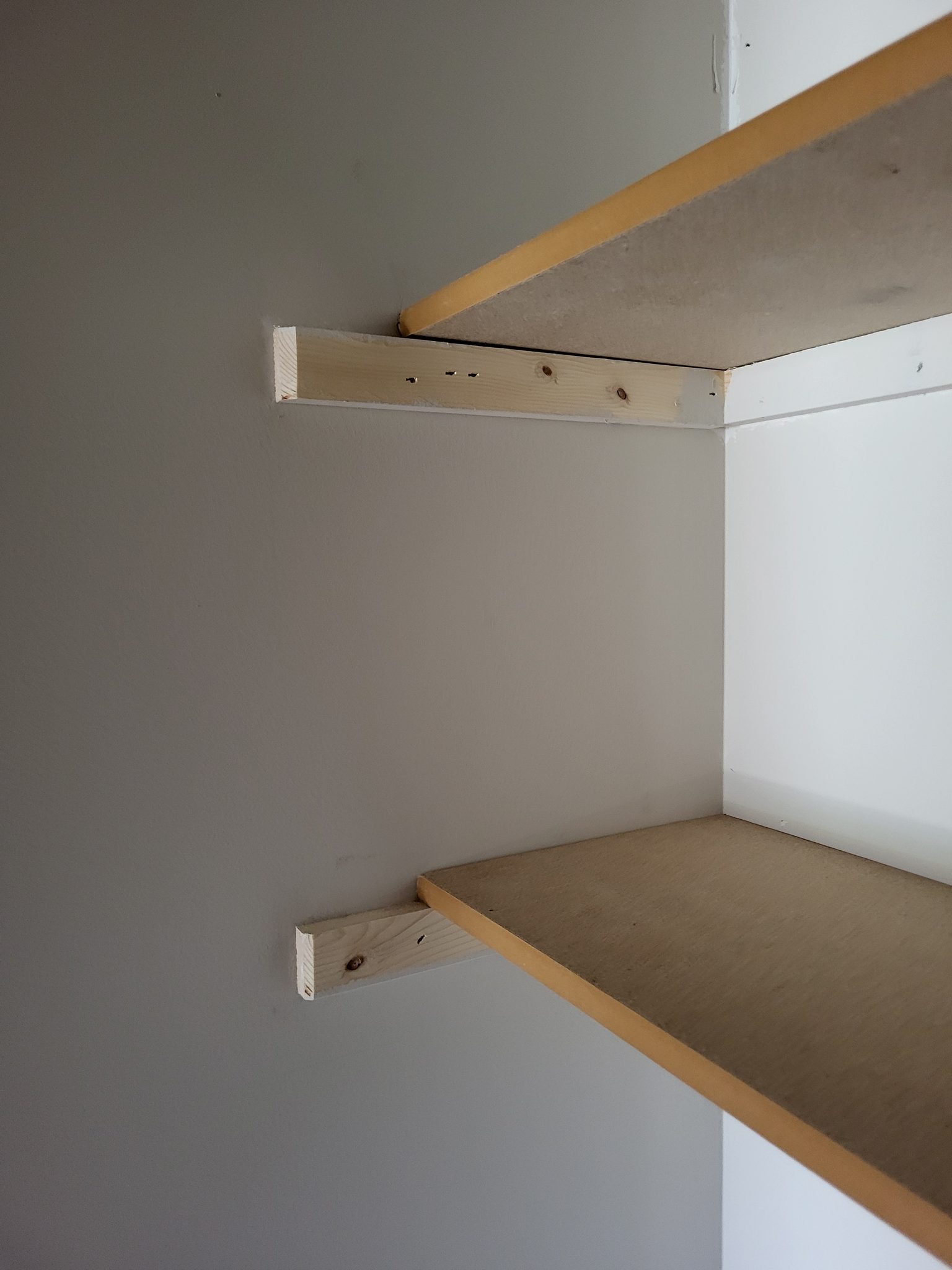

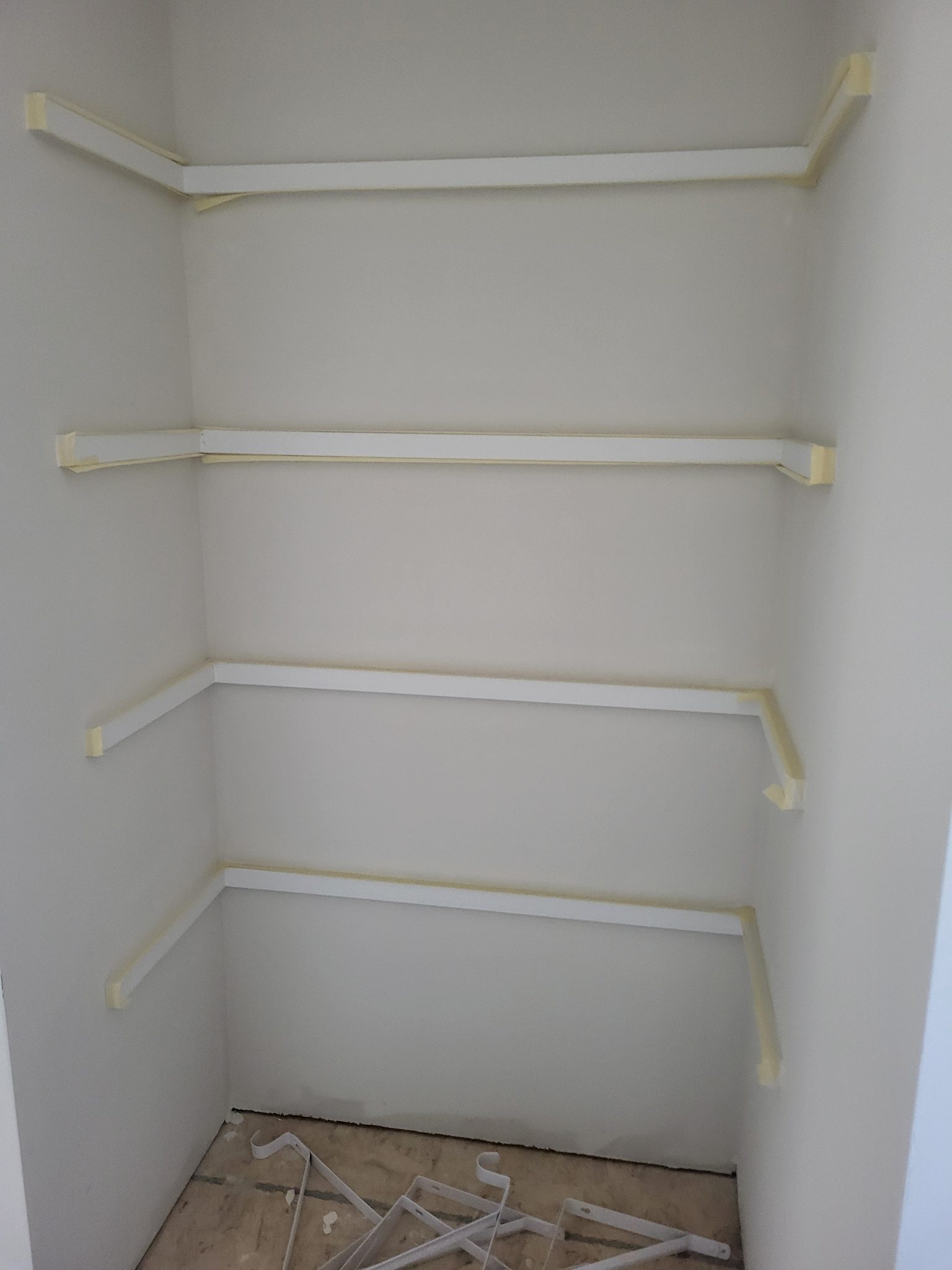

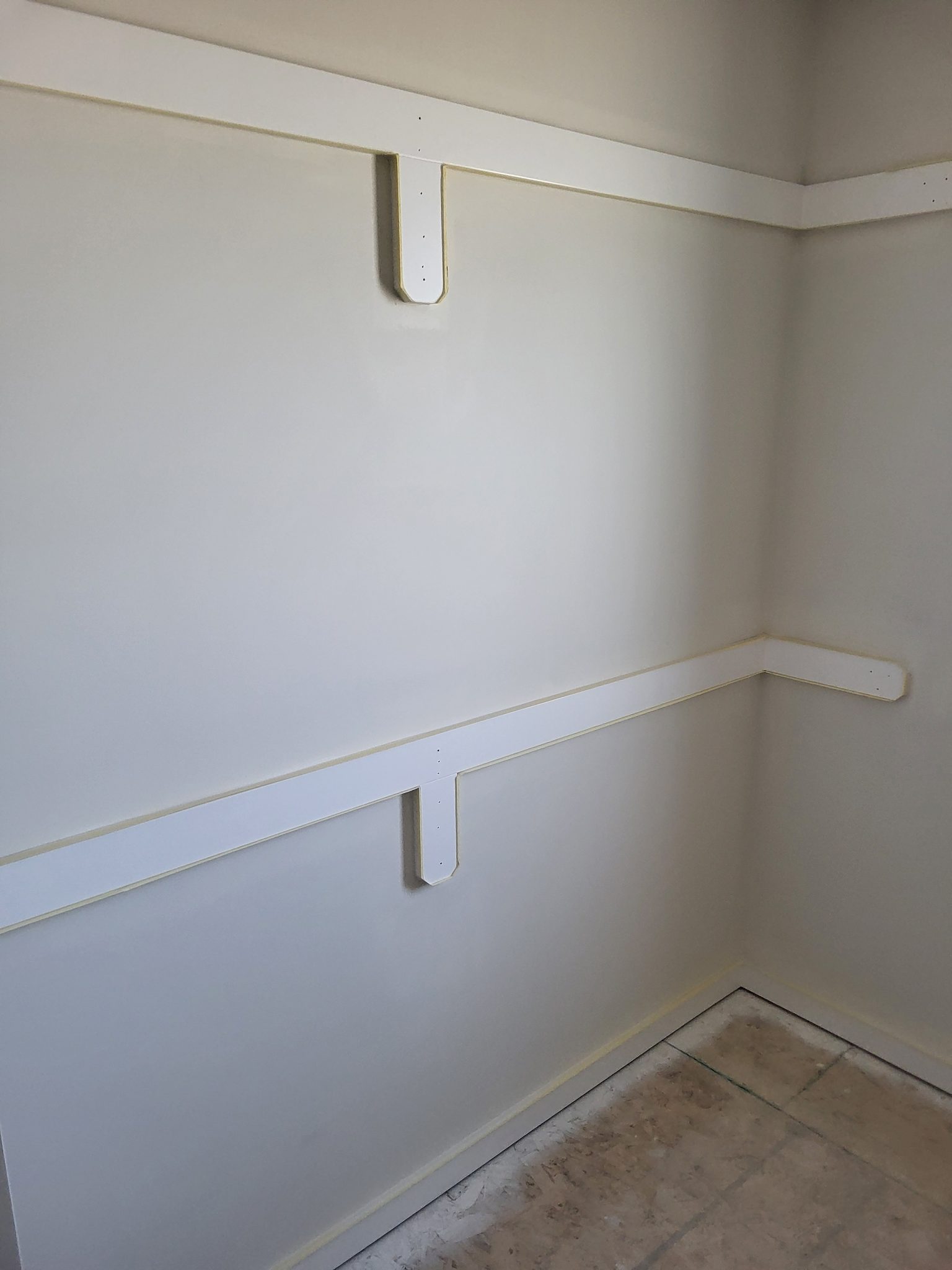

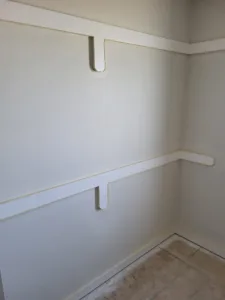

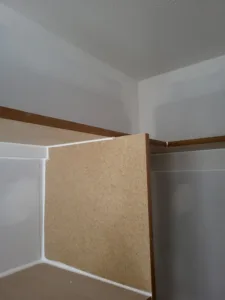

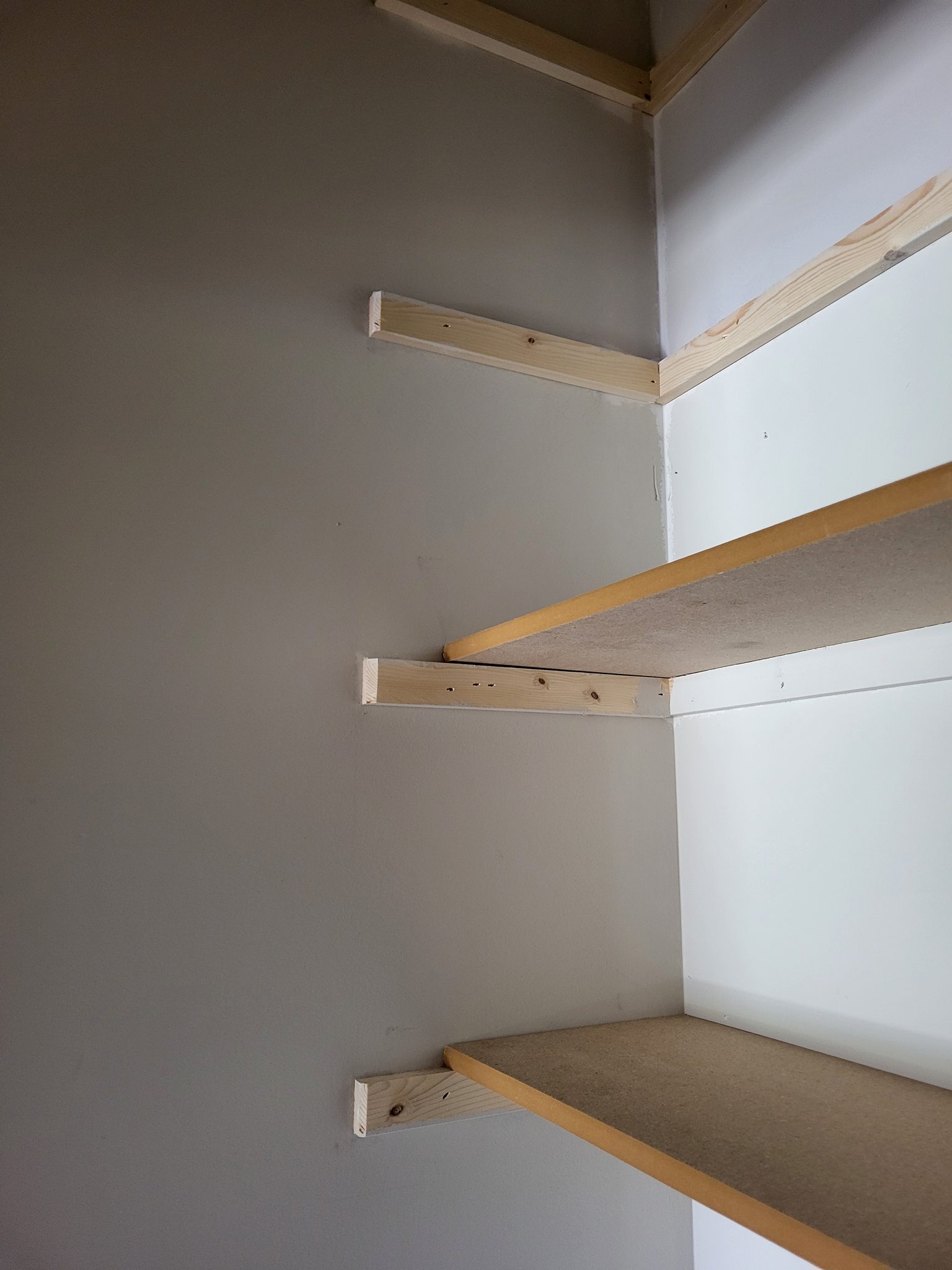

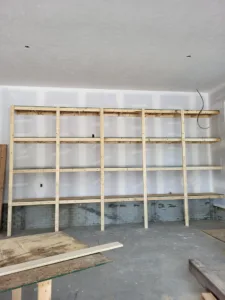

Step 2: Install Cleats #

Cleats are the most critical step when you build closet shelves. Every shelf and rod rests on them, and they carry the full weight of everything stored in the closet. Take your time on this step — a level, well-secured cleat makes everything else easy.

• Cut cleats to length. Measure each wall individually and cut the cleat to fit snugly. Walls in the same closet are often different lengths, so don’t assume the back wall cleat and the side wall cleats are the same. Cut on a miter saw for clean, square ends.
• Nail to studs with 16-gauge 2-1/2″ nails. Position the cleat on your chalk line and drive two nails at every stud location. Two nails per stud prevent the cleat from pivoting. The 2-1/2″ nail passes through the cleat (3/4″), the drywall (1/2″), and sinks 1-1/4″ into the stud — more than enough for a solid connection.
• Level each cleat before nailing off. Hold the cleat on your chalk line, check it with a 4-foot level, then nail one end. Re-check level, then nail the other end. Finally, nail the intermediate studs. If a cleat is off level, pull the nails and reposition — don’t try to shim it or force the shelf to compensate.
• Use 1×4 for rod sections and 1×2 for shelf-only sections. The 1×4 cleat gives you enough width to notch for the closet rod. The 1×2 is sufficient where you’re just supporting a shelf without a rod. Using the narrower cleat in shelf-only areas looks cleaner and uses less material.
• Butt cleats tight into corners. Where a side wall cleat meets the back wall cleat, butt them tightly together so there’s no gap. The shelf will rest across both cleats at the corner, and a gap creates a weak spot where the shelf can deflect. Apply a small bead of wood glue at the joint for extra rigidity.

Pro Tip: When installing cleats in a standard reach-in closet, start with the back wall cleat, then install the two side wall cleats. This way the side cleats butt against the back cleat and you can check that all three are at the same height by laying your level across the corner joints.

Step 3: Cut Shelves to Fit #

With all cleats installed, you’re ready to cut shelves — the next step to build closet shelves that fit perfectly. The key rule here is simple: measure each shelf individually. Walls are never perfectly square or parallel, and a shelf cut to a single measurement will be too long on one end or too short on the other.

• Measure each shelf individually. Measure the wall-to-wall distance at the front of the cleat (where the shelf edge will sit) and at the back wall. If the two measurements differ, use the shorter measurement and subtract 1/8″ for clearance. A shelf that’s too tight will bow or crack the drywall corners.
• Cut particle board with a fine-tooth blade. Use a blade with 60 or more teeth to reduce chipping on the melamine surface. Cut with the finished (white) side facing up on a table saw or facing down on a circular saw — the blade teeth exit on the top of a table saw cut and the bottom of a circular saw cut, so the exit side gets the chipping.
• Test fit before installing. Slide the cut shelf into position on the cleats and check the fit. It should sit flat on all cleats, fit snugly wall-to-wall with a small gap (1/16″ to 1/8″ per side), and not rock or bow. If it’s too tight, trim a little off one end. If it’s too loose, cut a new shelf — a shelf with large gaps looks sloppy.
• Sand cut edges. Run 120-grit sandpaper along all cut edges of the particle board to remove splinters and rough spots. The factory edges are smooth, but your cut edges will be raw particle board. A quick sanding pass takes 15 seconds and makes the shelf safe to handle.

Pro Tip: Score the melamine surface along your cut line with a utility knife before sawing. This breaks the melamine coating cleanly and dramatically reduces chipping, even with a standard blade. Score both sides if you’re cutting on a table saw.

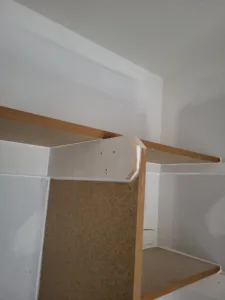

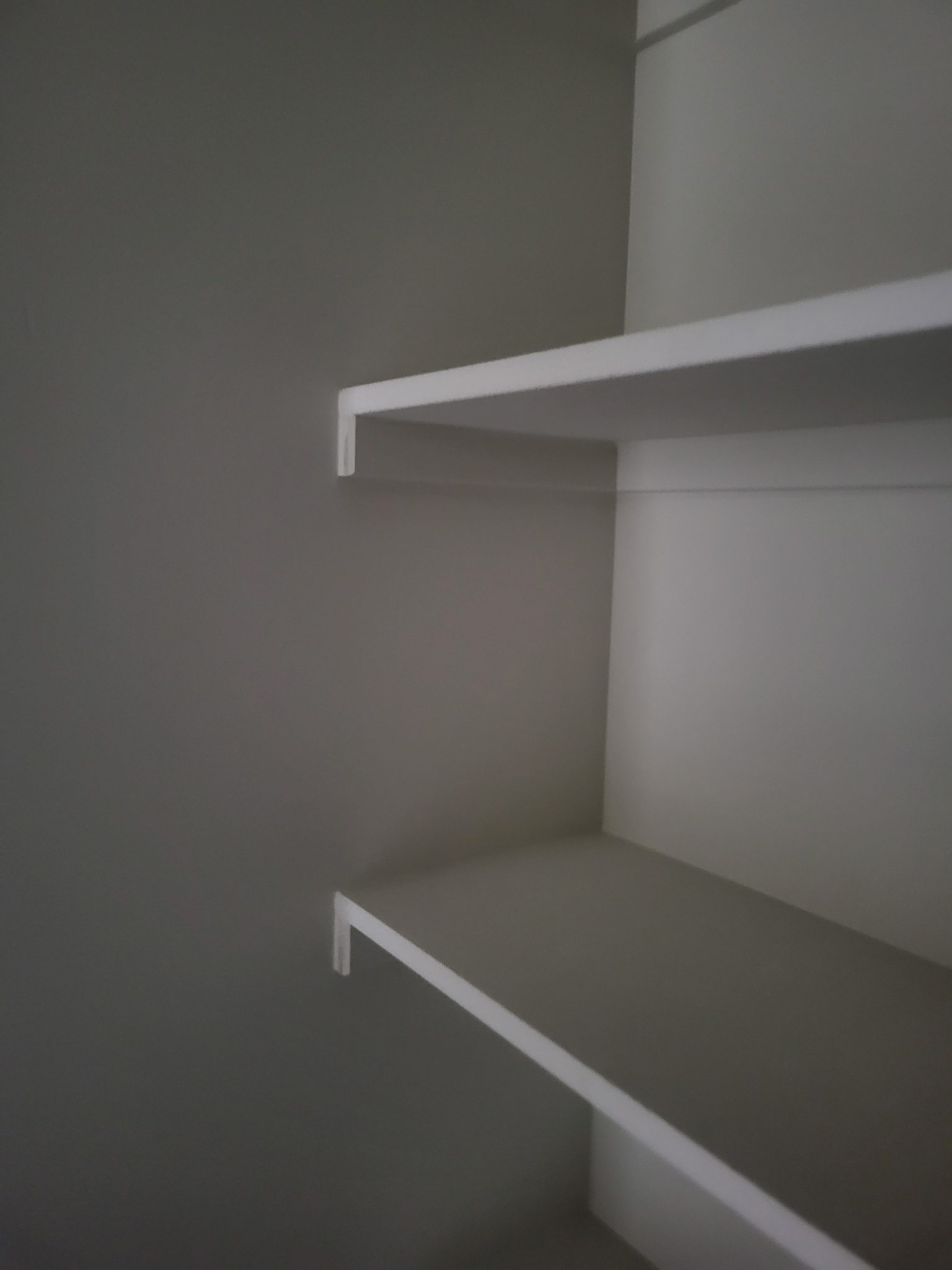

Step 4: Install Shelves #

Setting shelves is the fastest part of the process when you build closet shelves with level cleats and accurately cut material. This is where all the prep work pays off.

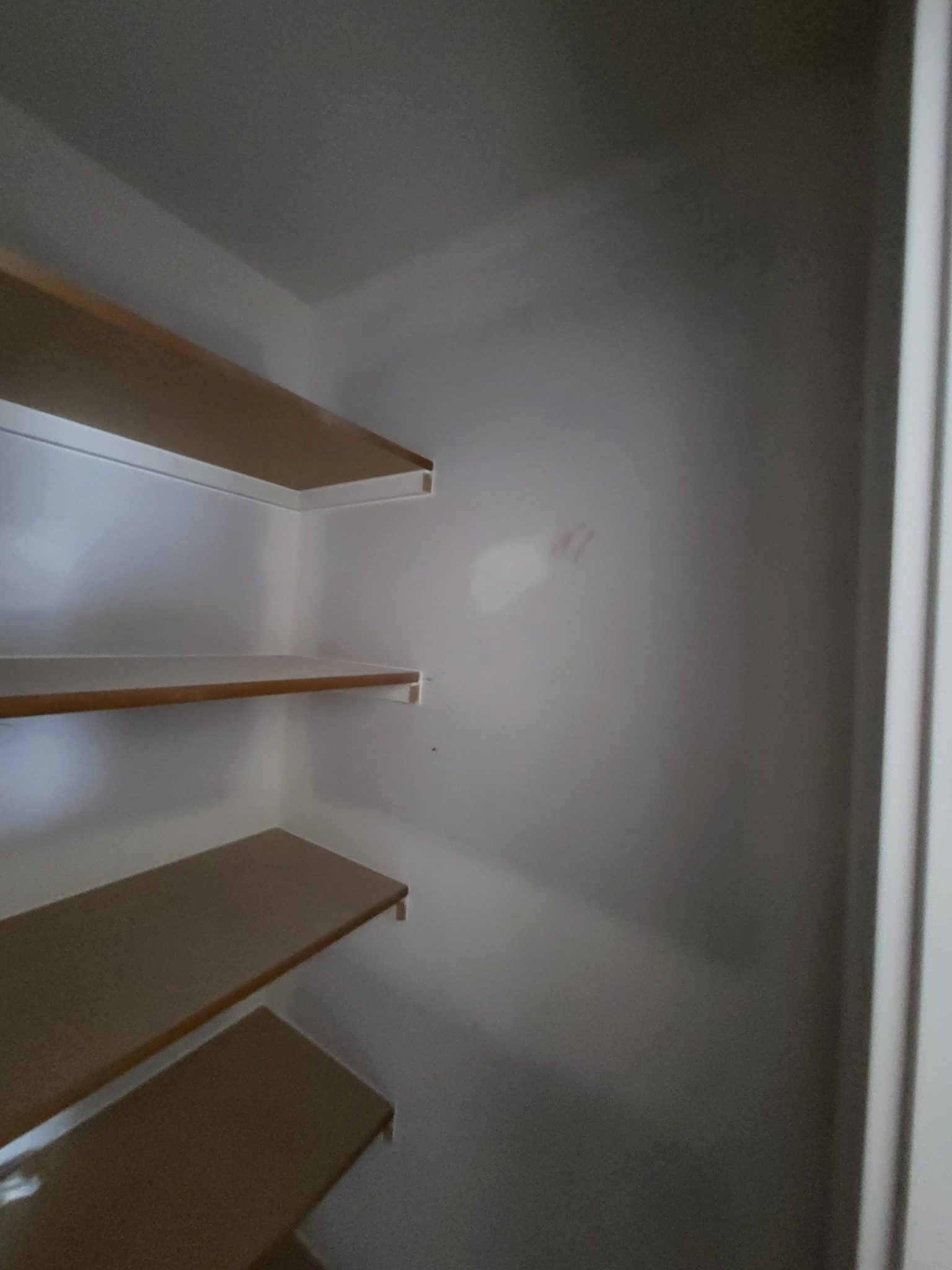

• Set shelves on cleats. Slide each shelf into position, resting it on the cleats on all three walls (back and both sides). Push the shelf back until it contacts the back wall. The front edge should be flush with or slightly behind the front face of the cleats.
• Nail or leave loose depending on preference. Some builders nail every shelf down; others leave them sitting on the cleats so homeowners can remove them for cleaning or adjustment. Check with your superintendent or the builder’s standard practice. In production work, nailing is more common because it prevents shelves from shifting during the rest of construction.
• Nail with 18-gauge 1-3/4″ nails if securing. Drive two to three brad nails through the top of the shelf into each cleat. Angle the nails slightly to grab the cleat better. Don’t over-nail — the shelf is resting on the cleats by gravity, and the nails are just preventing lateral movement.
• Check for level after setting. Even if your cleats were level, confirm that the installed shelf is level front-to-back and side-to-side. If a shelf rocks, check for debris on the cleat or a high spot on the shelf edge. Don’t force it — find and fix the problem.

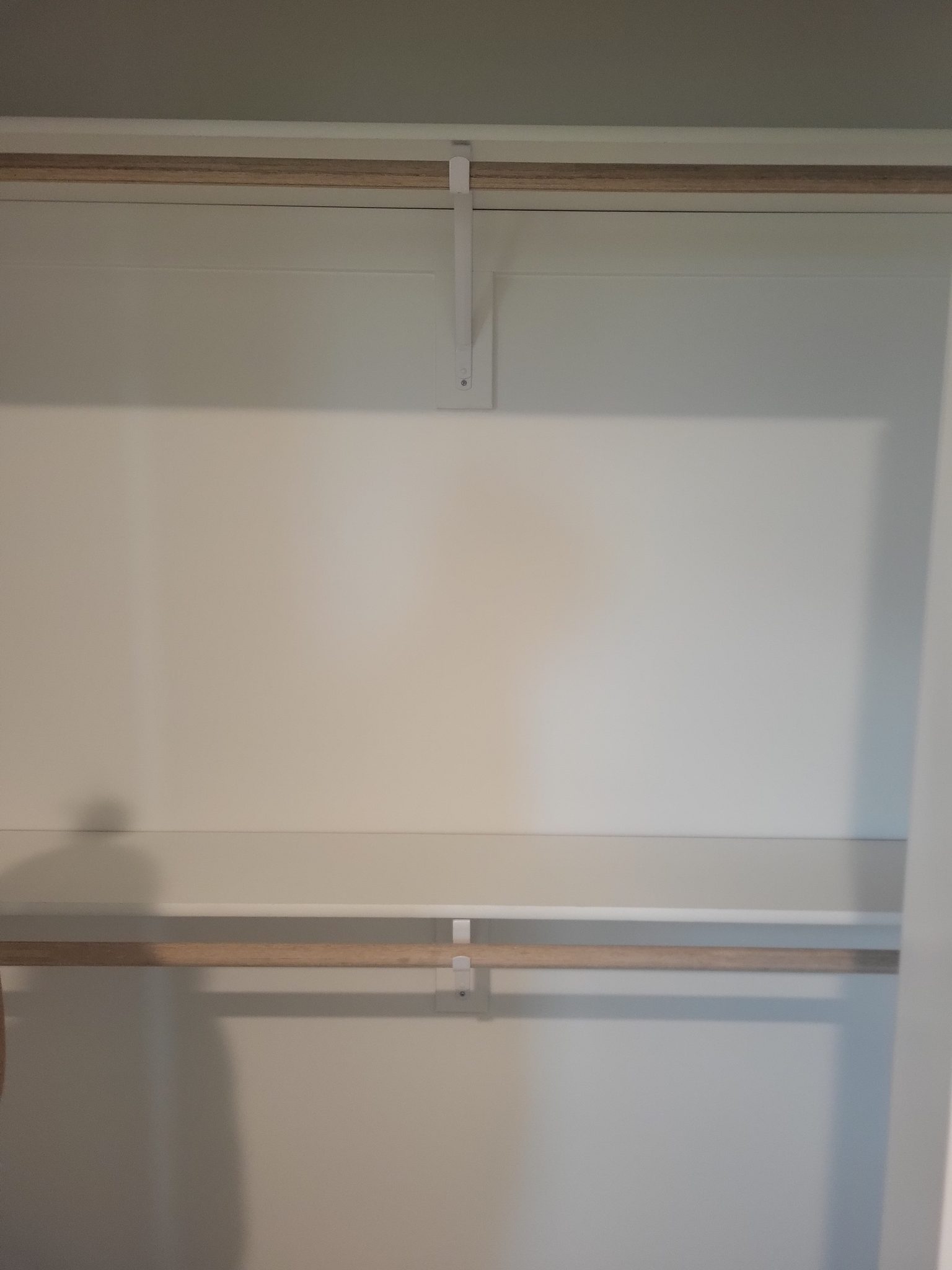

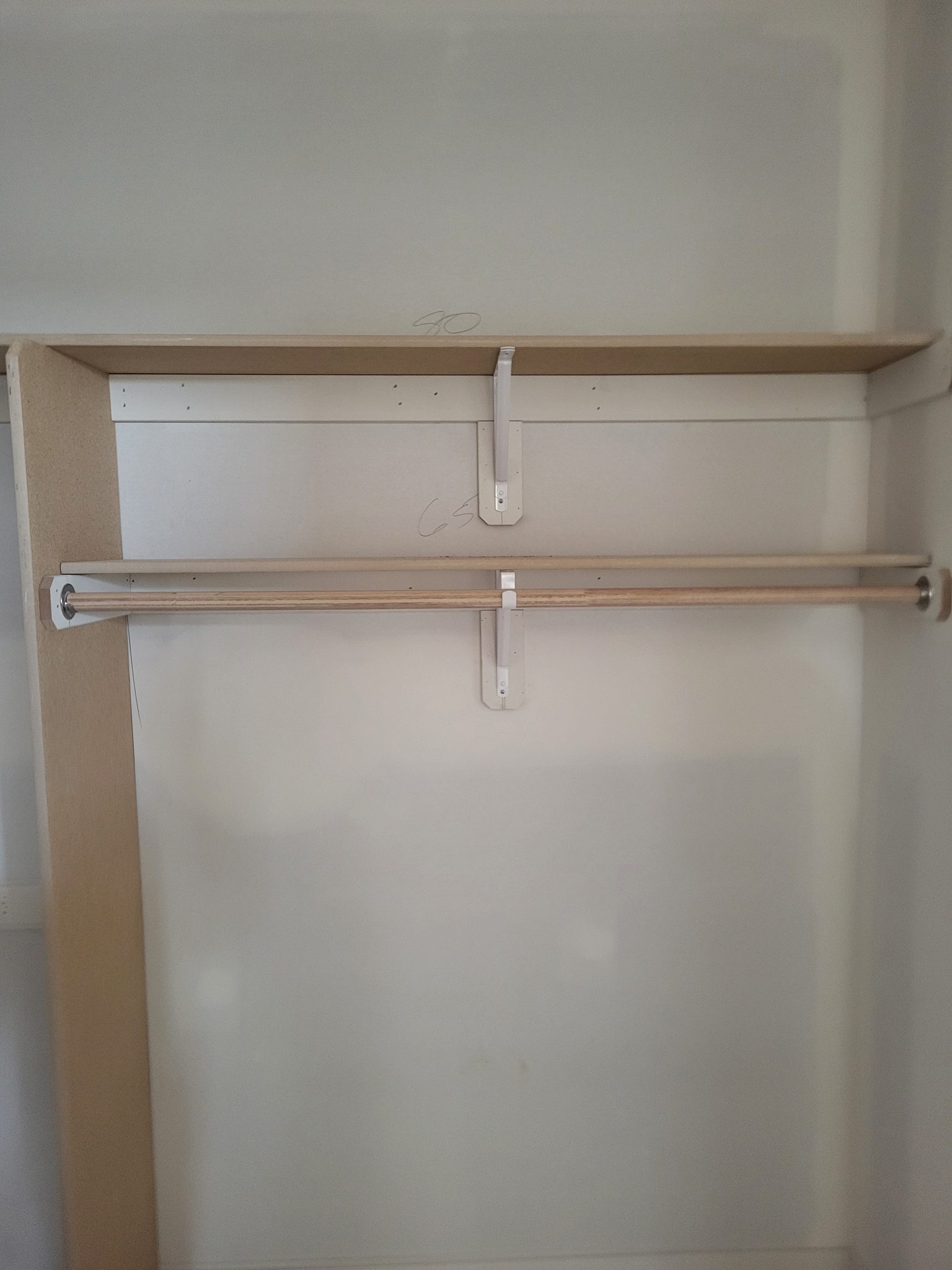

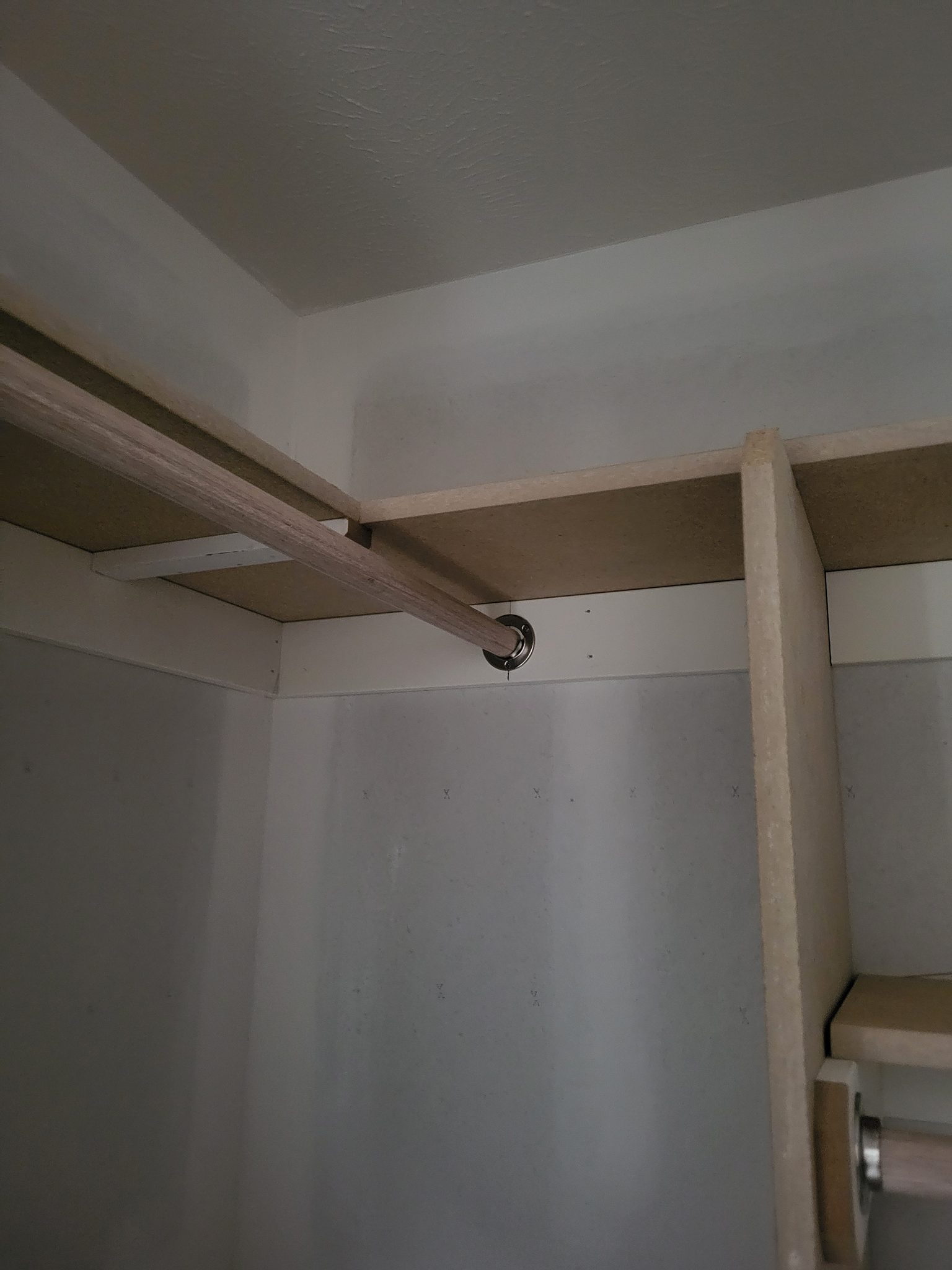

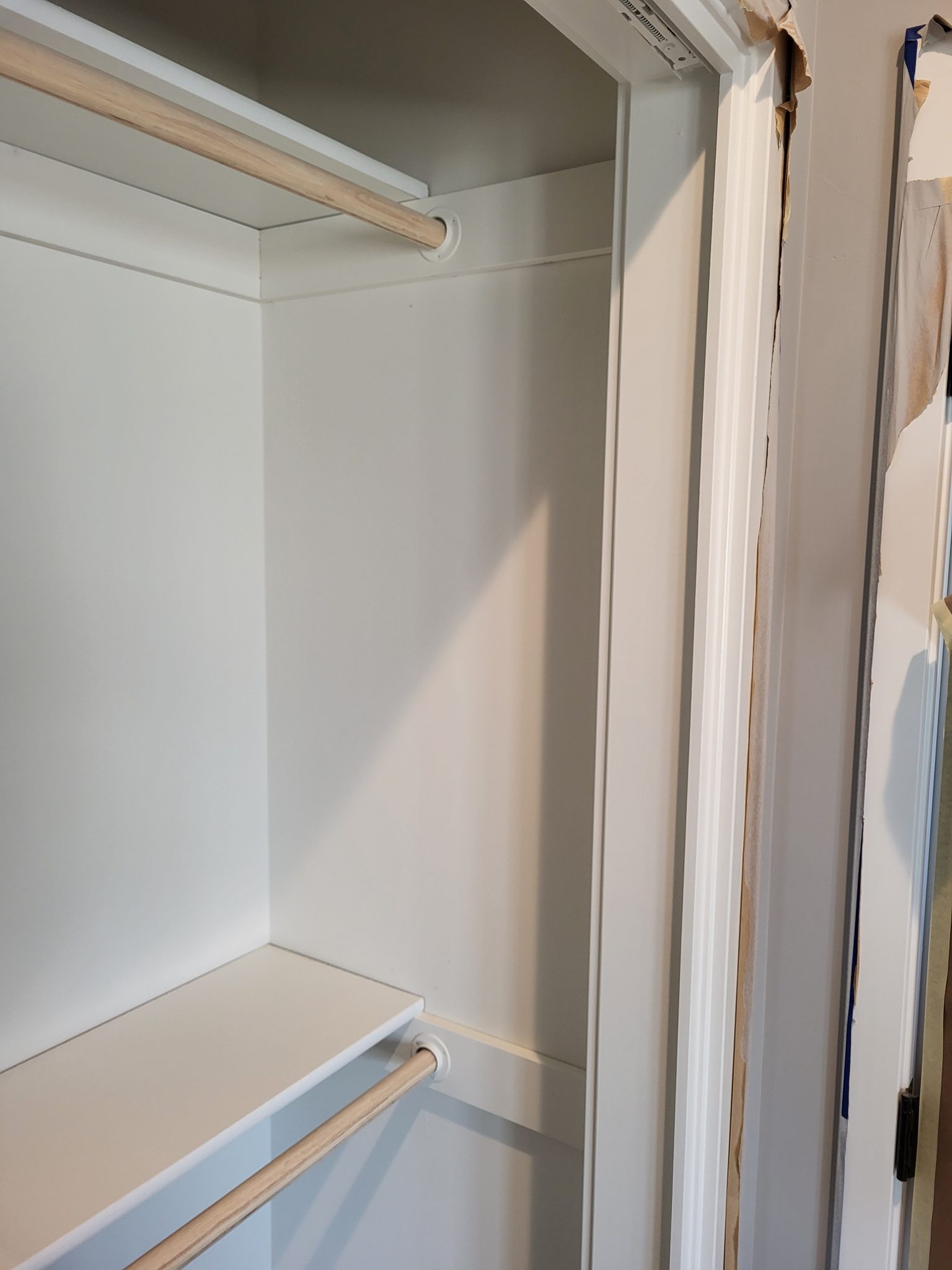

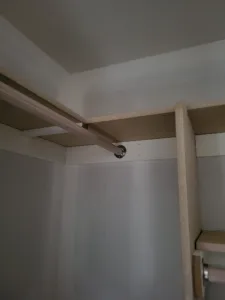

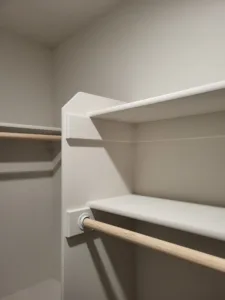

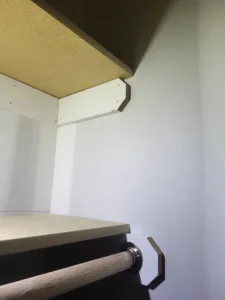

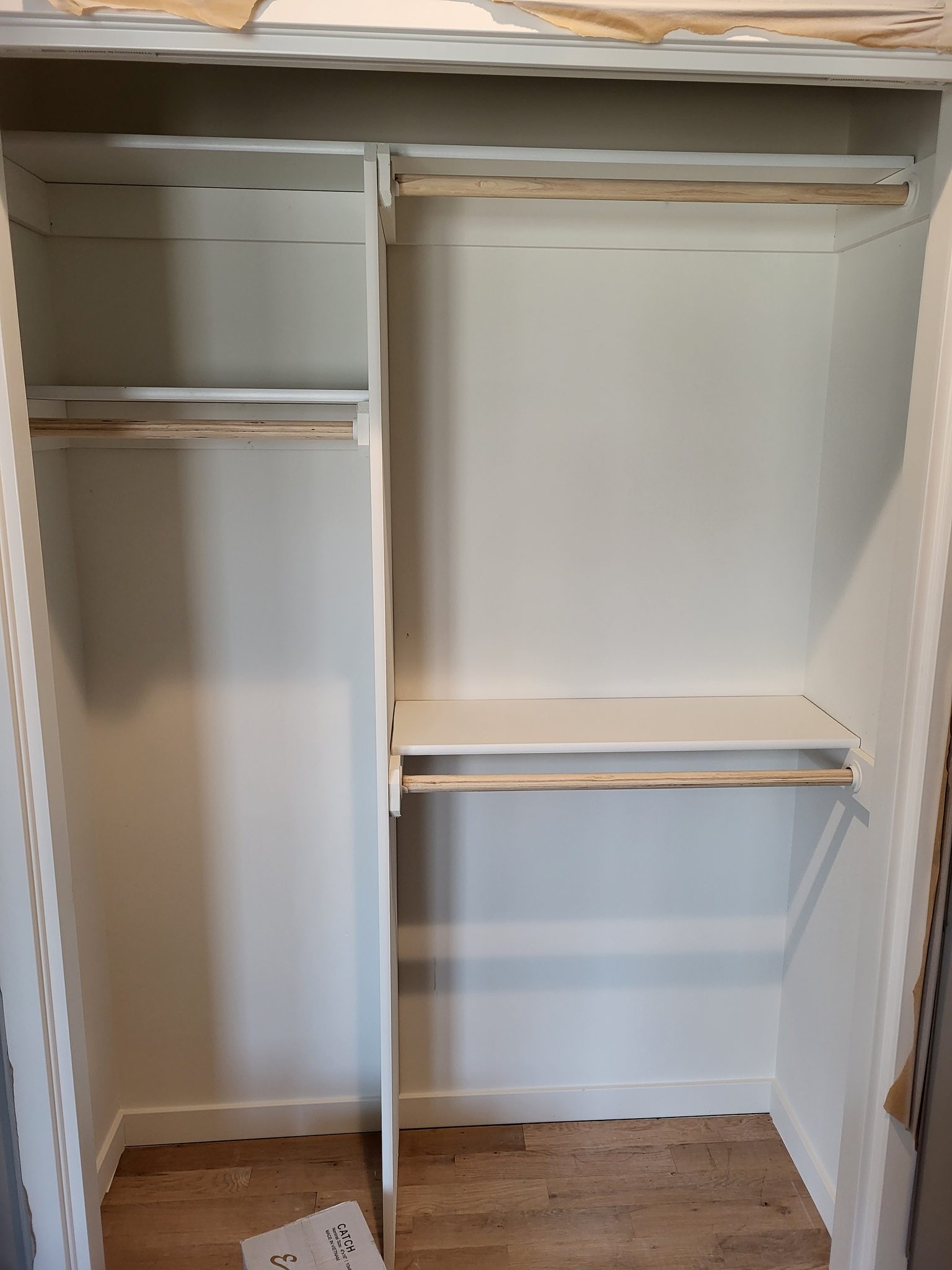

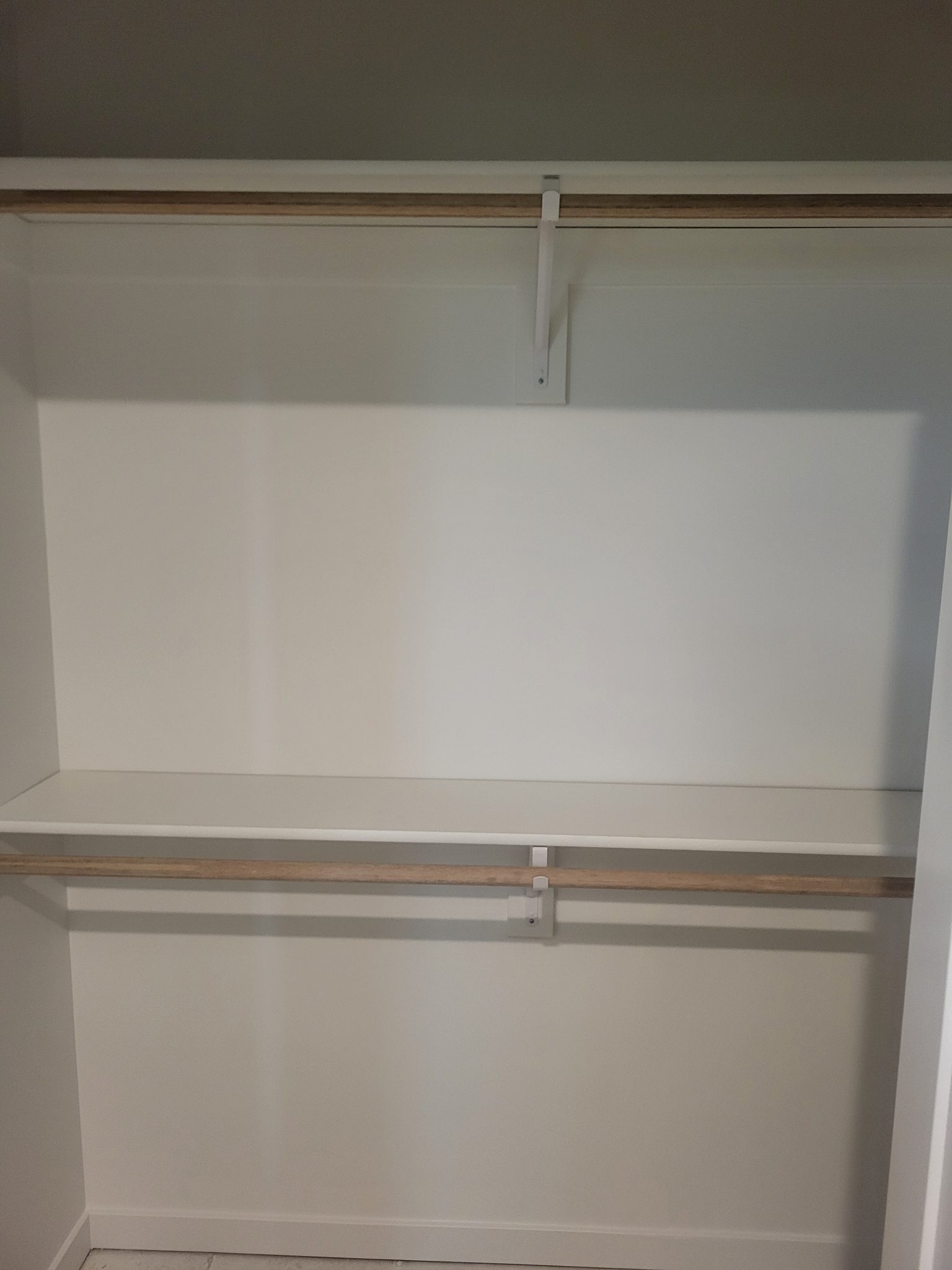

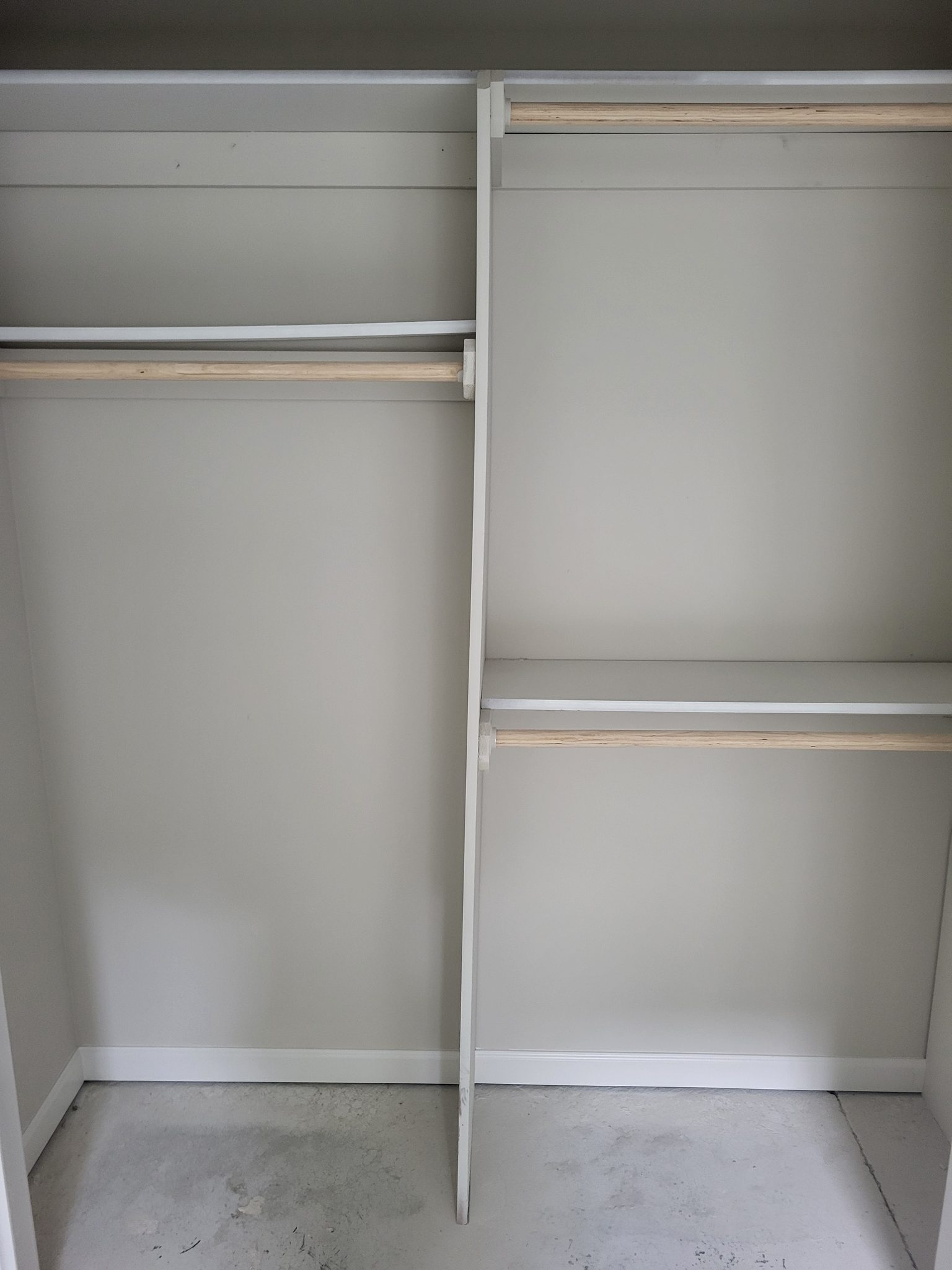

Step 5: Install Rods #

When you build closet shelves, the rods are the final functional element. A properly installed rod sits at the right height, the right distance from the back wall, and is fully supported across its span.

• Cut rods 1/16″ short of wall-to-wall measurement. Measure the wall-to-wall distance where the rod will sit and subtract 1/16″. This gives you enough clearance to angle the rod into position while keeping it snug. A rod that’s too long won’t fit; a rod that’s too short will fall out of its supports.

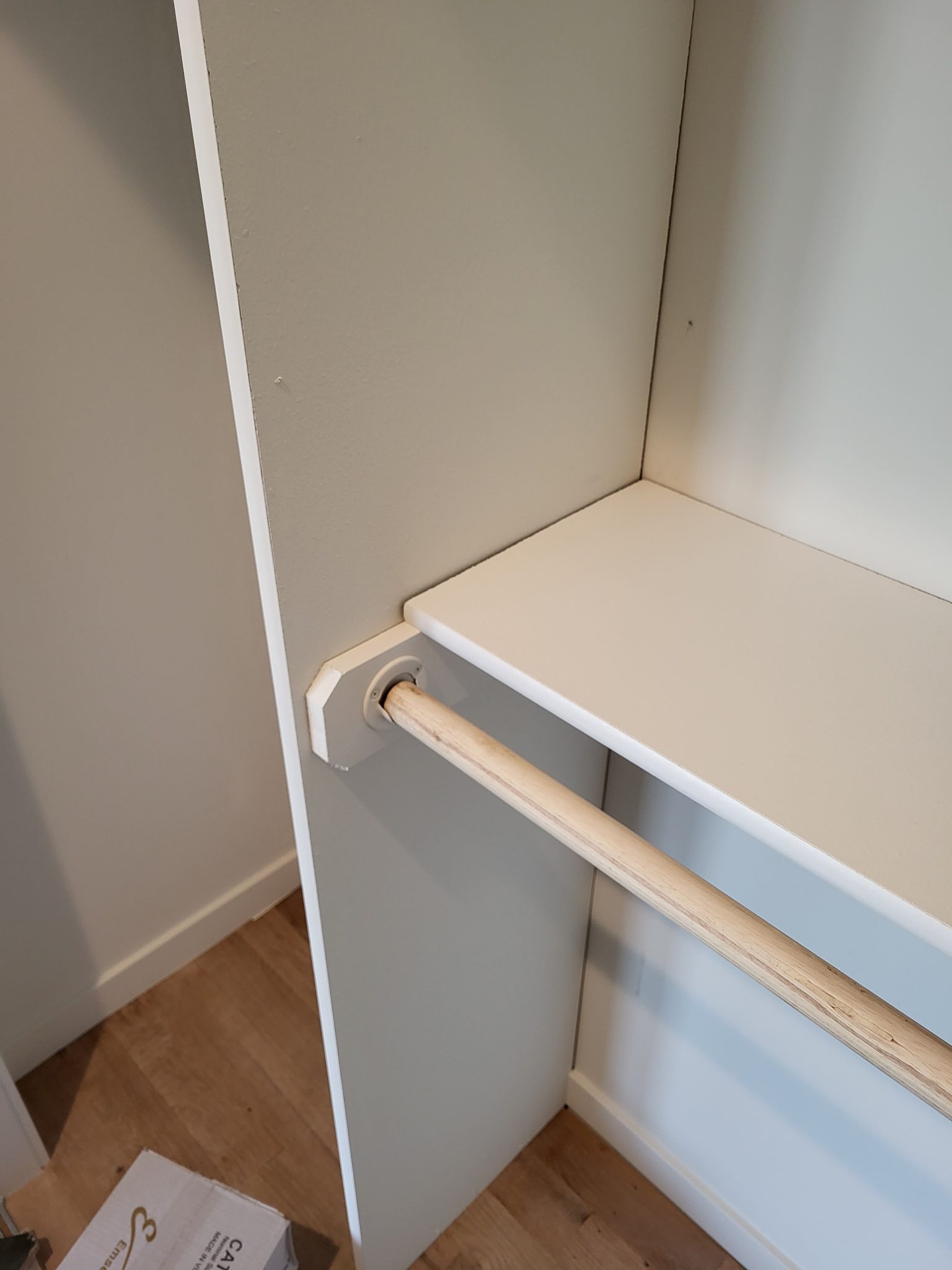

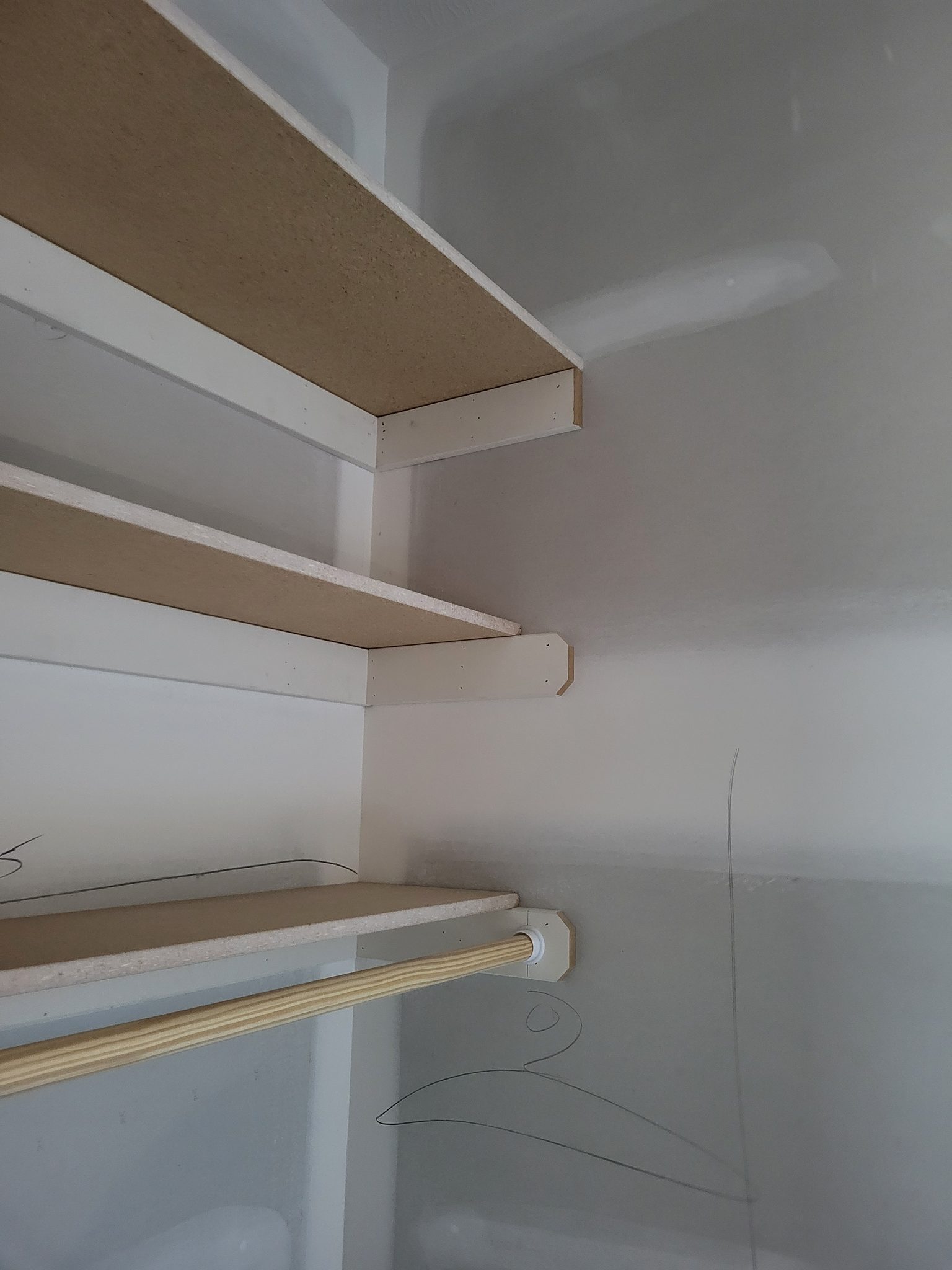

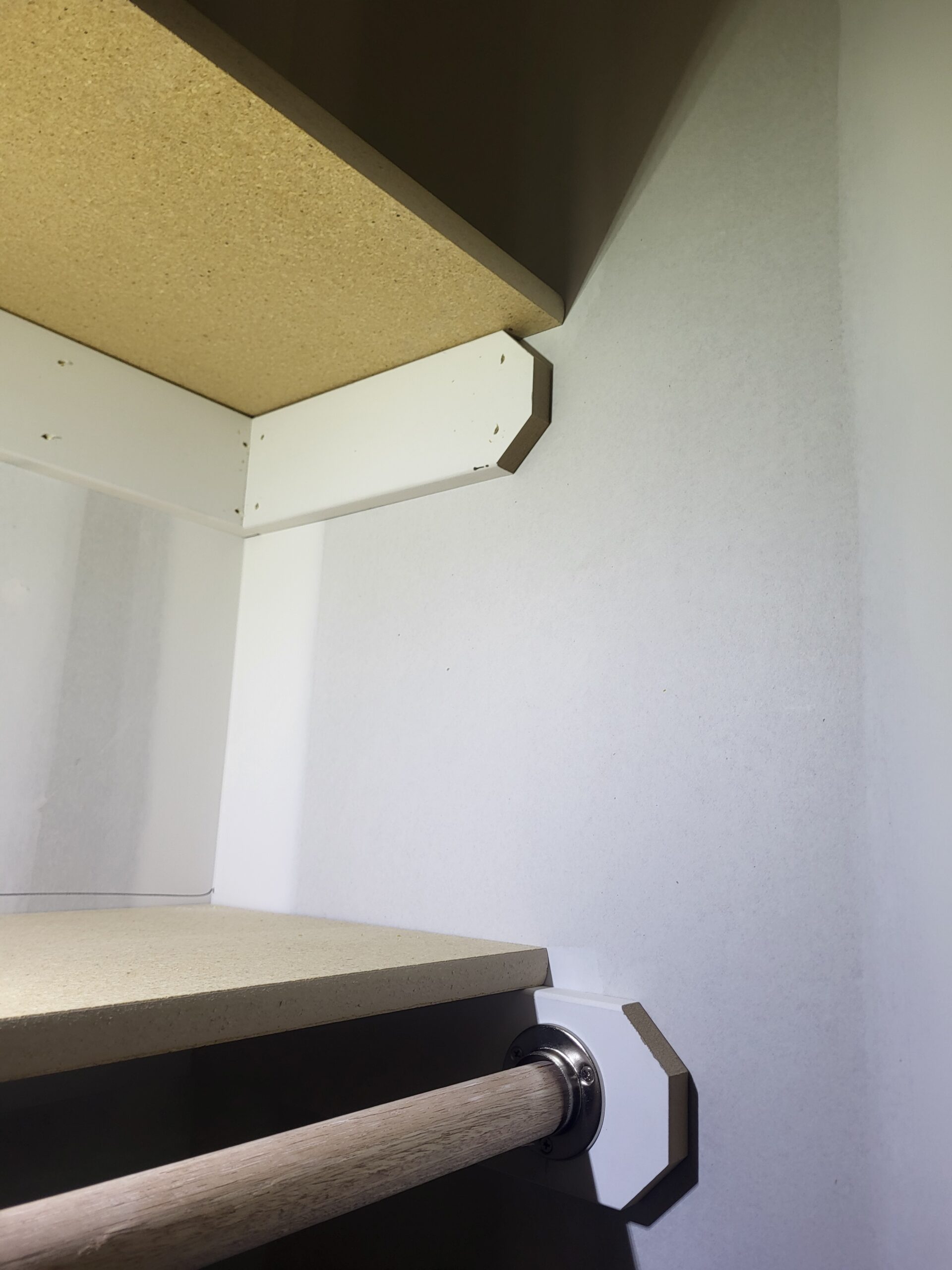

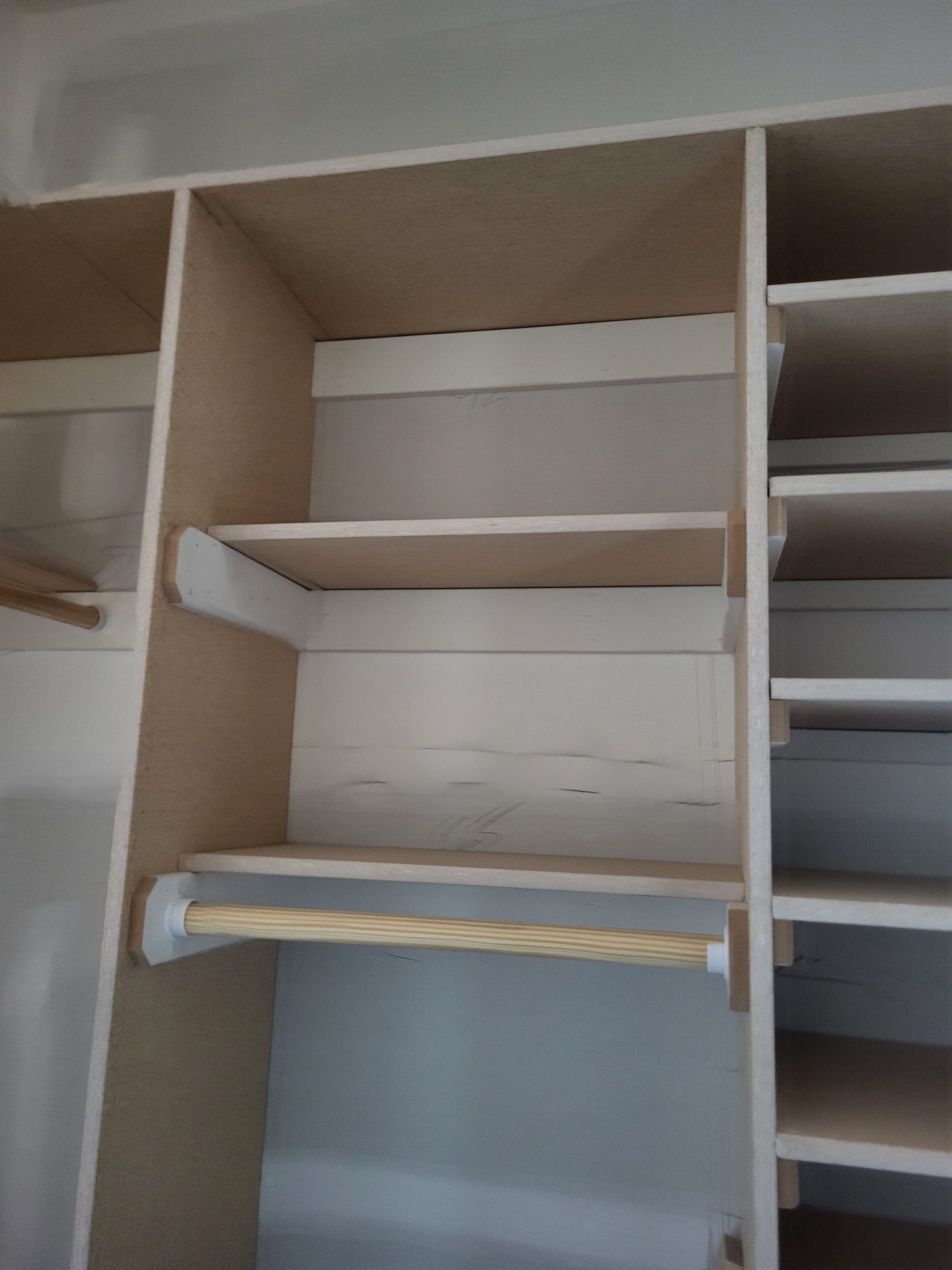

• Notch cleats or use rod cups. If you’re using 1×4 cleats, notch a half-round into the top of each side cleat to cradle the rod. Use a drill with a 1-1/4″ Forstner bit or spade bit to create the notch, then chisel out the front half so the rod drops in. Alternatively, screw pre-made rod cups to the side walls at the correct height.
• Rod should be 10-12″ out from the back wall. This distance provides enough clearance for standard hangers to hang freely without the clothes pressing against the back wall. Measure from the back wall to the center of the rod. If the rod is too close to the wall, hangers will tilt; too far out, and the shelf above won’t fully cover the rod.
• Test the rod under pressure. After installing, press down firmly on the center of the rod to simulate a full load of hanging clothes. The rod should not flex more than 1/4″ and should feel solid in its supports. If it flexes excessively, the span is too long and needs a center support bracket.

Pro Tip: When notching 1×4 cleats for the rod, notch the cleats before installing them on the wall — it’s much easier to notch on a workbench or sawhorse than while the cleat is nailed to the wall at head height. Mark the notch location from your layout plan, drill, chisel, and test-fit the rod in the notch before installation.

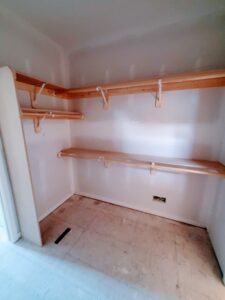

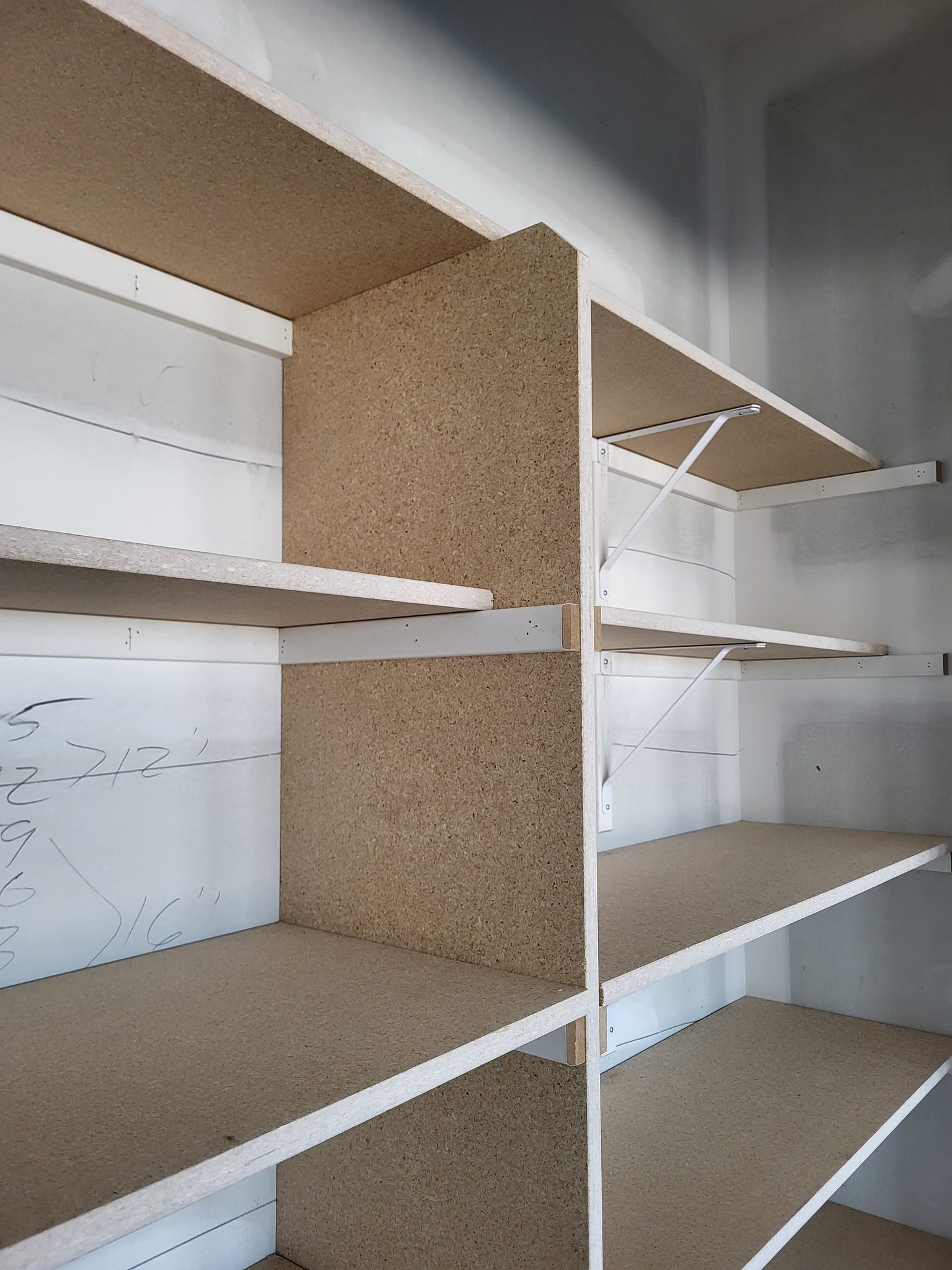

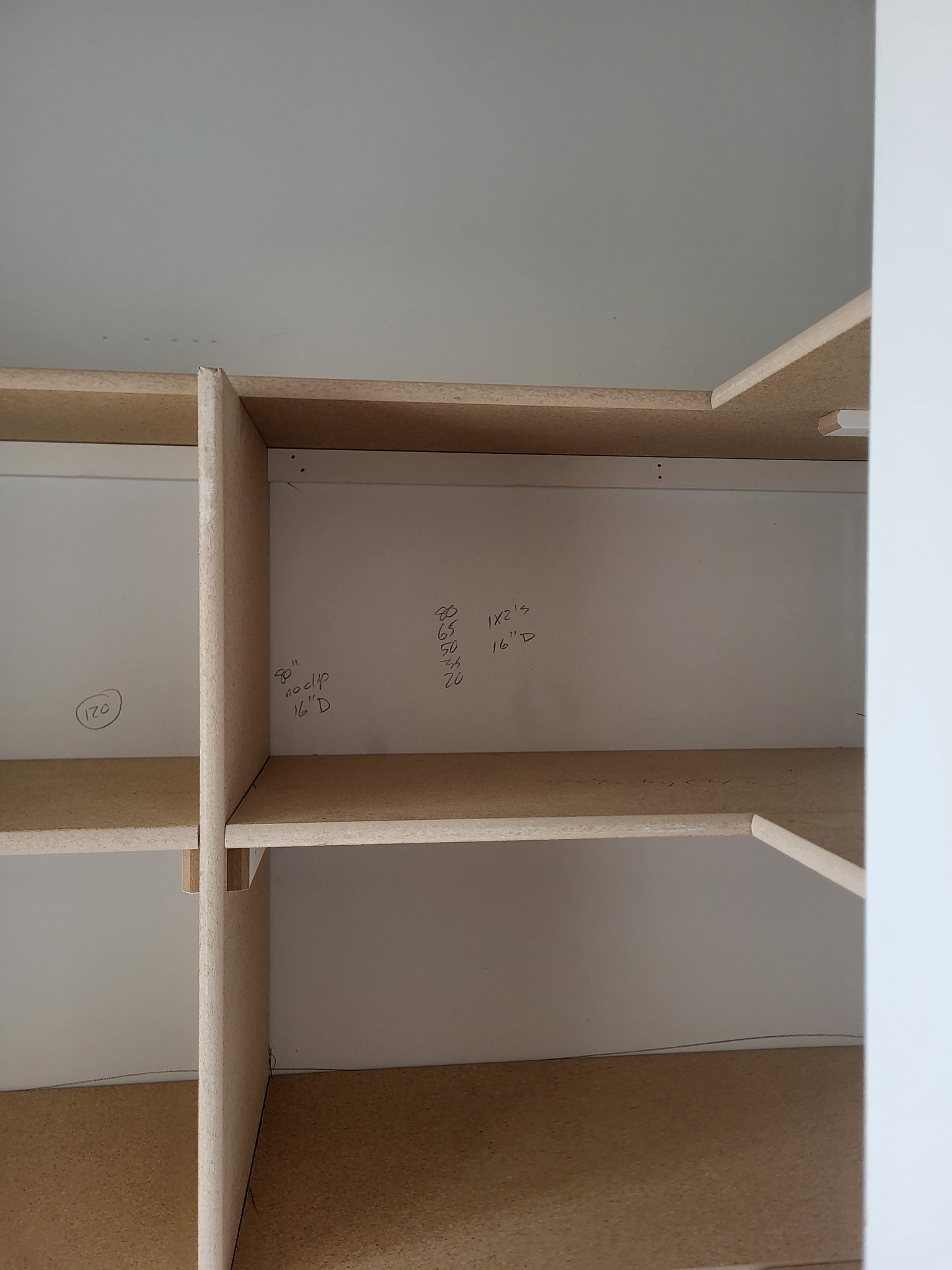

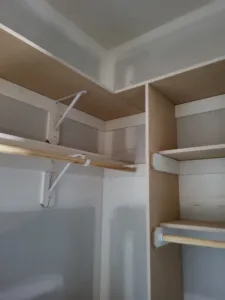

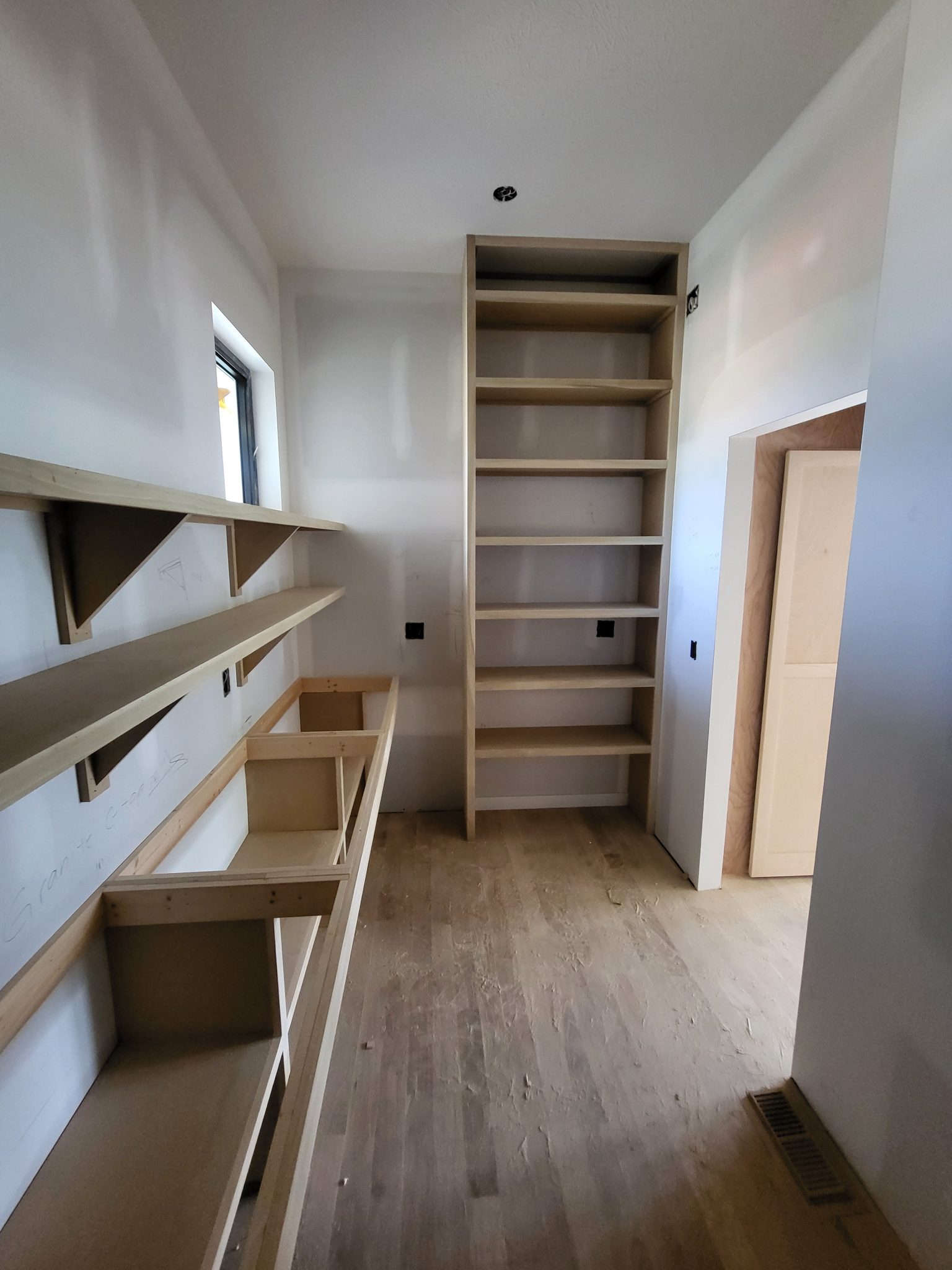

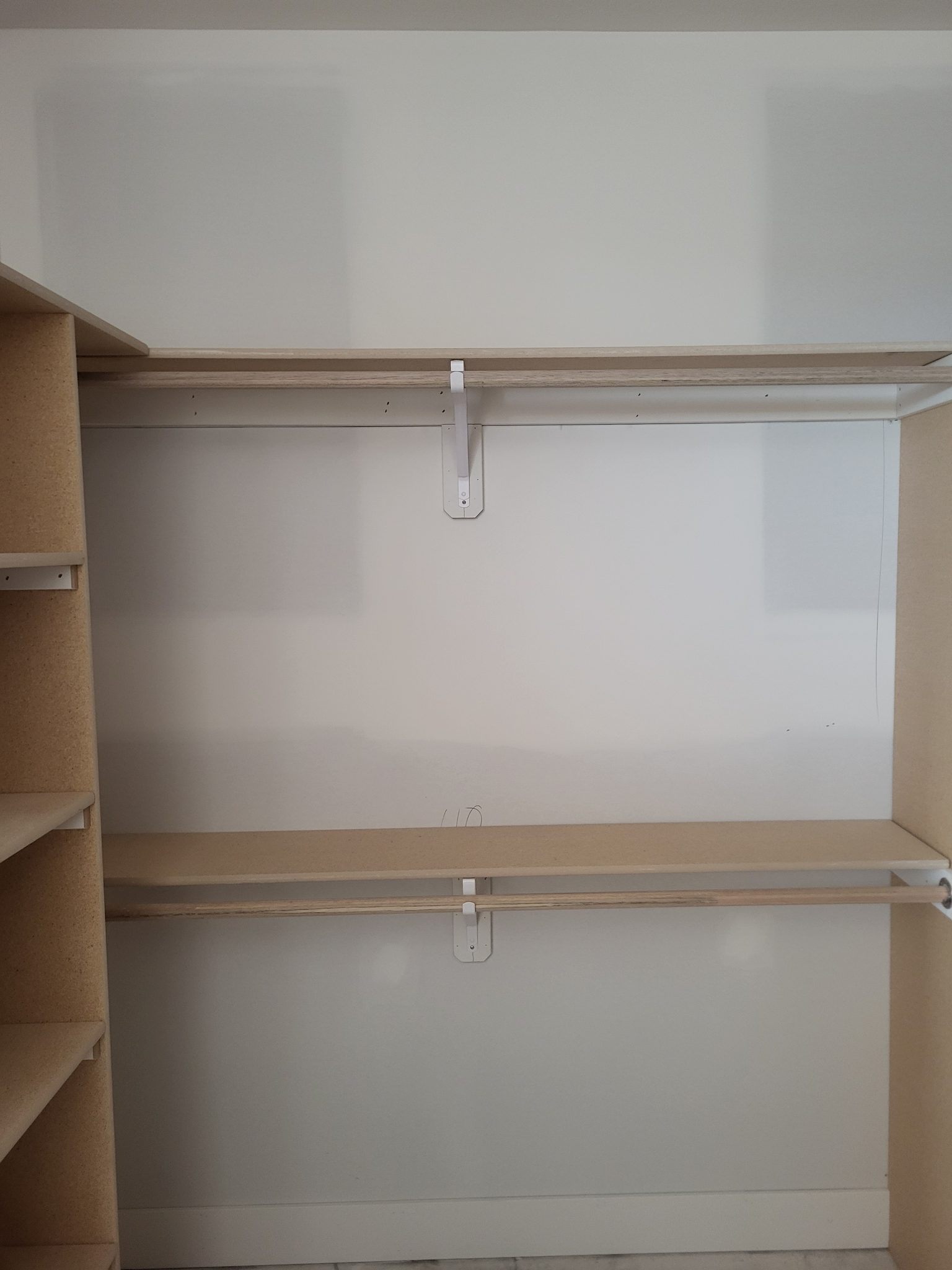

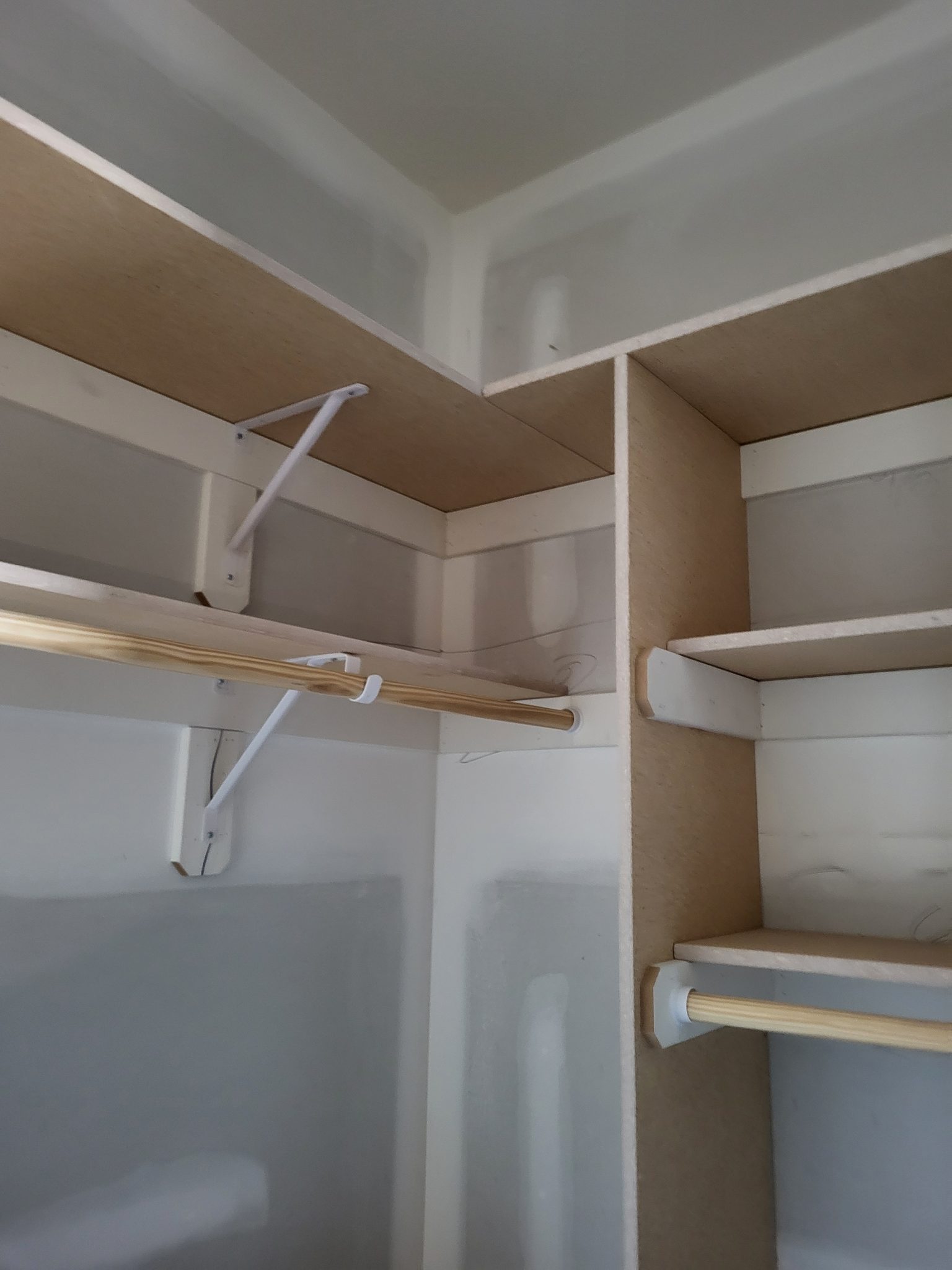

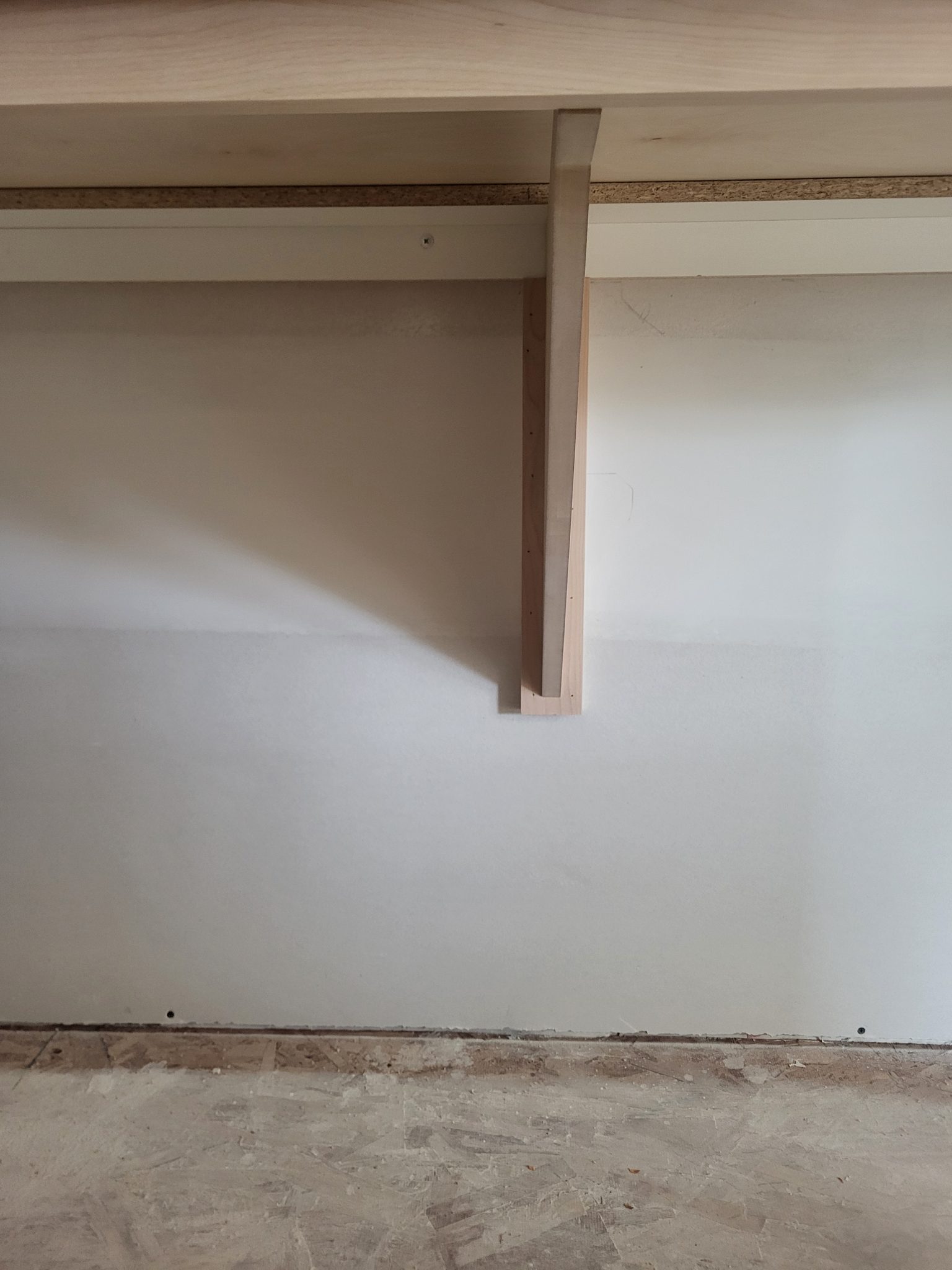

Step 6: Install Support Brackets #

Any time you build closet shelves with a span over 36″, add a center support to prevent sagging. Particle board is not a strong material — it deflects under sustained load, and once it sags, it doesn’t recover.

• Center supports for any span over 36″. Measure the span and place the support at the midpoint. For a 48″ span, the support goes at 24″ from each wall. For a 60″ span, consider two supports at the one-third points (20″ from each end).

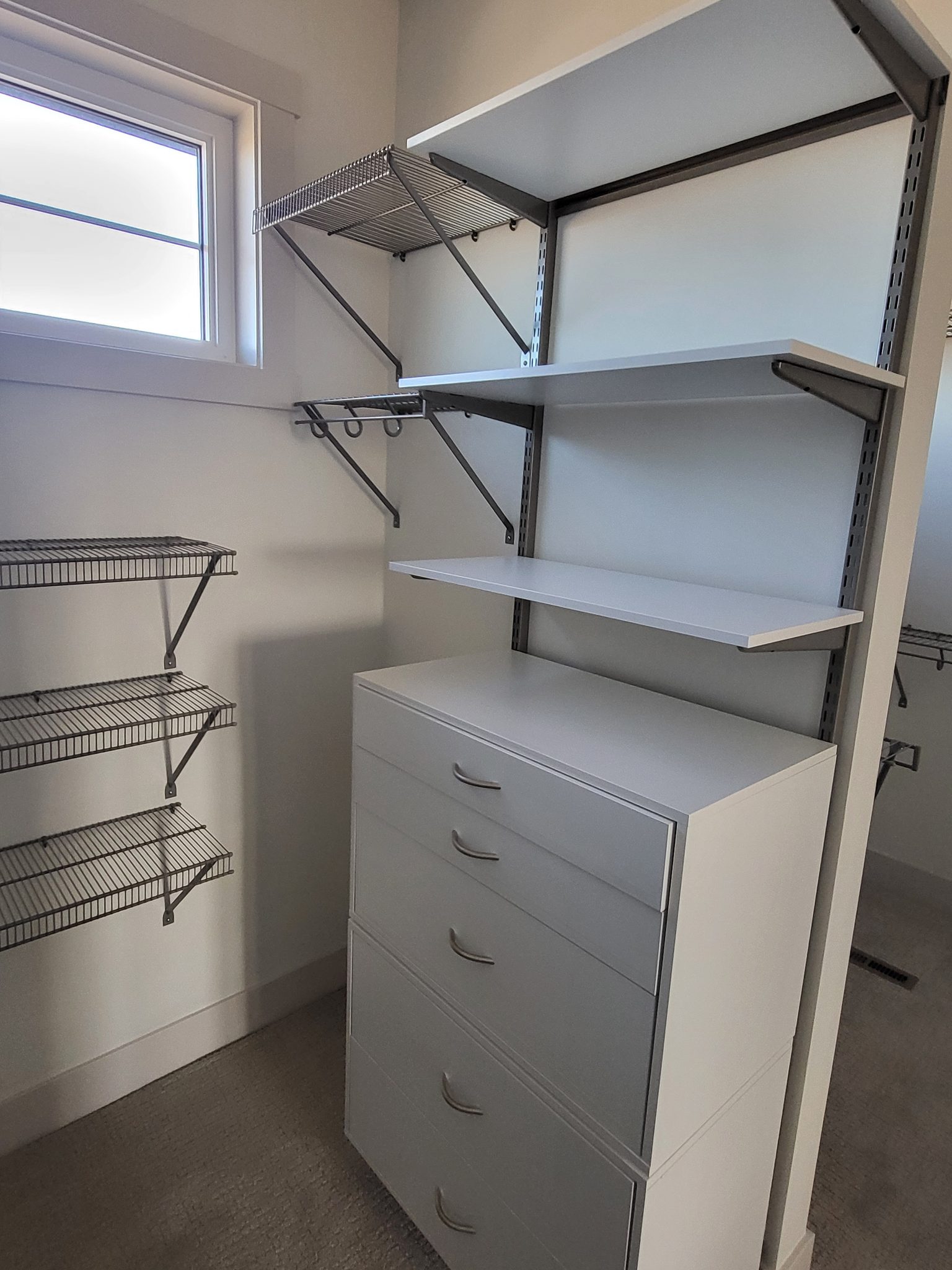

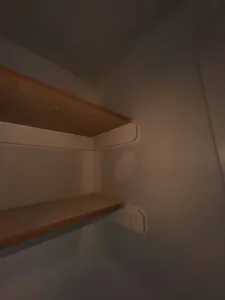

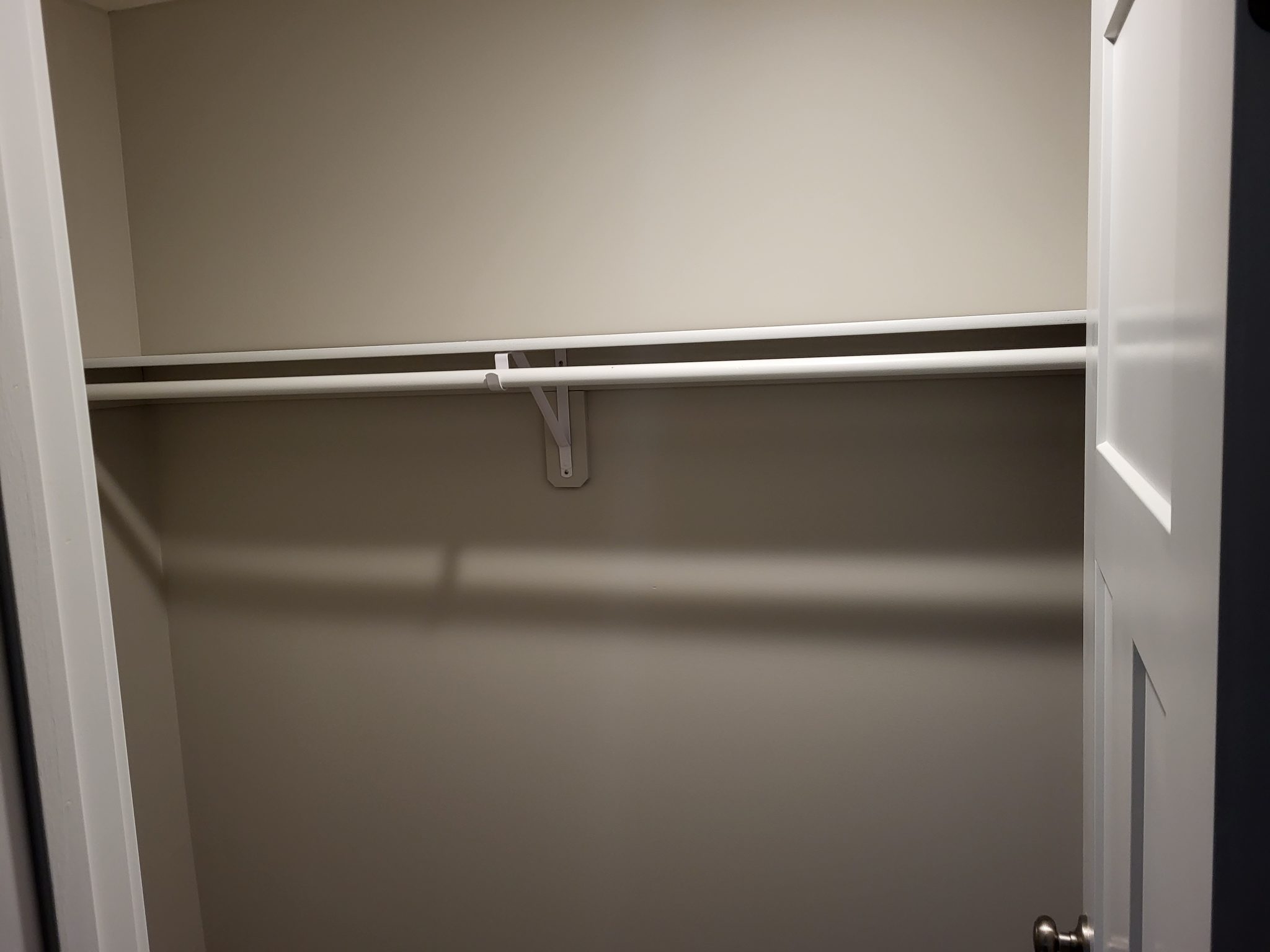

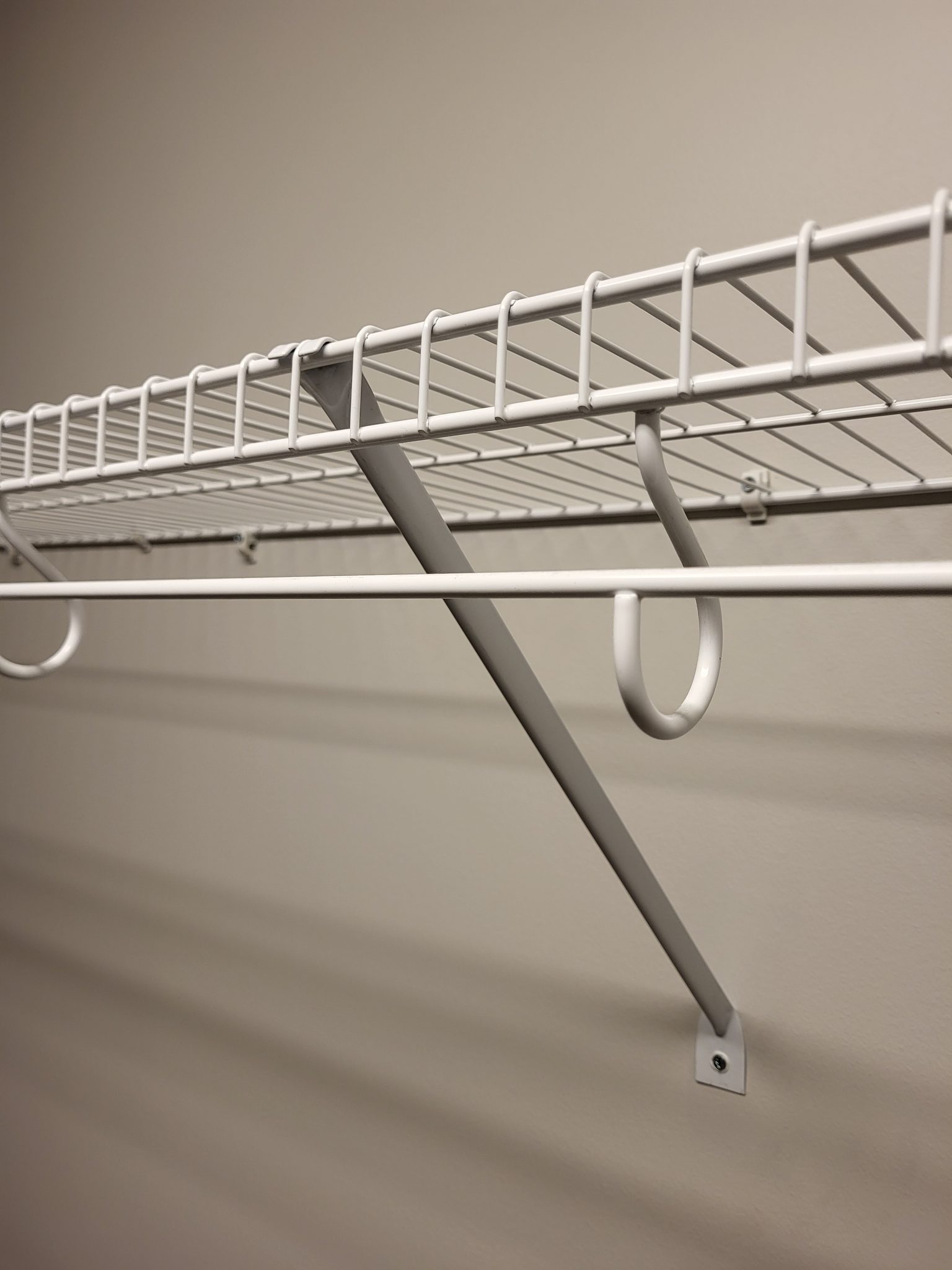

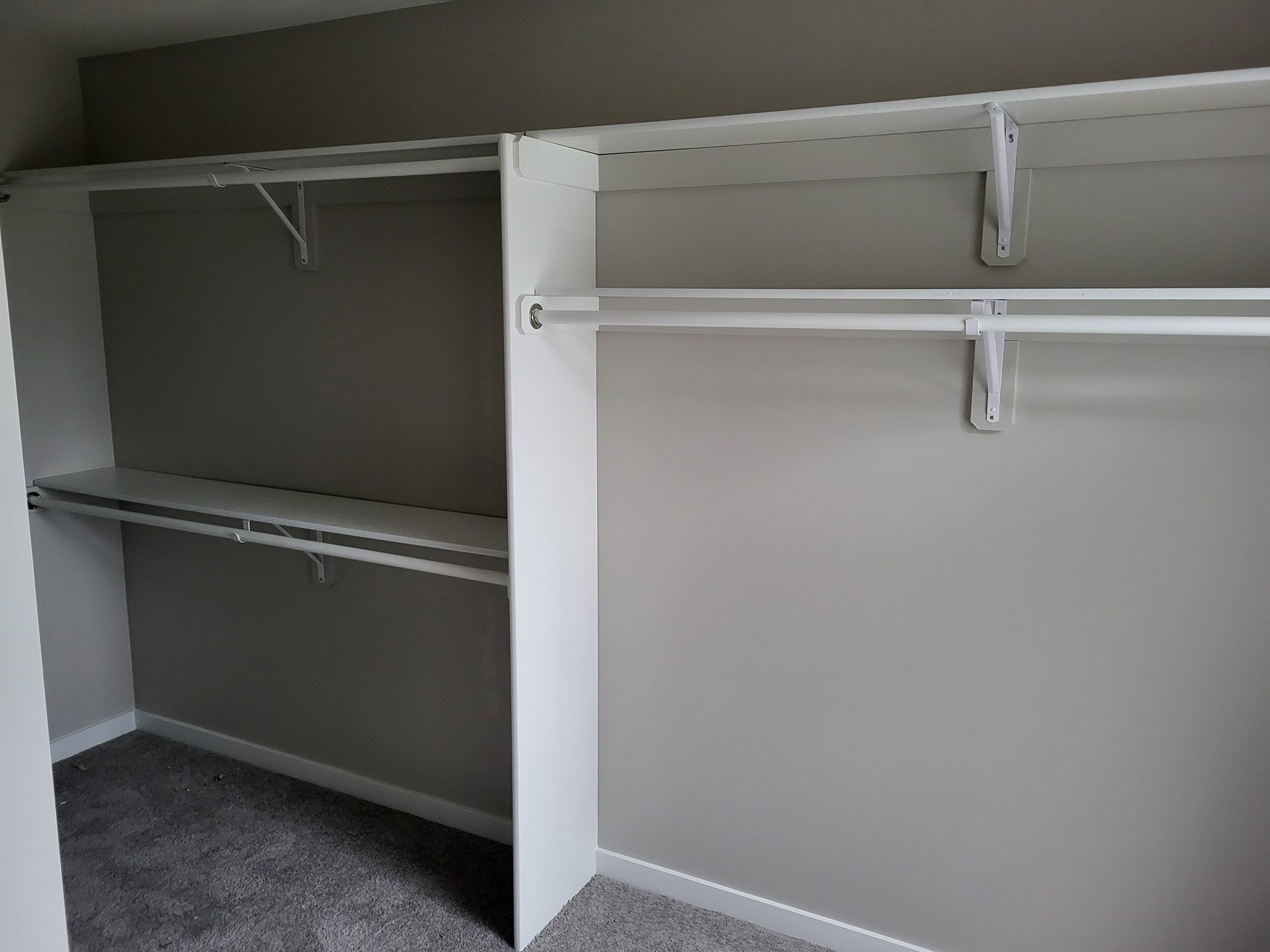

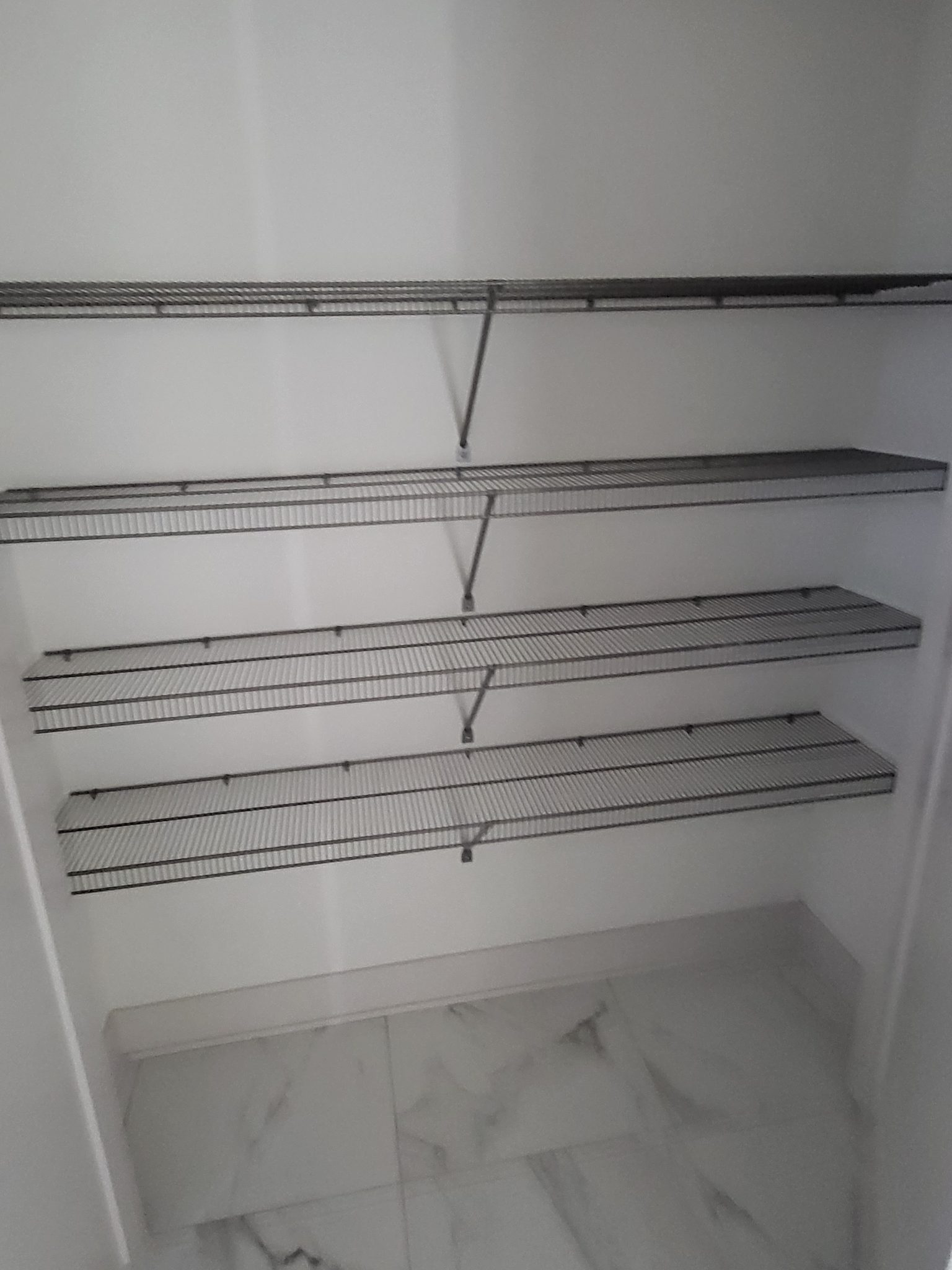

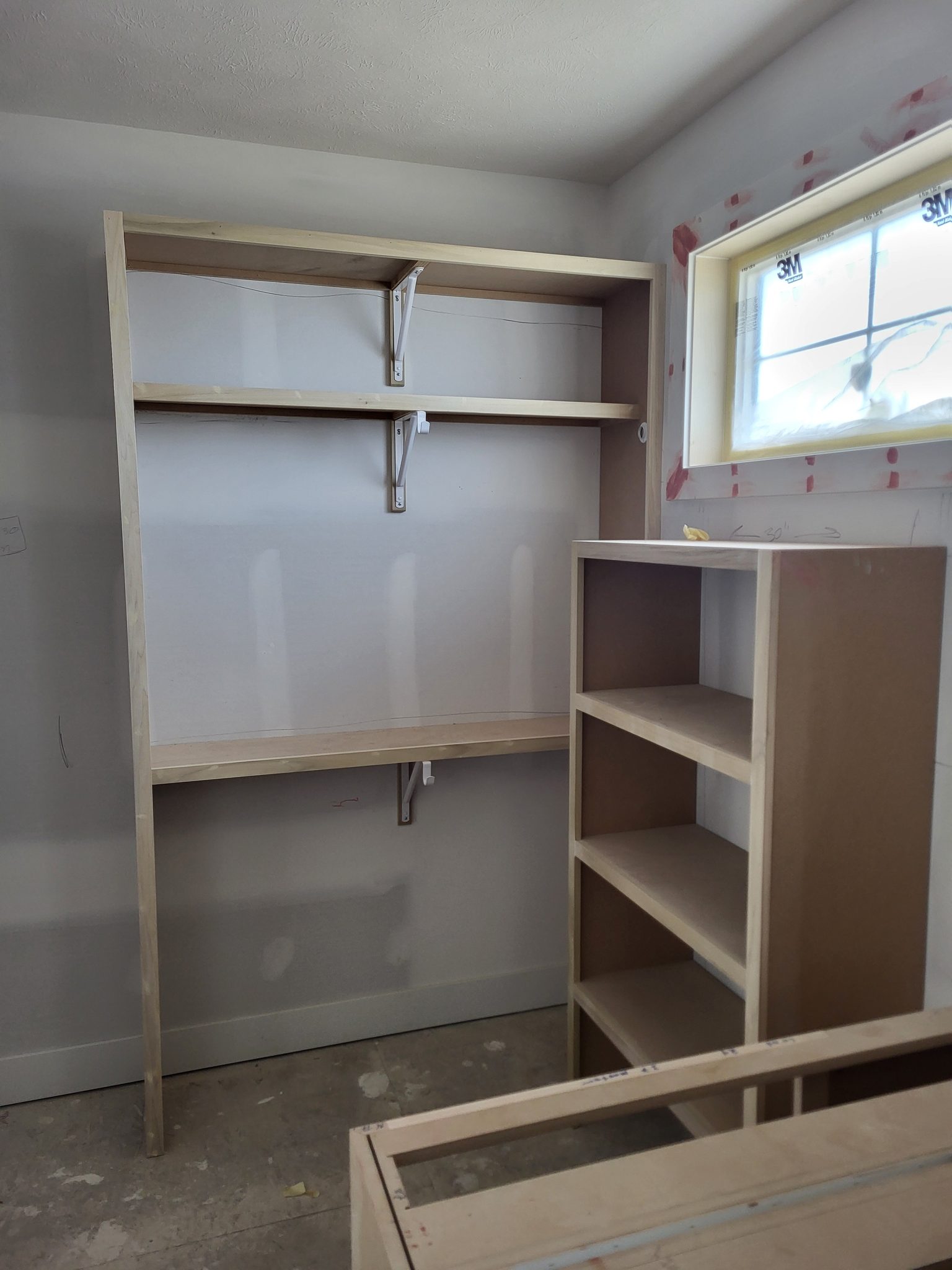

• Use metal shelf brackets for simple support. Metal L-brackets screwed to the wall below the shelf provide adequate support for most residential closets. Use brackets rated for at least 50 pounds per bracket. Make sure the bracket is screwed into a stud, not just drywall.

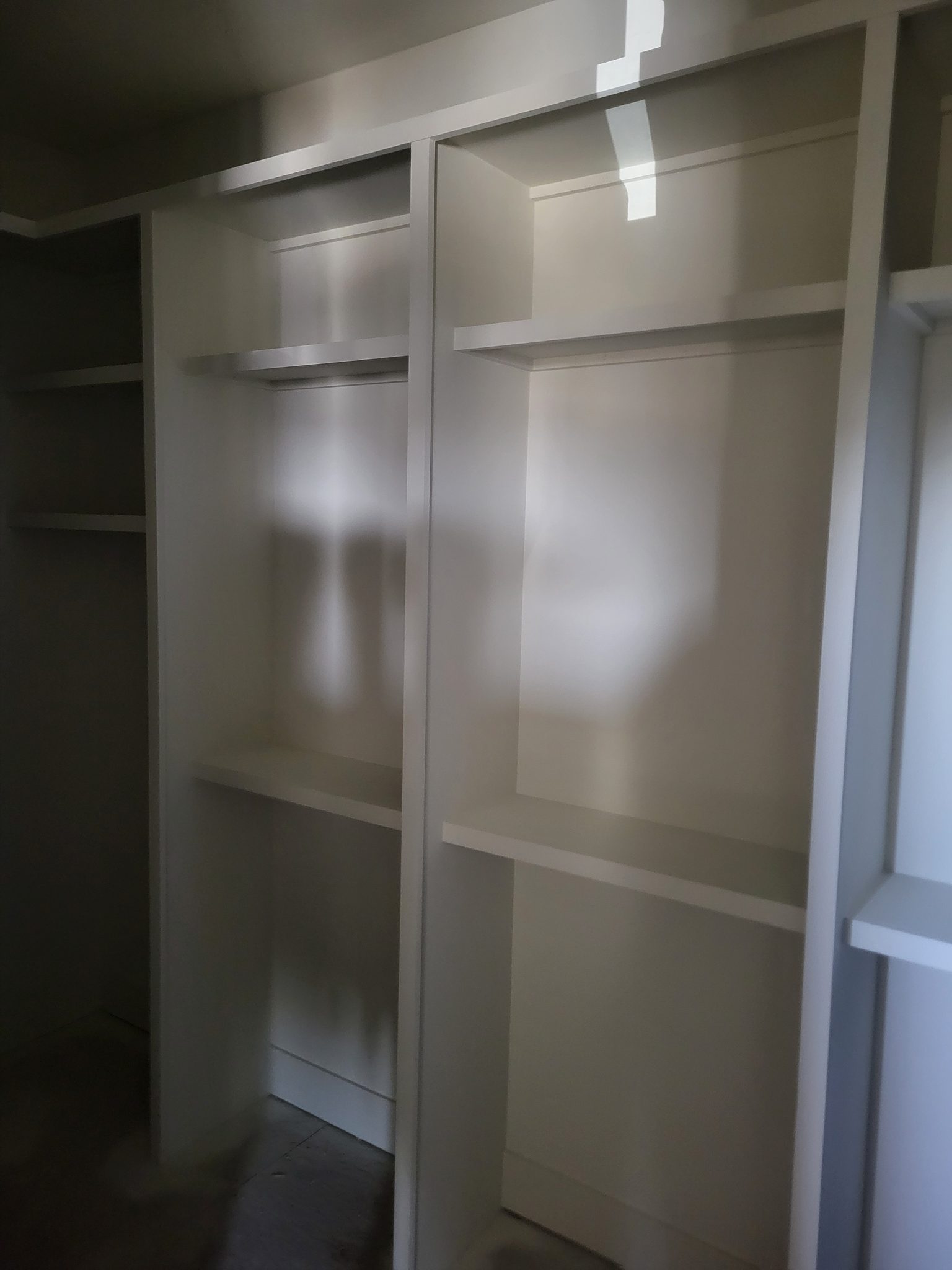

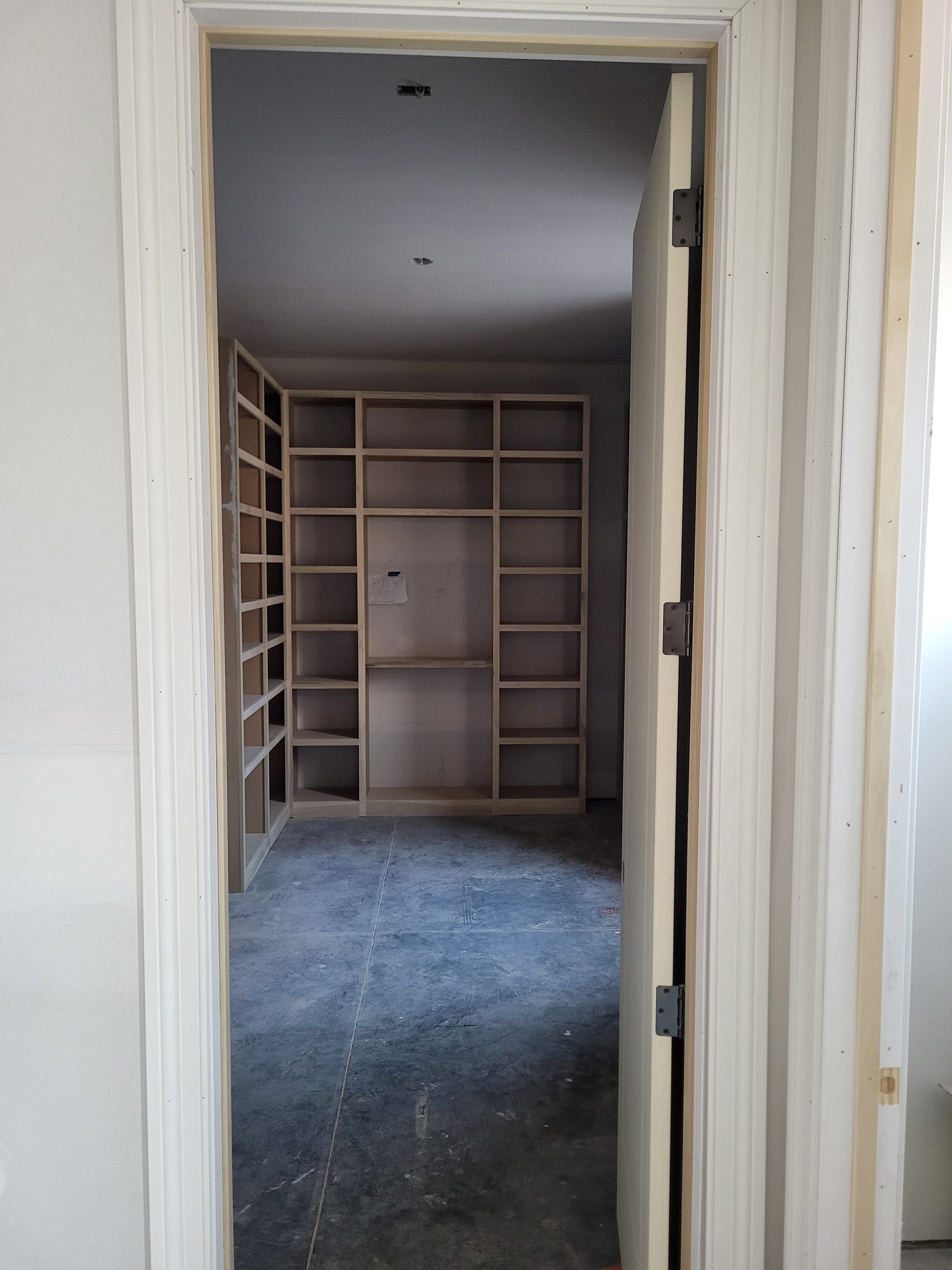

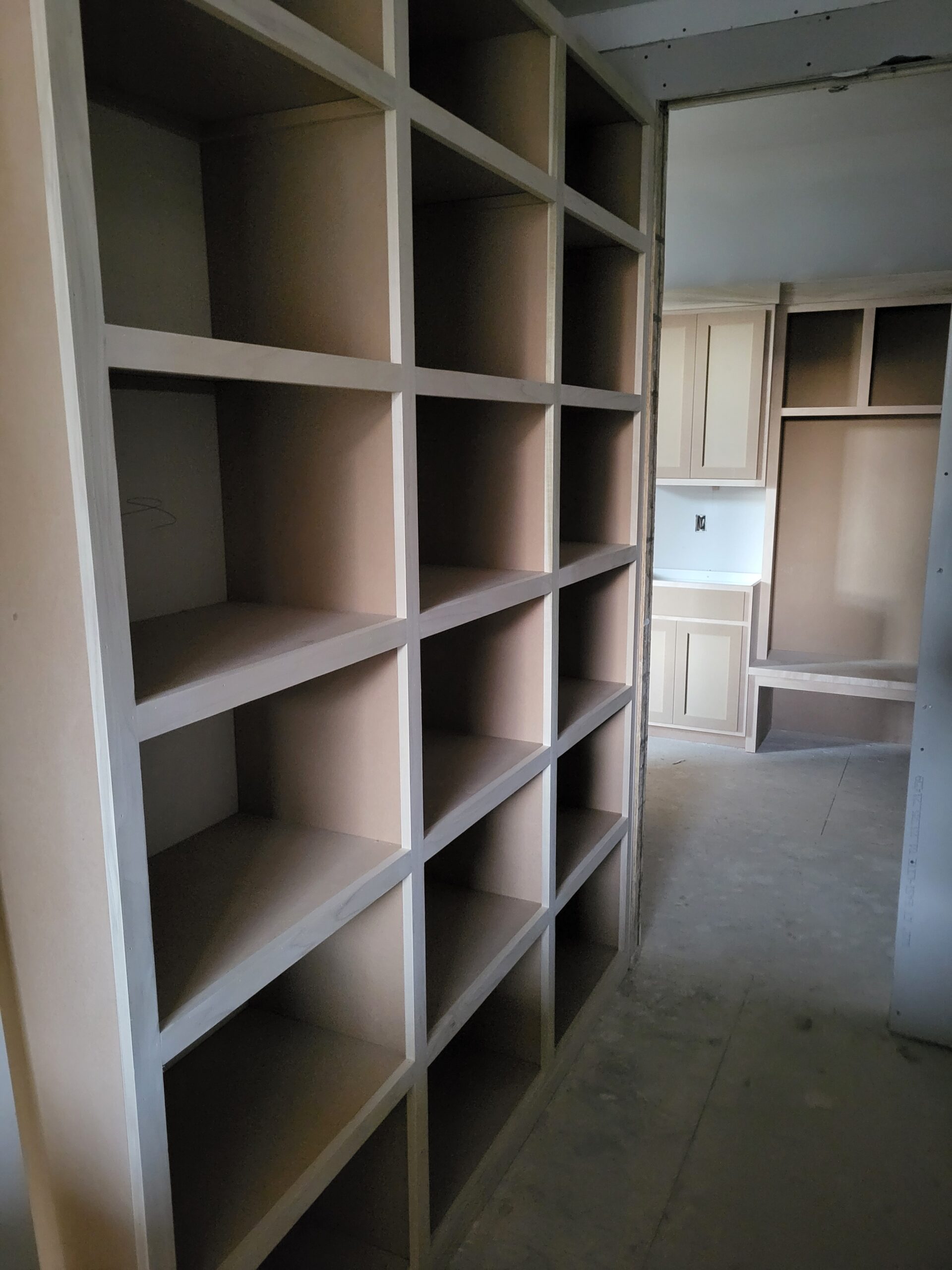

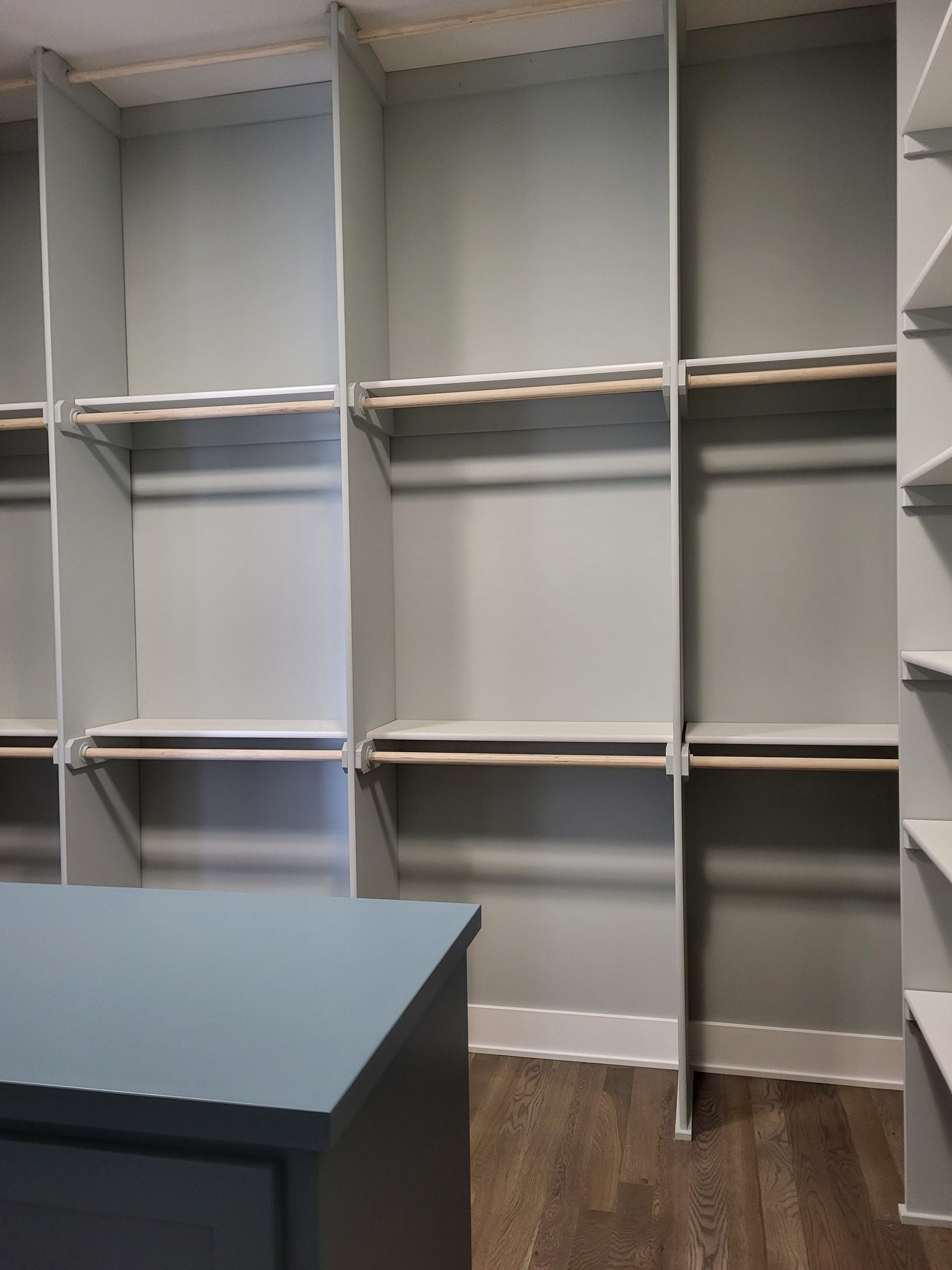

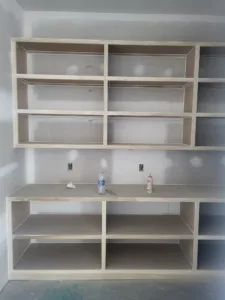

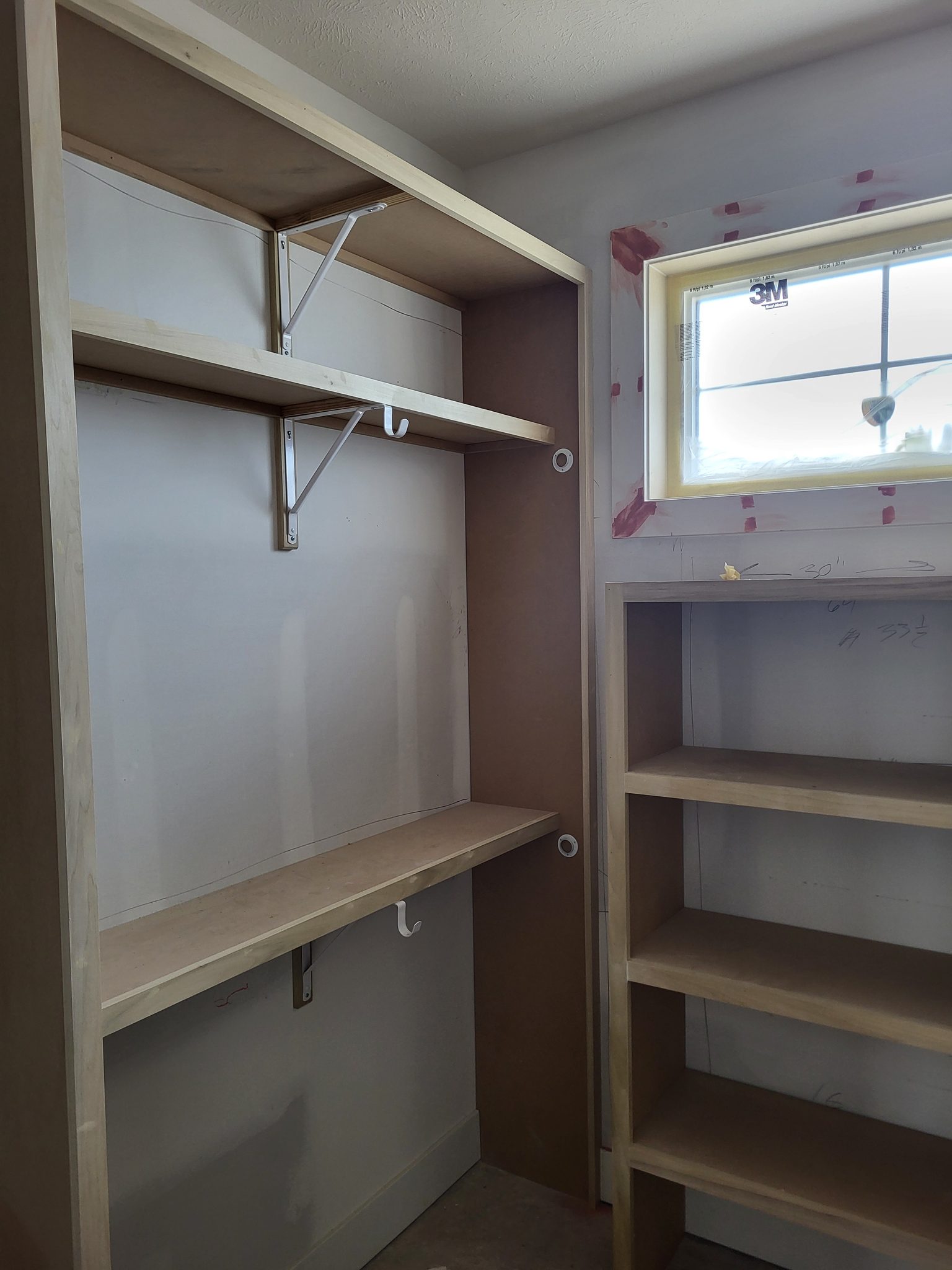

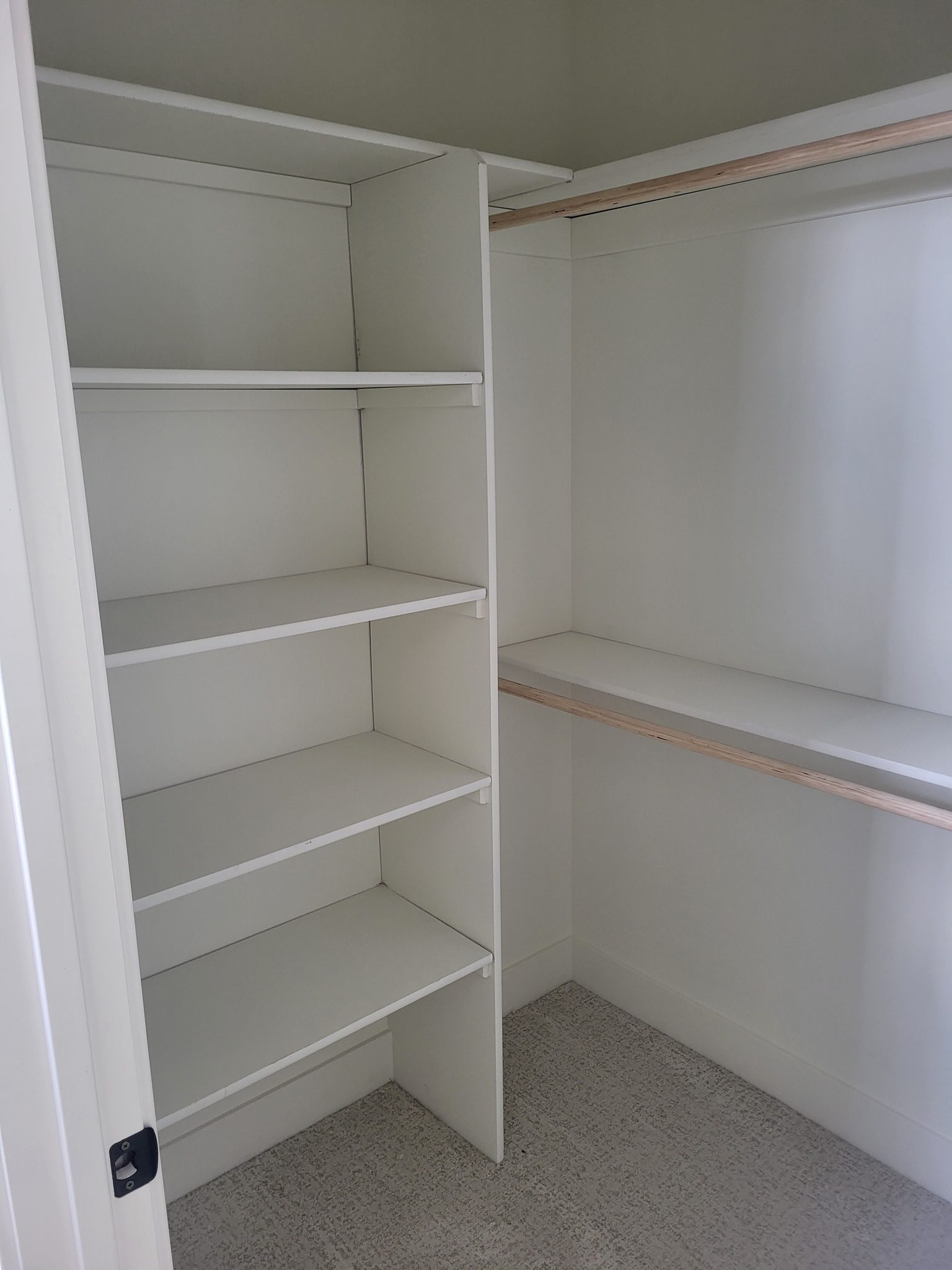

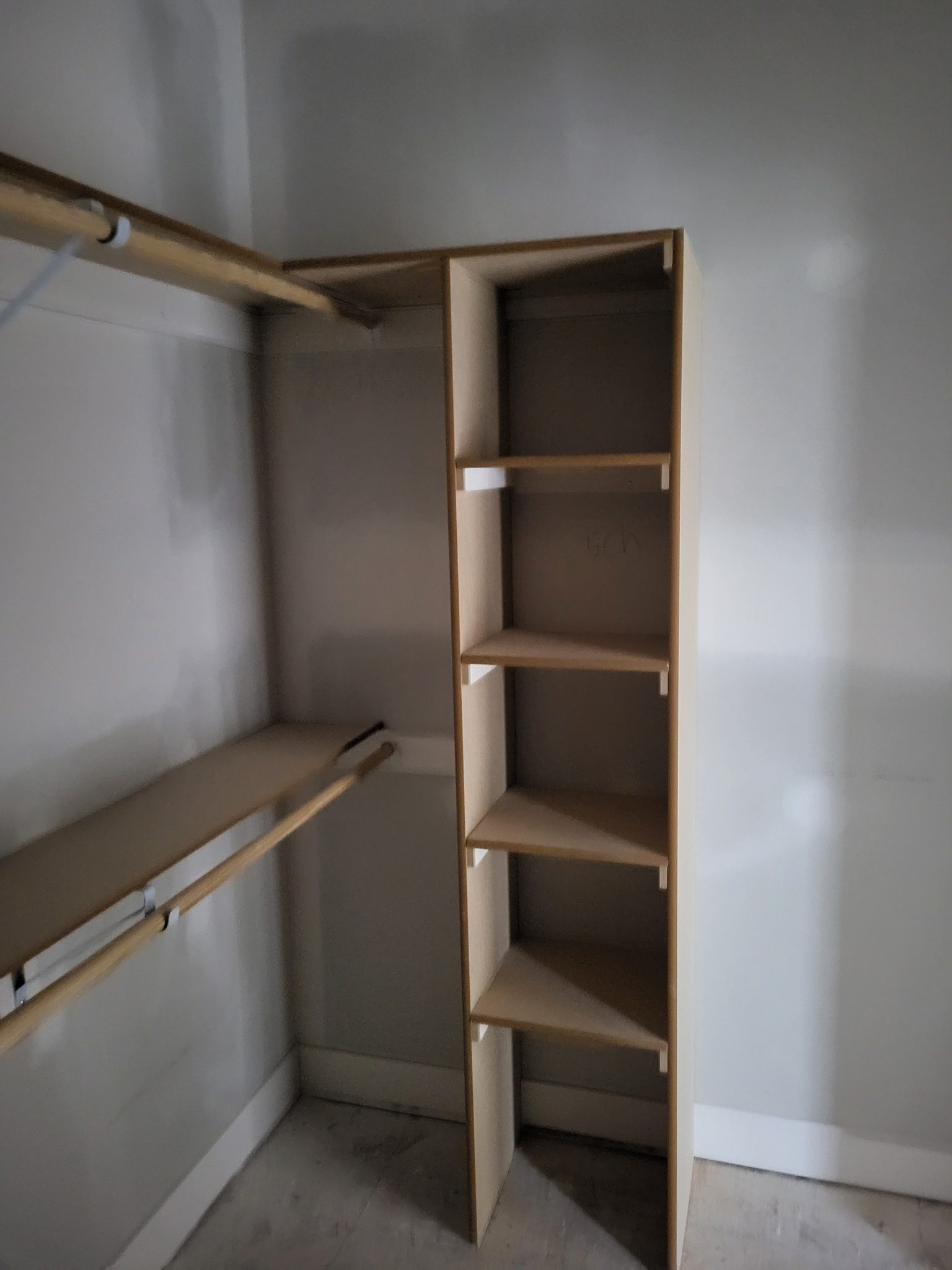

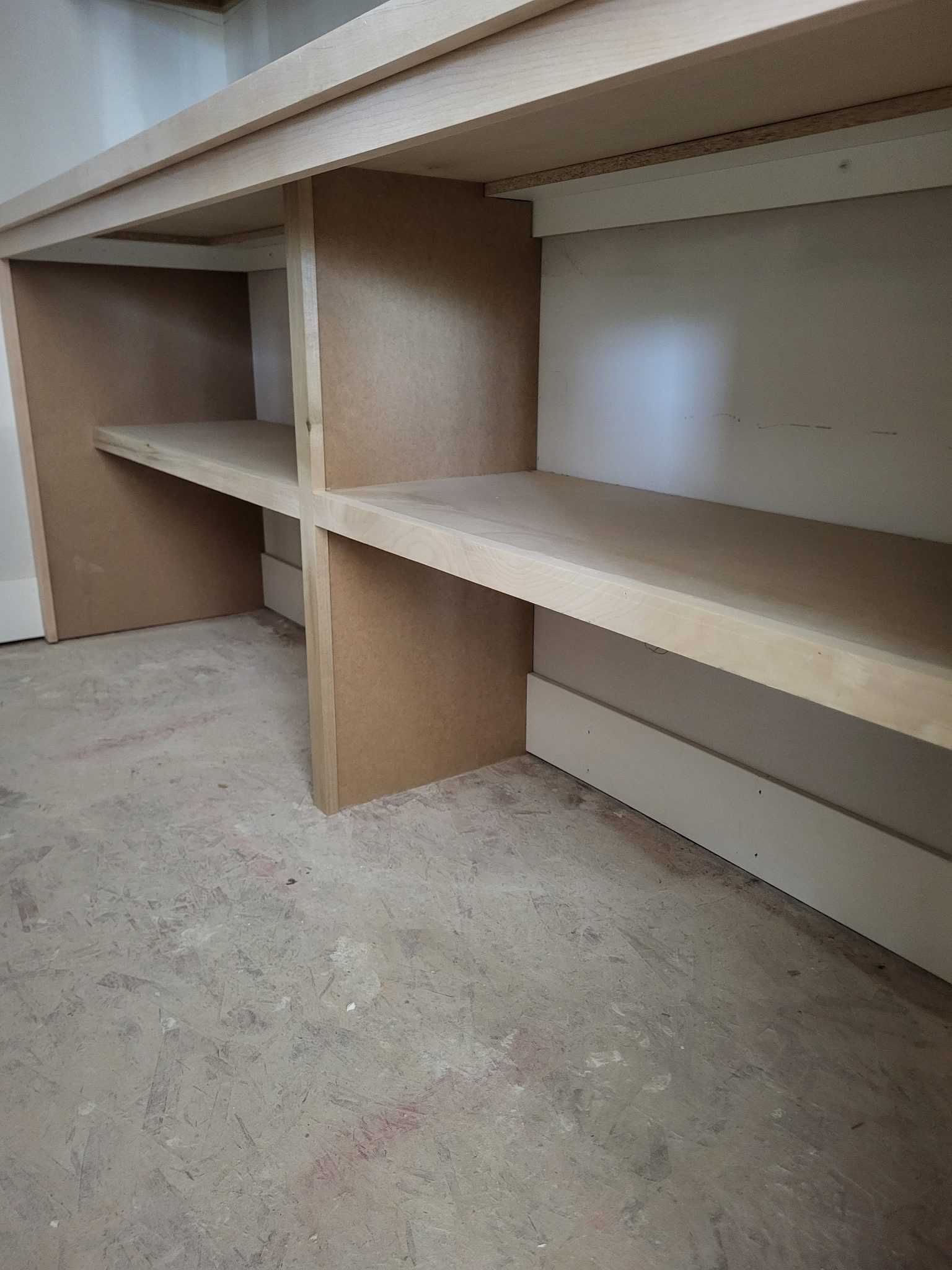

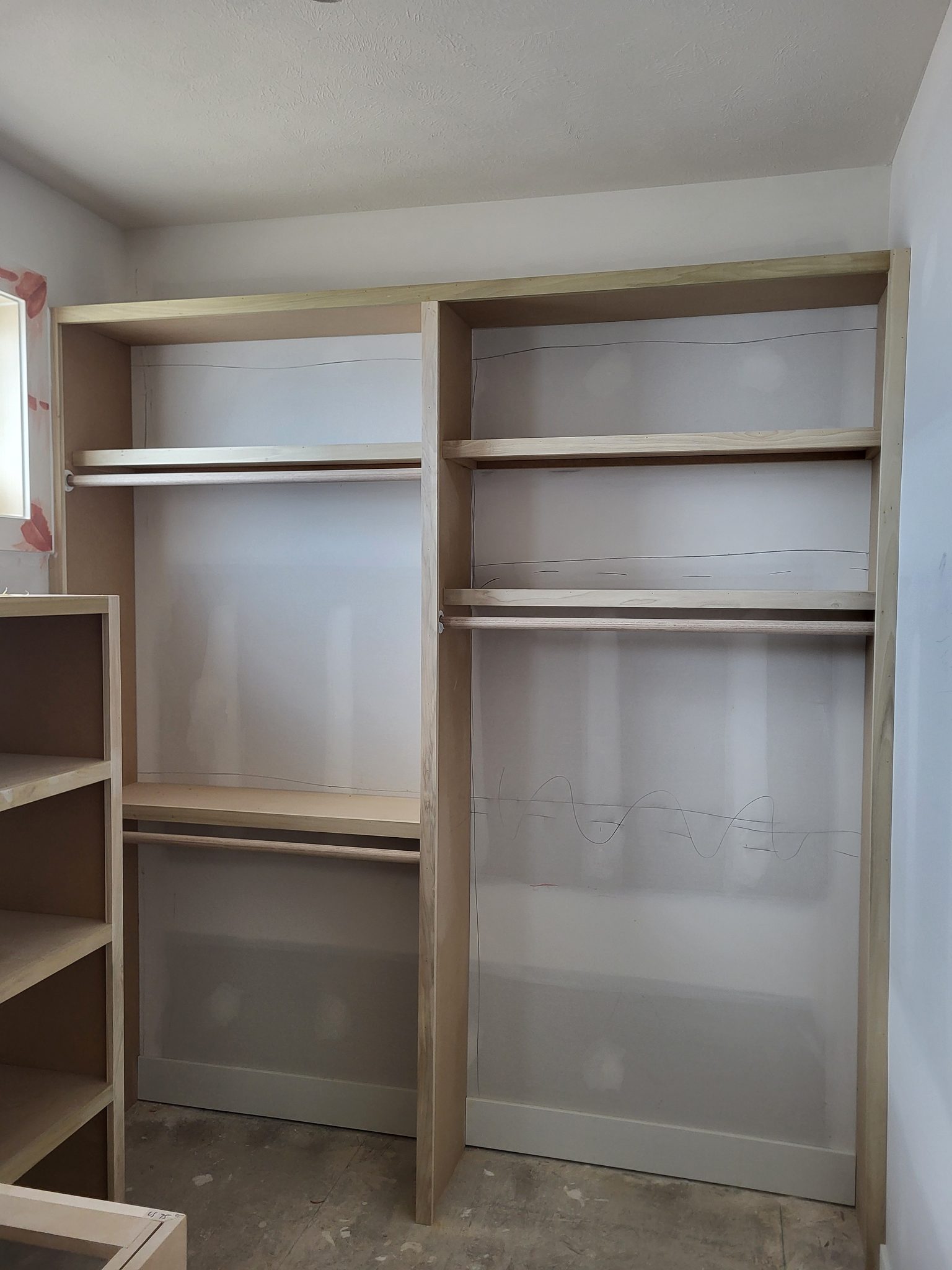

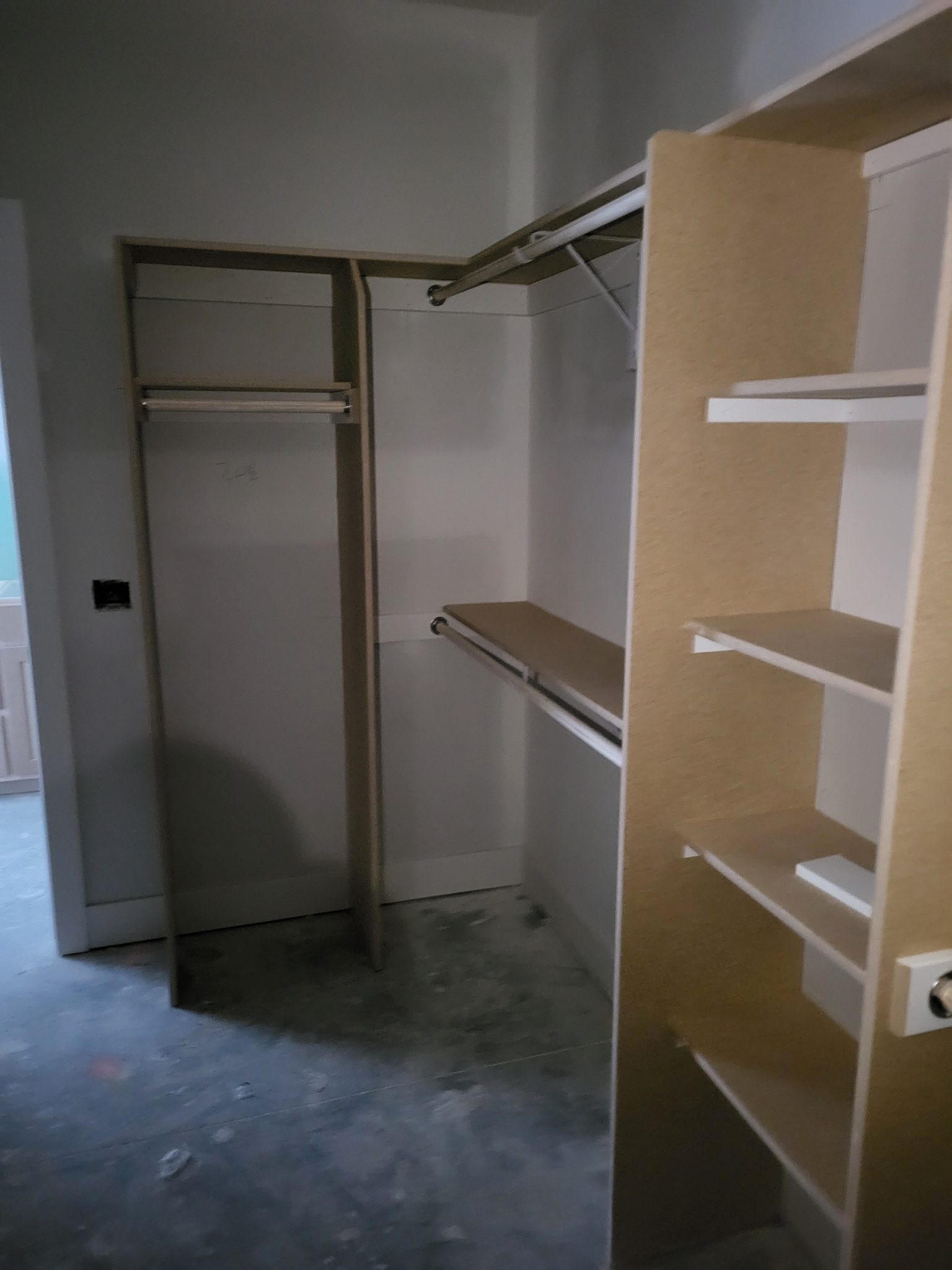

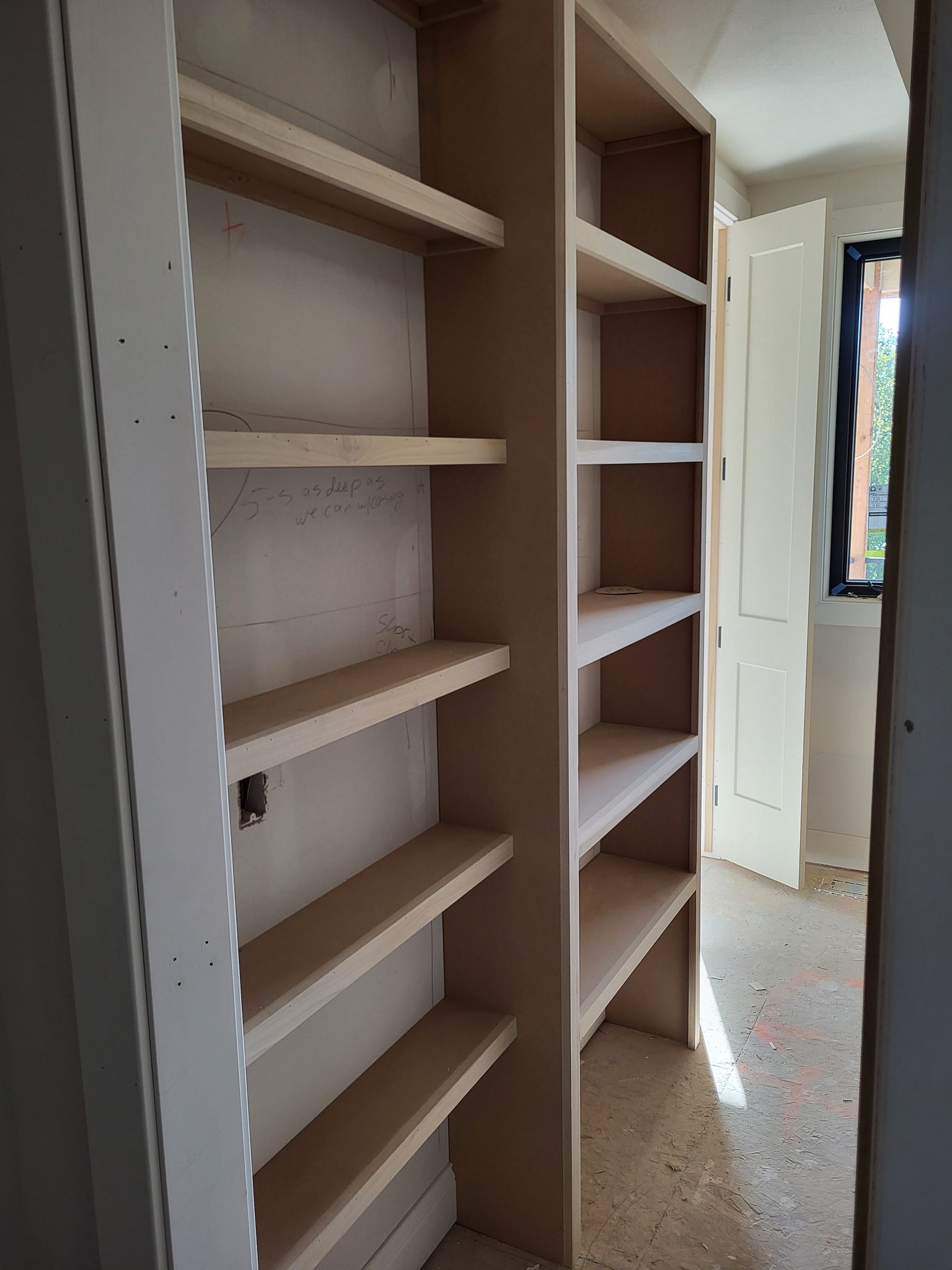

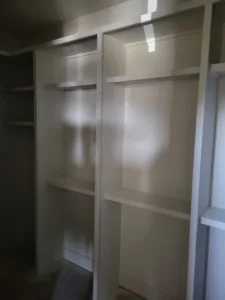

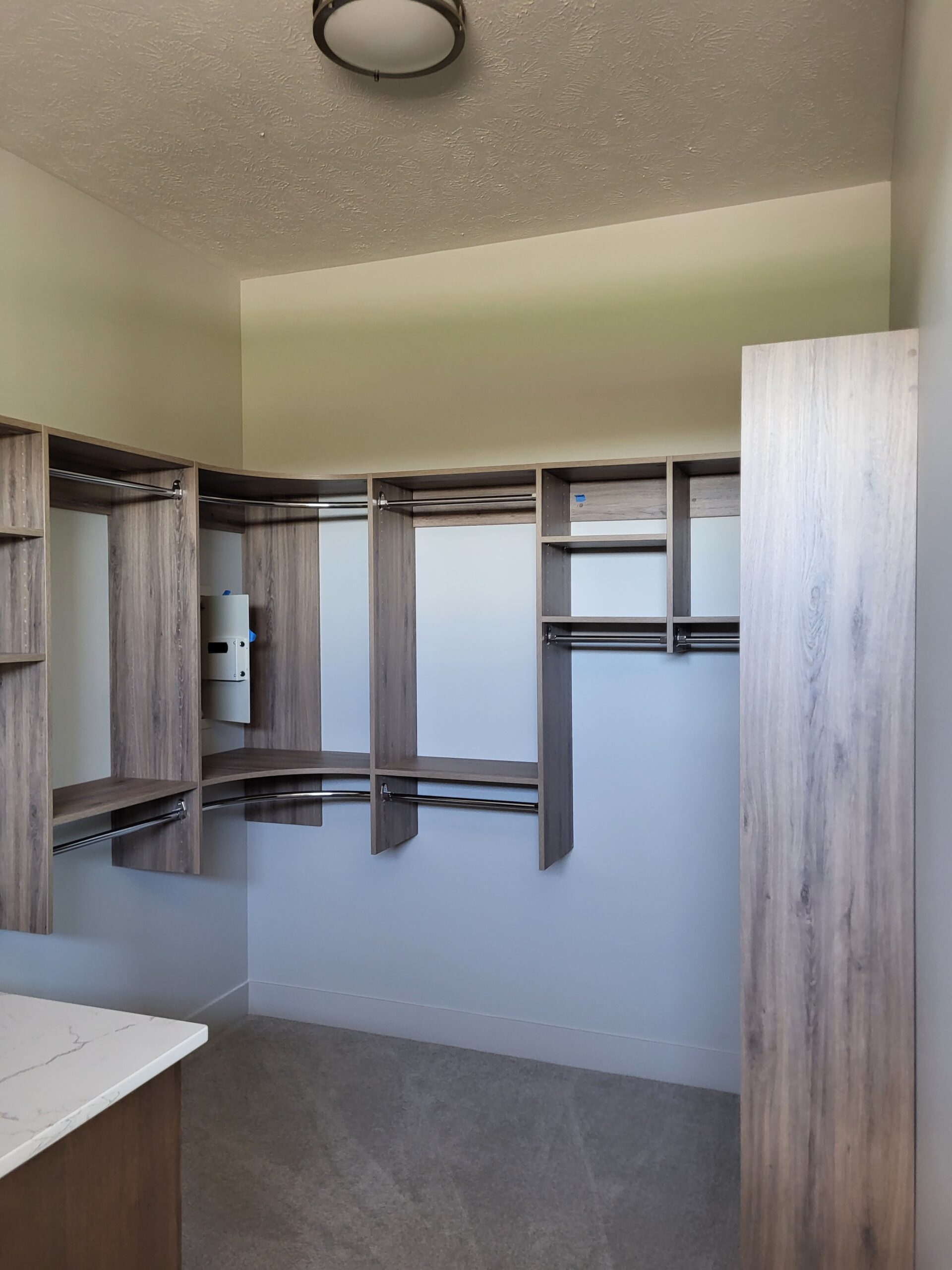

• Build a partition wall for larger closets. In walk-in closets with long walls, a vertical partition (made from the same shelving material) divides the span into sections and provides support for both shelves and rods. The partition also creates a visual break that makes the closet look more organized.
• Support the rod as well as the shelf. If a rod span exceeds 36″, it needs its own center support in addition to the shelf support. Use a metal rod support bracket that mounts to the shelf above, or create a wood support that drops down from the shelf to cradle the rod at the midpoint.

Step 7: Final Inspection and Touch-Up #

Before you move on to the next closet, walk through your work to verify you build closet shelves that meet professional standards. It takes two minutes and catches problems that are easy to fix now but become callbacks later.

• Check all shelves are level. Set your level on every shelf, both front-to-back and side-to-side. A shelf that’s visibly out of level is the first thing a homeowner notices.
• Verify cleats are secure. Push firmly on each cleat to confirm it’s solid. A cleat that moves when you push on it will fail when loaded with 30 pounds of clothes and shoes.
• Confirm rods are centered and seated. Check that each rod is fully seated in its notches or cups and that it’s centered in the closet opening. Spin the rod — it should rotate smoothly without binding.
• Check for rough edges on particle board. Run your hand along every cut edge. Any sharp or splintered edge should be sanded smooth. Homeowners will be reaching into these closets every day — rough edges cause complaints.
• Clean up the closet. Sweep the floor, remove sawdust from shelves, and wipe down any scuff marks on walls. Leave the closet ready for the homeowner or the next trade.

Build Closet Shelves Quality Checklist #

Use this checklist to verify every closet before moving on. Each item confirms you build closet shelves correctly. Each item should pass before you consider the closet complete:

• All cleats are level and securely fastened to studs (minimum two nails per stud)
• Shelves are at the correct heights per the layout plan from Part 2
• No shelf span exceeds 36″ without a center support bracket or partition
• Rods are at the proper height (per Part 1 standards) and 10-12″ from the back wall
• Shelves fit snugly wall-to-wall with 1/16″ to 1/8″ clearance per side
• All particle board cut edges are sanded smooth with no splinters or chips
• Cleats are butted tight in corners with no gaps
• Rod notches or cups are secure and rod does not wobble or fall out
• Support brackets are centered on long spans and fastened into studs
• Closet floor is clean, shelves are dust-free, and walls have no scuff marks

Troubleshooting When You Build Closet Shelves #

Shelf Sags in the Middle #

Cause: The shelf span is too long without a center support. When you build closet shelves, always plan for supports on long spans. Particle board is not a rigid material — any unsupported span over 36″ will eventually sag, especially under sustained load from heavy items like shoes, bins, or stacked linens. Fix: Add a center support bracket or vertical partition at the midpoint of the span. For existing shelves that have already sagged, flip the shelf over (the sag will be in the opposite direction and the weight will flatten it over time) and install the support bracket to prevent further deflection. If the sag is severe (more than 1/2″), replace the shelf — once particle board deforms significantly, it’s structurally compromised.

Cleat Won’t Hold — Missed the Stud #

Cause: The nail went into drywall only, not into a stud. This happens when stud finder readings are inaccurate (common near corners, electrical boxes, or metal corner bead) or when the carpenter nails between studs by mistake. Fix: Remove the cleat and re-identify the stud locations. Probe with a finish nail or small drill bit to confirm you’ve found solid wood. Reposition the cleat and nail into confirmed stud locations. If the nail holes in the drywall are visible, they’ll be covered by the cleat. If a stud is missed at one location but the cleat hits studs at other points, you can add a construction screw with a toggle bolt or snap toggle at the missed location for supplemental support — but the primary attachment must always be into studs.

Particle Board Chips When Cutting #

Cause: The blade has too few teeth, the blade is dull, or the melamine surface is tearing instead of being cut cleanly. Standard framing blades (24 teeth) will destroy particle board edges. To build closet shelves with clean cuts, use fine-tooth blades exclusively. Fix: Switch to a fine-tooth blade — 60+ teeth for a miter saw, 80+ teeth for a table saw. Score the cut line with a utility knife on the melamine surface before cutting. Apply painter’s tape along the cut line to reinforce the surface. Cut slowly and steadily — don’t force the material through the blade. If chipping still occurs, the blade is dull and needs to be replaced or sharpened.

Shelf Doesn’t Fit — Walls Out of Square #

Cause: The closet walls are not perfectly parallel or square, which is normal in residential construction. Drywall corners can be built up with mud, walls can bow, and framing can be slightly off. A shelf cut to a single measurement often ends up too long at one end or too short at the other. Fix: Always measure at both the front and the back of the shelf position. If the measurements differ by more than 1/4″, you may need to scribe the shelf — hold it in position, use a compass set to the widest gap to trace the wall profile onto the shelf edge, then cut along the scribe line with a jigsaw or belt sander. For minor differences (less than 1/4″), cut to the shorter measurement minus 1/8″ and the small gap will be unnoticeable.

Rod Falls Out of Notch #

Cause: The notch is too shallow, too wide, or the rod was cut too short. A properly notched 1×4 cleat should cradle at least half the rod’s diameter (5/8″ deep for a 1-1/4″ rod). If the notch is less than half the diameter, the rod can pop out when loaded with hangers. Fix: If the notch is too shallow, deepen it with a chisel or Forstner bit while the cleat is on the wall (carefully) or remove the cleat and re-notch it. If the rod is too short, cut a new rod 1/16″ shorter than the wall-to-wall measurement — not more. If you’re using rod cups instead of notches, make sure the cups are screwed securely into studs or solid blocking and that the rod sits fully in the cup. Consider adding a drop of wood glue in the notch to prevent the rod from spinning and walking out over time.

Efficiency Tips to Build Closet Shelves Faster #

• Batch-cut all cleats for the house at once. Before you start installing anything, measure every closet, compile a cleat cut list, and cut all cleats at the miter saw station in one session. Group them by length and label each one with the closet name and wall (e.g., “Master WIC – Back Wall”). This eliminates going back and forth to the saw for every closet and helps you build closet shelves faster across the whole house.
• Pre-cut standard shelf widths. If your layout plan uses standard shelf widths (24″, 30″, 36″), set up a stop block on your saw and batch-cut all shelves of each width. You’ll still need to fine-tune some shelves for walls that are out of square, but having pre-cut blanks saves significant time.
• Work room by room, not task by task. Complete each closet fully (cleats, shelves, rods, brackets, inspection) before moving to the next one. This approach helps you build closet shelves more efficiently. This is faster than installing all cleats in the house, then all shelves, then all rods — because you avoid repeated setup and cleanup in each room.
• Label all cleats and shelves by closet. Write the closet name and position directly on each piece with a pencil. When you walk into a closet with an armload of material, you should be able to grab exactly what you need without re-measuring. Labels on cleats should face the wall side (hidden after installation).
• Set up a cutting station near the closets. Position your miter saw and table saw (if used) in a central location near the closets you’re working on. Minimize the distance you carry material — time spent walking is time not spent building.
• Keep your nail guns loaded and your compressor running. Nothing breaks momentum like stopping to reload nails or wait for the compressor to catch up. Start each day with full nail magazines and a full compressor tank. Carry extra nails in your pouch.

Closet Shelving Series #

This guide is part of a three-part series covering everything you need to know to build closet shelves in new construction:

• Part 1 — Standards: Industry measurements, rod heights, shelf spacing, and material specifications
• Part 2 — Layout Design: Planning and designing layouts for every closet type
• Part 3 — Building (You Are Here): Step-by-step construction, cutting, installation, and finishing
