Introduction #
Learning how to install barn door hardware has made this one of the most popular interior door styles in modern residential design. Unlike traditional swinging or pocket doors, barn doors hang from a visible track above the doorway and slide along the wall surface to open and close. The hardware is exposed and becomes part of the design aesthetic rather than being hidden inside the wall.

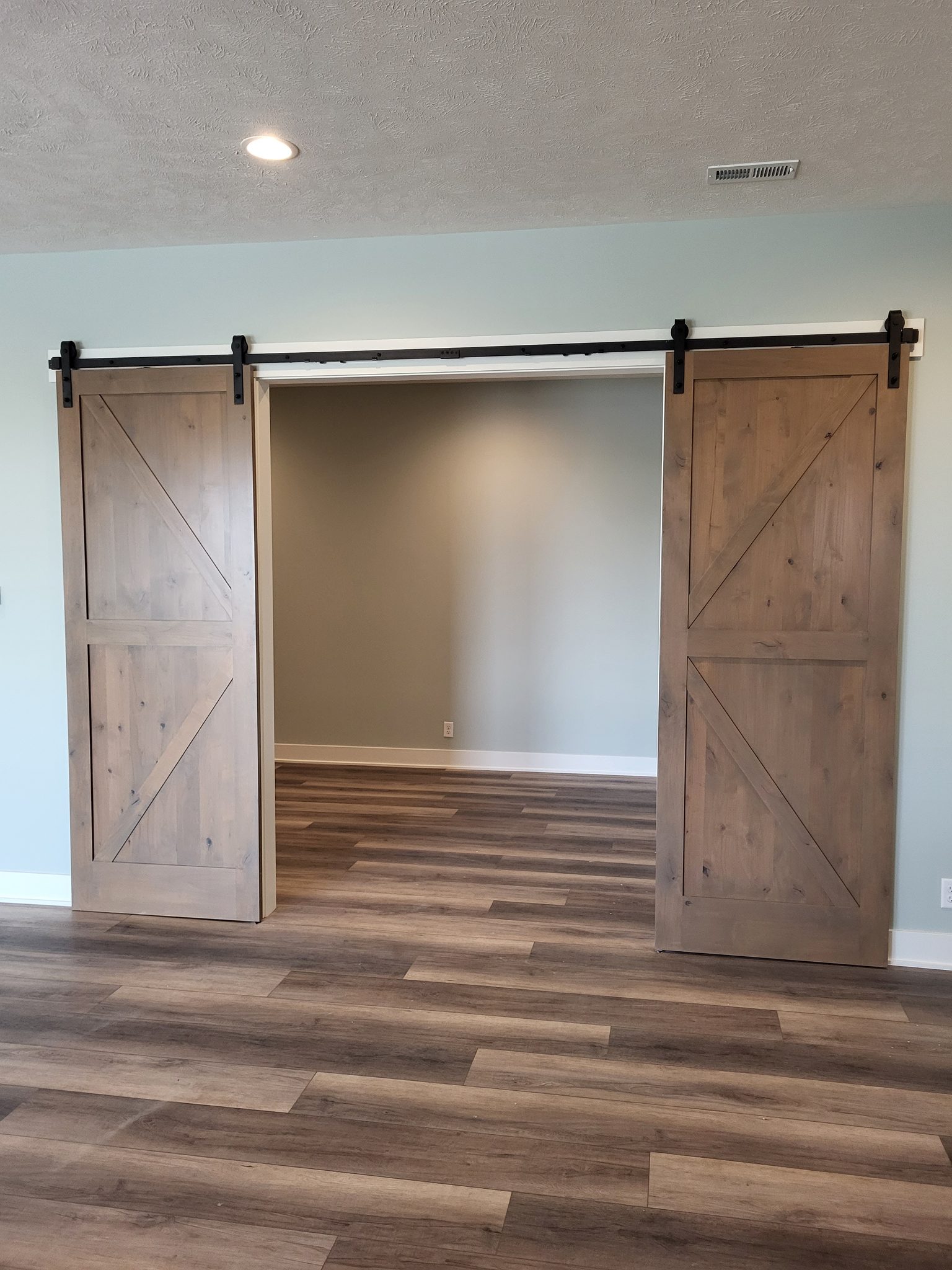

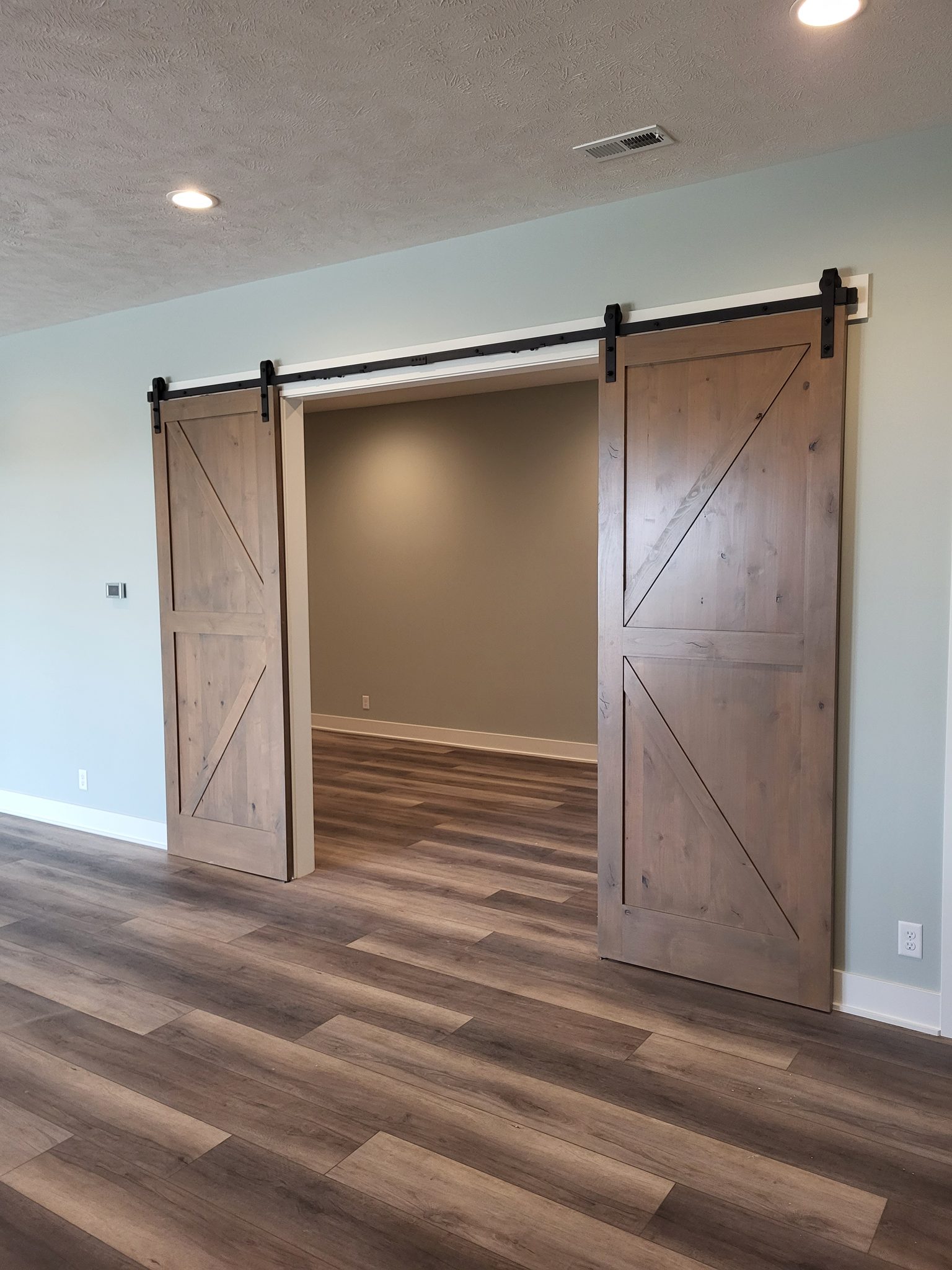

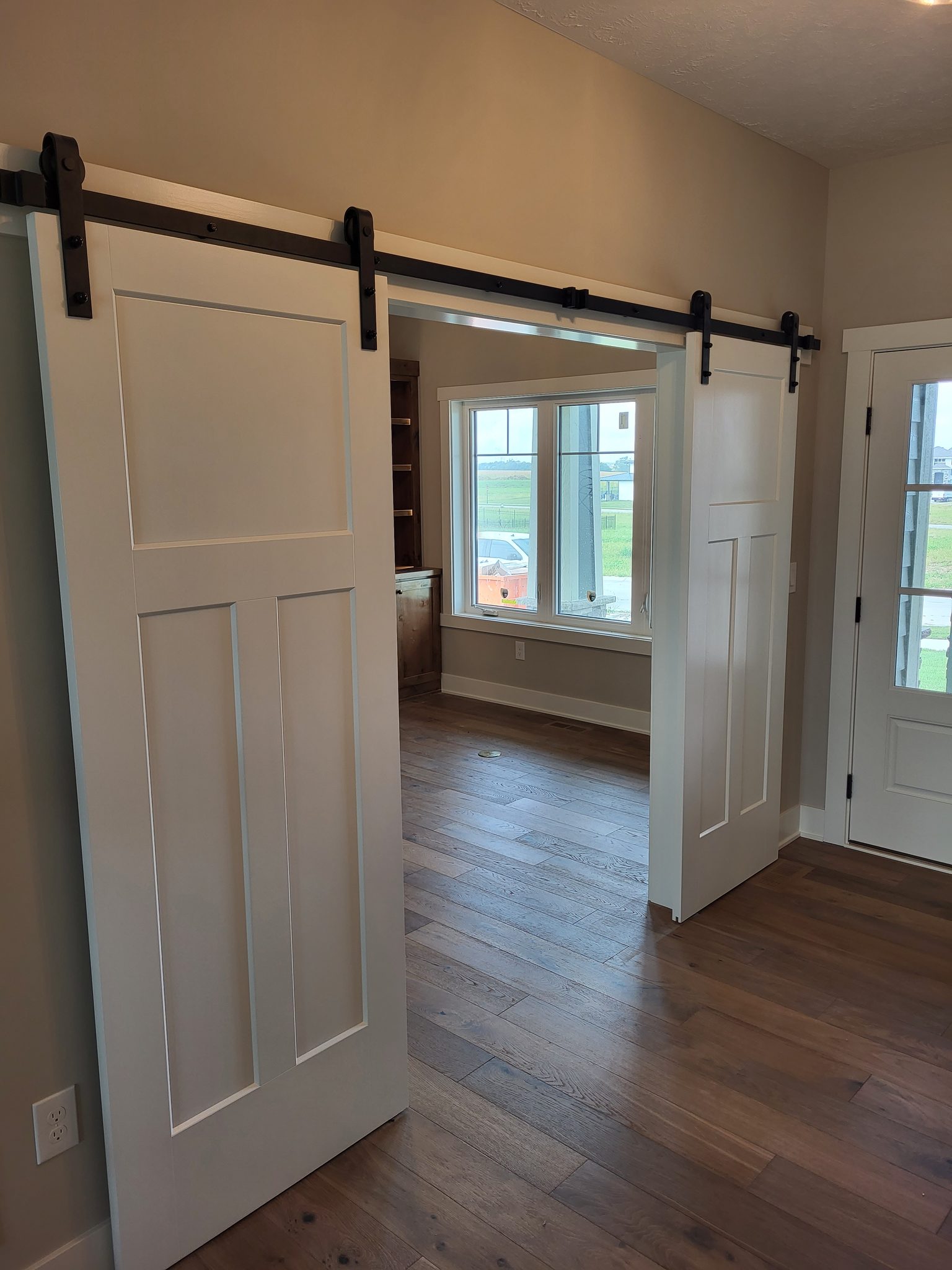

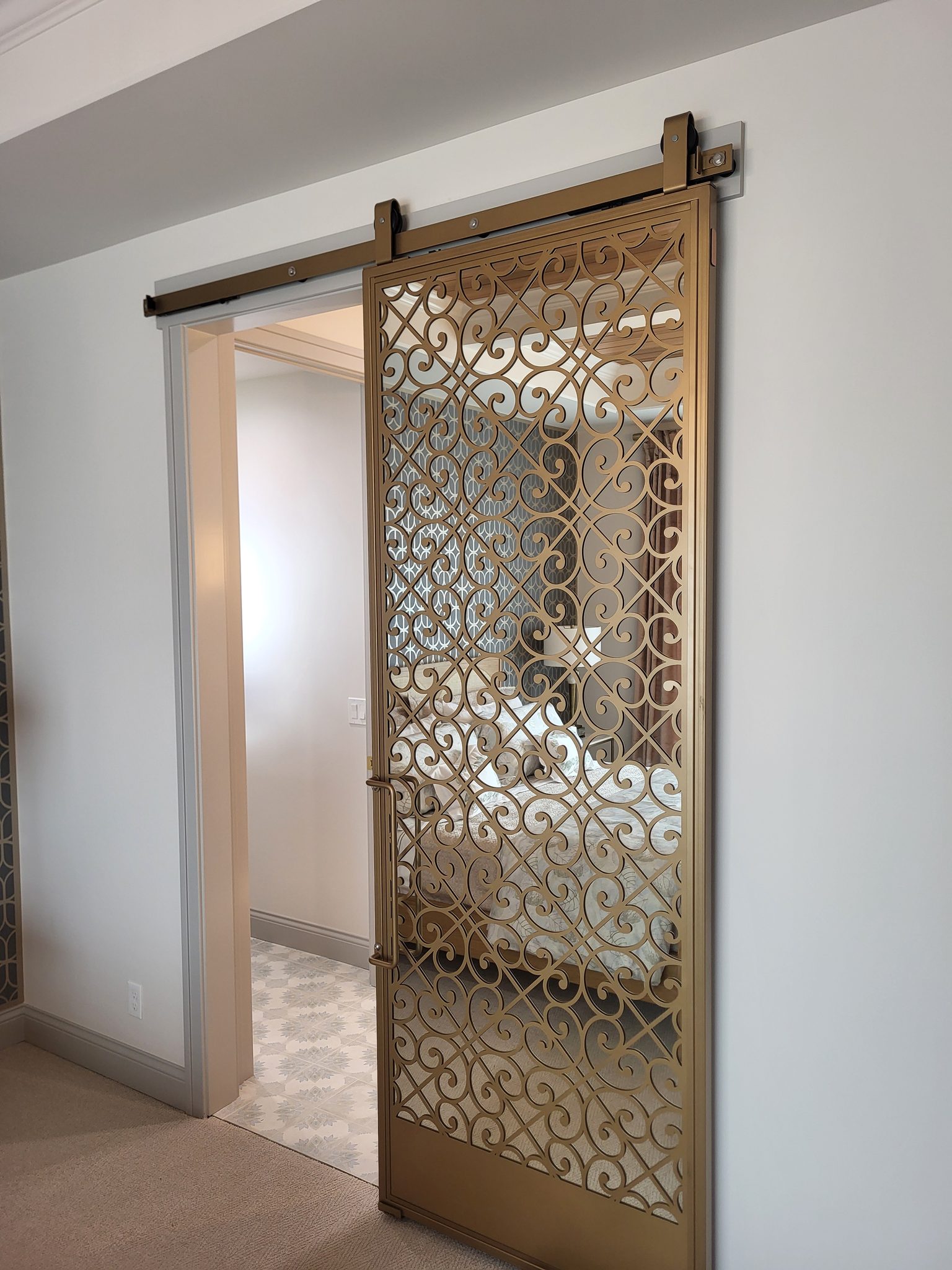

The appeal is both aesthetic and practical. The exposed hardware creates an industrial, modern, or farmhouse look depending on the style chosen, and the door itself becomes a visual focal point. On the practical side, barn doors don’t require swing clearance like traditional doors — they slide parallel to the wall, making them ideal for tight spaces or rooms where a swinging door would block furniture or traffic flow. They come in single door configurations (one panel sliding one direction) and double door configurations (two panels sliding in opposite directions from center).

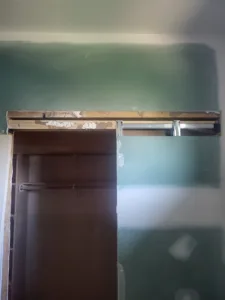

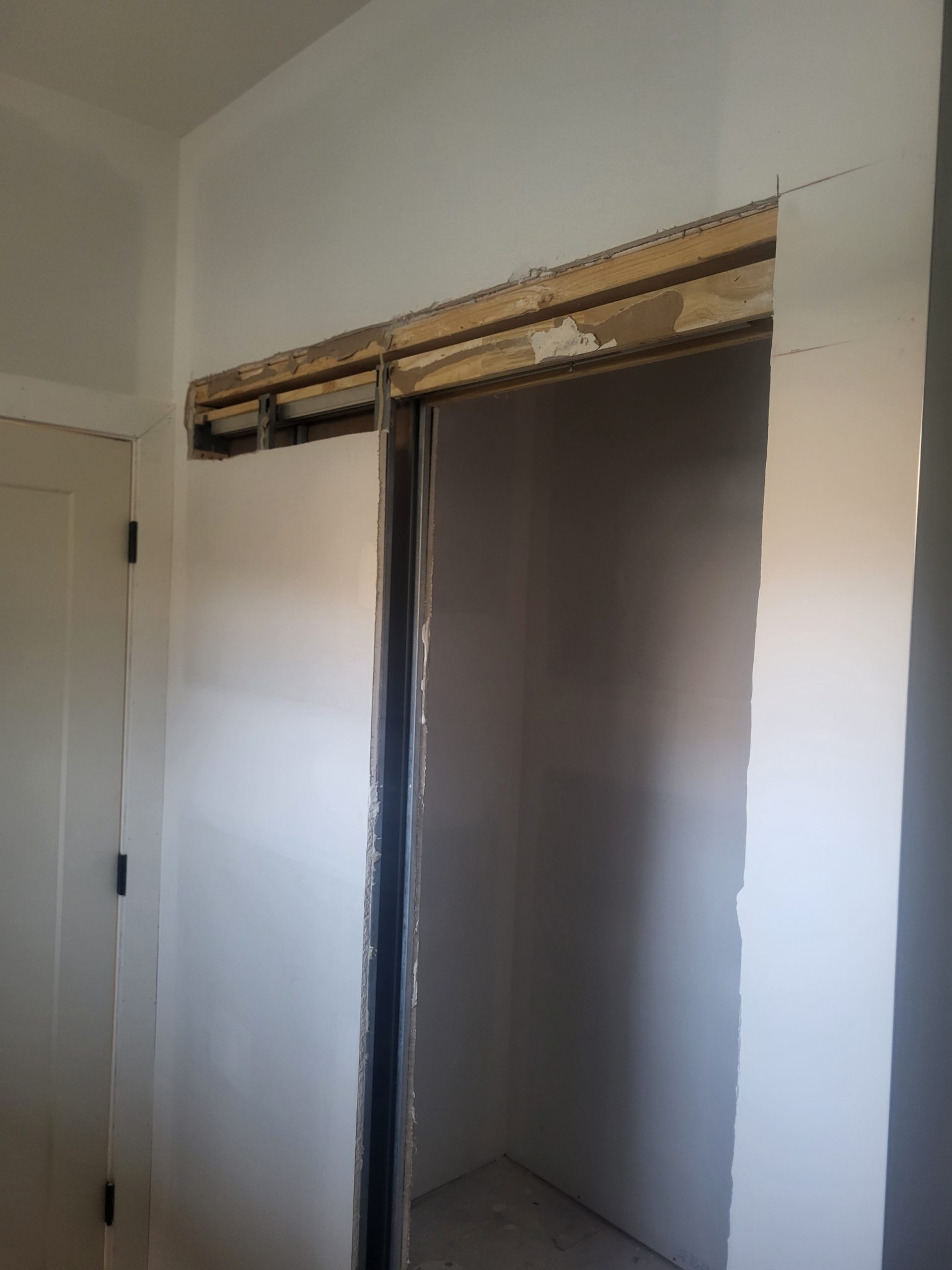

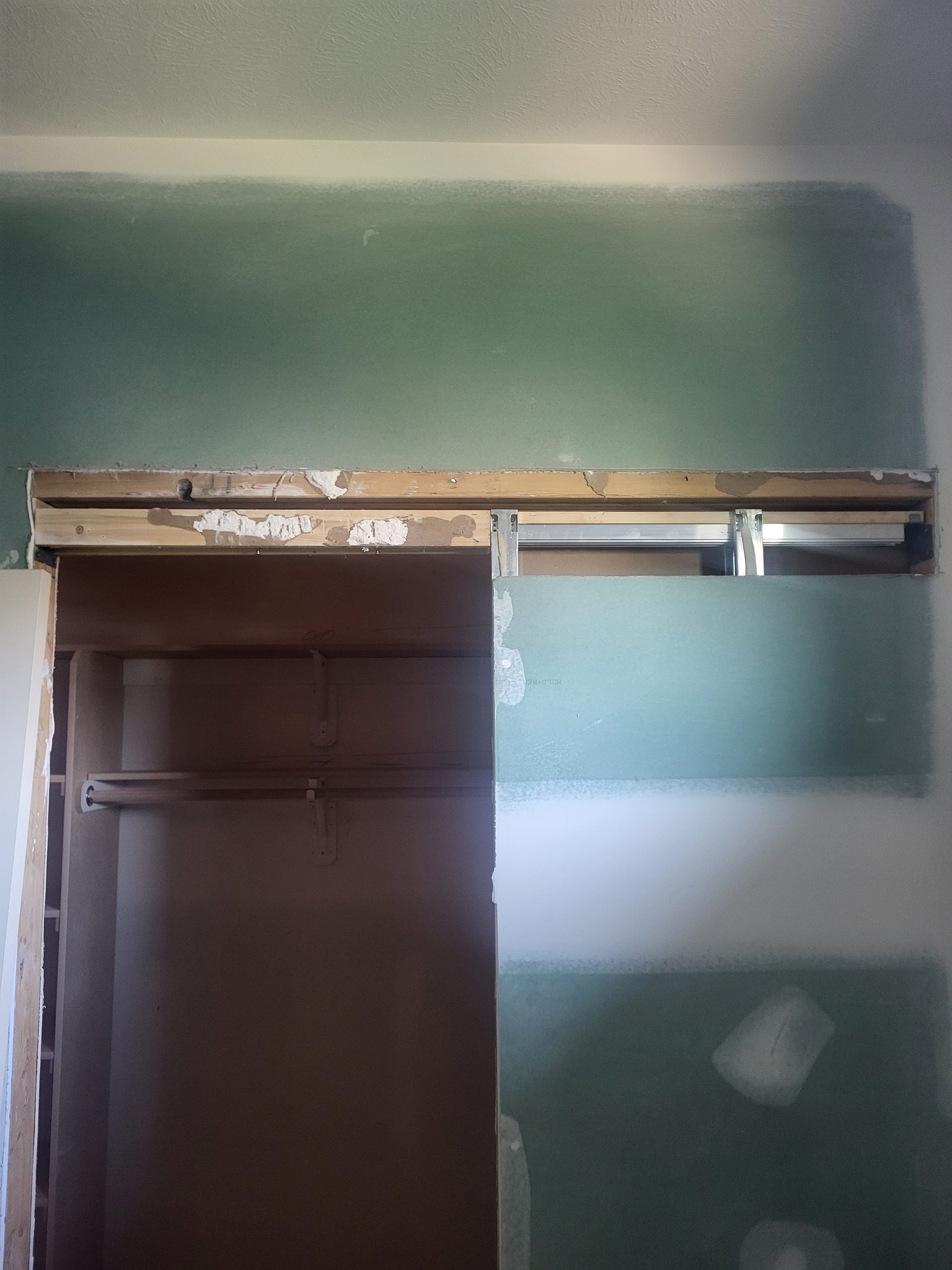

The critical structural consideration when you install barn door systems is the header and wall above the doorway. The track must be mounted to something solid — the door is heavy and all the weight hangs from the track. A hollow drywall wall cannot support a barn door. You need either a structural header, solid blocking behind the drywall, or a mounting board that spans across studs. This is not a project where you can cut corners on the mounting — a door falling off a wall is a serious safety hazard.
An important space consideration: the door slides ALONG the wall beside the opening. This means you need enough clear wall space to one side (or both sides for doubles) equal to the door width. Wall switches, outlets, artwork, or other obstructions in the slide path will prevent full opening. Plan the layout carefully before purchasing hardware or cutting any holes.

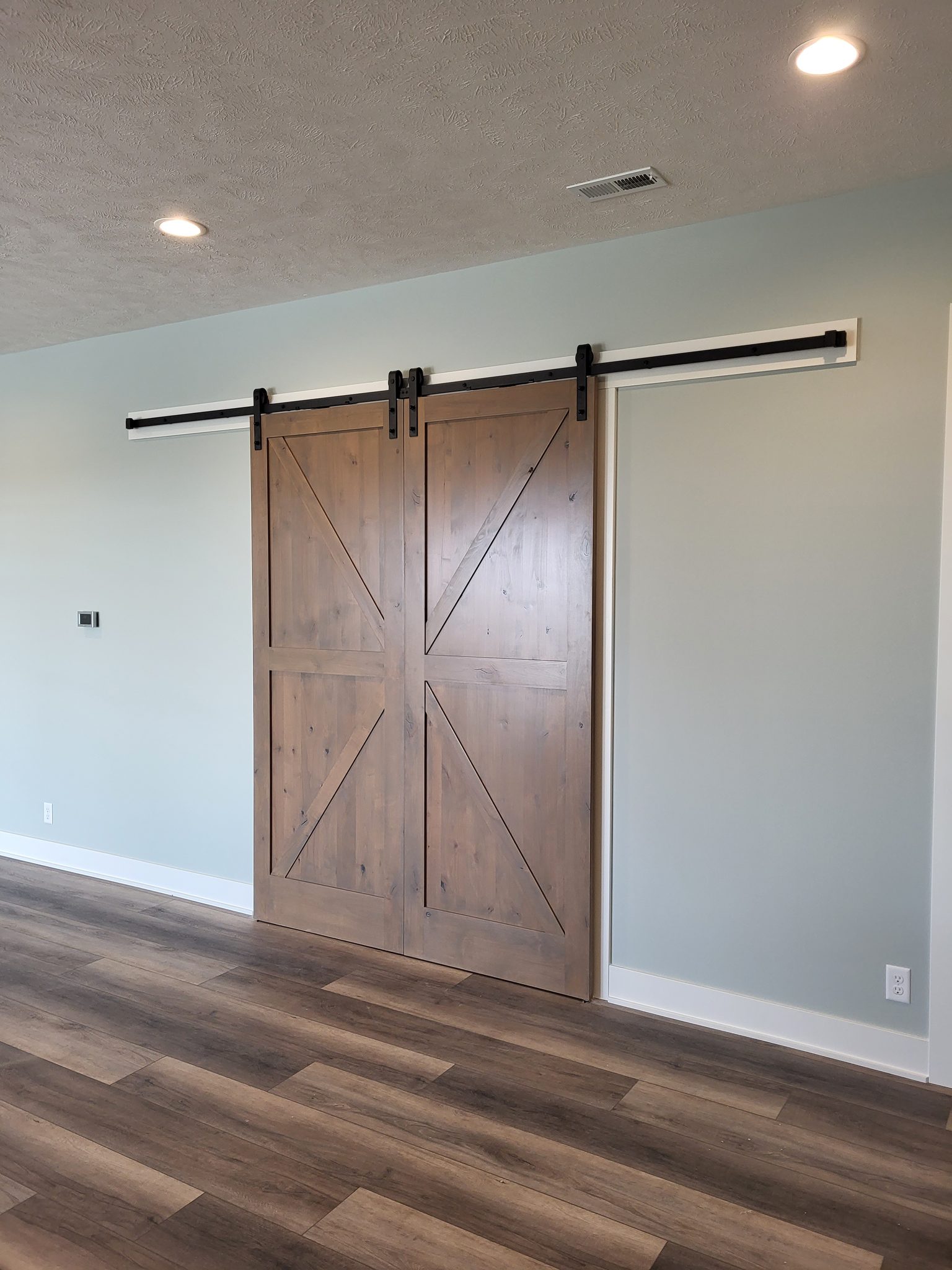

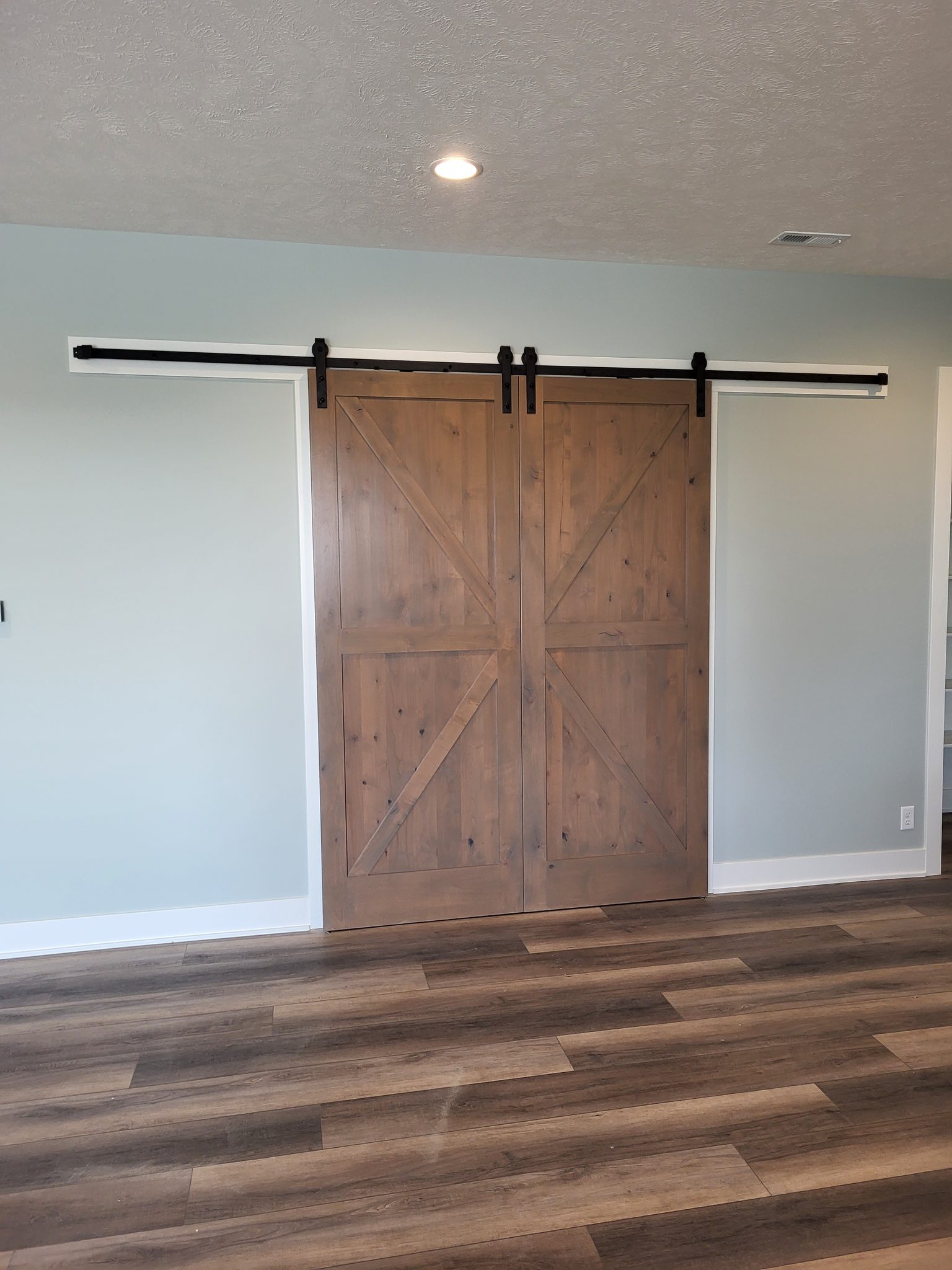

📷 Photo Needed
Completed install barn doors — finished result showing professional quality
Before You Begin #
Prerequisites #
- Doorway opening defined (no door frame needed — barn doors typically cover the entire wall surface around the opening)
- Wall surface finished
- Adequate wall space for door to slide into
- Header/blocking confirmed above doorway location
What You Need To Know #
- The door panel should be wider than the doorway opening by 2-4″ on each side (so a 36″ opening needs approximately a 40-44″ wide door panel)
- The track length is typically twice the door width (so the door can slide fully open)
- Track height: door hangs with bottom approximately 1/2″ to 1″ above the floor
- The mounting board (if used) should span at least 3 studs and be securely lag-bolted to each stud
- Door weight matters — check track hardware weight rating per This Old House barn door guide (most residential kits rate 150-200 lbs)
- A floor guide at the bottom keeps the door from swinging (required to prevent the door from swinging away from the wall)
Tools Required #
Power Tools #
- Drill/driver (with impact driver for lag bolts)
- Stud finder
- Miter saw (for cutting track if needed)
- Level (4-foot)
Hand Tools #
- Tape measure
- Pencil
- Socket wrench (for lag bolts)
- Screwdriver
Supplies #
- Barn door hardware kit (track, rollers/hangers, stops, floor guide, spacers, mounting hardware — usually sold as a complete kit)
- Lag bolts (typically 3/8″ x 3″ or 3/8″ x 4″, deep into framing)
Materials #
- Mounting board (1×6 or 2×6 if wall needs additional backing, stained/painted to match)

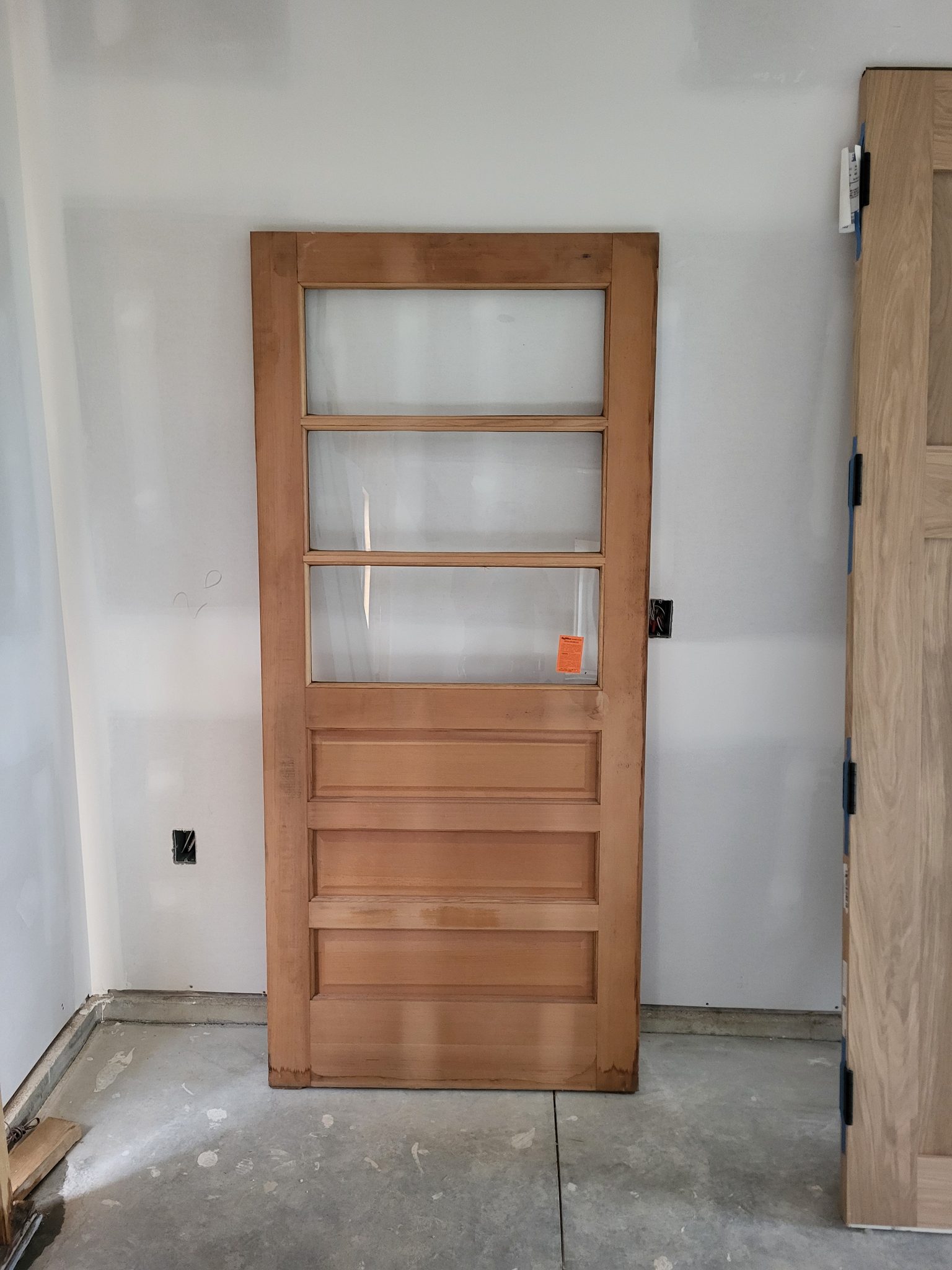

- Door panel (pre-built barn door slab)
- Door pull/handle
📷 Photo Needed
Tools and materials laid out for installing barn doors — everything needed before starting
Install Barn Door: Step-by-Step Process #
Step 1: Verify Wall Structure and Plan #
Before you install barn door hardware, locate ALL studs in the header area and along the slide path using a stud finder. Confirm adequate wall space for full door travel — you need clear wall equal to the door width on the slide side. Check that no utilities (electrical, plumbing) run where you’ll be drilling lag bolts. Determine if a mounting board is needed — if studs don’t align with the track hole spacing, a mounting board distributes the load across multiple studs and gives you continuous solid backing for the track.
Pro Tip: Use a stud finder AND verify with a small nail. A barn door that falls off the wall because the lag bolts missed the studs is a serious safety hazard — that door can weigh 80-100+ lbs.
📷 Photo Needed
Verify Wall Structure and Plan — showing the key action and what the result should look like

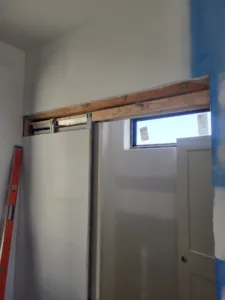

Step 2: Install the Mounting Board (If Needed) #
Cut the mounting board to the full track length. Pre-drill and lag-bolt to EVERY stud it crosses (minimum 3 studs). Check level carefully — the board must be perfectly level front-to-back AND side-to-side as the door will roll along the track mounted to this board. Any variation in the mounting board will transfer directly to the track and cause the door to drift or hang unevenly.
📷 Photo Needed
Install the Mounting Board (If Needed) — showing the key action and what the result should look like
Step 3: Mount the Track #

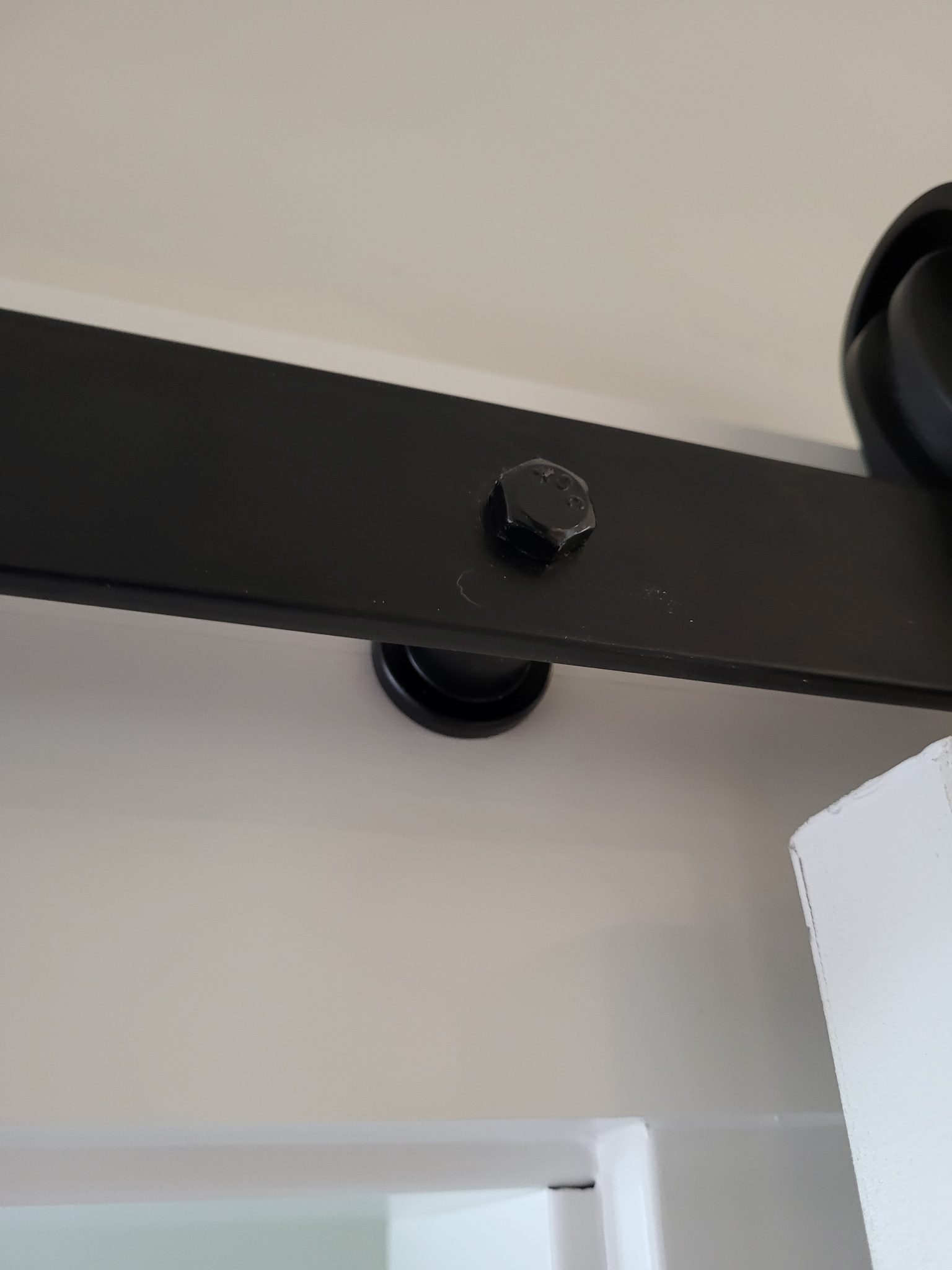

The next step to install barn door track is positioning it on the mounting board (or directly to the header if no board is needed). Most kits include spacers that hold the track away from the wall so the door doesn’t rub against the wall surface. Level the track precisely — run a marble or roller along it to check for level. Lag-bolt through the track mounting holes into the mounting board or studs. Every mounting point must be in solid framing.
Pro Tip: A track that’s even slightly out of level will cause the door to drift to one side on its own. Use a 4-foot level on the track AND do the marble test. If a marble placed on the track rolls, the track isn’t level.
📷 Photo Needed
Mount the Track — showing the key action and what the result should look like
Step 4: Install Door Stops #
Attach the end stops on the track — these are rubber or metal bumpers at each end that prevent the door from rolling off the track. Position the closed-position stop so the door fully covers the opening when closed. Position the open-position stop so the door clears the opening fully when open. Tighten the stops securely — they take the impact force every time the door reaches the end of travel.
📷 Photo Needed
Install Door Stops — showing the key action and what the result should look like
Step 5: Attach Roller Hardware to Door Panel #
Mount the roller/hanger hardware to the top edge of the door panel per manufacturer instructions. Most kits use a combination of lag bolts through the face and a top-mount bracket. The hardware is visible and part of the aesthetic, so position it carefully and ensure the mounting bolts are tight. The rollers must be parallel to each other and the same distance from the door edge for smooth operation.
📷 Photo Needed
Attach Roller Hardware to Door Panel — showing the key action and what the result should look like
Step 6: Hang the Door #
To install barn door panels, lift the door (HEAVY — use a helper) and hook the rollers onto the track. Most rollers have an open hook design that simply drops over the track rail. Slide the door back and forth to test movement — it should glide smoothly without binding or rubbing. Install the anti-jump discs (small hardware pieces that prevent the rollers from lifting off the track during use or if the door is bumped).
Pro Tip: Before hanging, install the door pull/handle while the door is still on sawhorses. It’s much easier to drill and mount hardware on a horizontal surface than a hanging door.
📷 Photo Needed
Hang the Door — showing the key action and what the result should look like
Step 7: Install Floor Guide and Final Adjustments #
The final step to install barn door systems is mounting the floor guide to the floor at the doorway — this keeps the bottom of the door from swinging away from the wall. Most guides are T-shaped and the door straddles it as it slides. Adjust roller heights if the door hangs unevenly (most roller hardware has a height adjustment bolt). Test the door through its full travel in both directions. Verify consistent bottom clearance across the entire travel path.
📷 Photo Needed
Install Floor Guide and Final Adjustments — showing the key action and what the result should look like
Quality Check #
- After you install barn door hardware, the door slides smoothly through full travel
- Door hangs plumb (not leaning)
- Door fully covers opening when closed
- Door clears opening fully when open
- Track perfectly level
- All lag bolts in solid framing
- Door stops prevent overtravel
- Anti-jump discs installed
- Floor guide keeps door from swinging
- Door pull/handle functional
- Bottom clearance consistent across travel
📷 Photo Needed
Completed install barn doors — close-up detail shots showing quality criteria being met
Install Barn Door Troubleshooting #
Door Drifts to One Side on Its Own #
The track is not perfectly level. Loosen the mounting bolts and adjust until the marble test passes — a marble placed on the track should sit still without rolling in either direction. Re-tighten all bolts after leveling and retest.
Door Wobbles or Rattles #
Rollers may need adjustment — check that both rollers are at the same height and the mounting bolts are tight. Anti-jump discs may be too loose, allowing the rollers to lift and drop slightly during travel. Tighten the anti-jump hardware so the rollers stay firmly seated on the track rail.
Door Is Hard to Slide #
Rollers may be dirty or damaged, the track may be misaligned, or the door may be rubbing on the spacers or wall. Clean the rollers and track rail, check that the spacers are holding the door far enough from the wall, and verify the track is straight and level along its full length.
Door Doesn’t Fully Cover the Opening #
The door panel is too narrow. A barn door should be 2-4″ wider than the opening on each side. If the door is already installed and too narrow, the only real fix is a wider door panel — there’s no trim or adjustment that can make up for a significantly undersized door.
Track Is Sagging in the Middle #
Not enough mounting points into framing. The track needs support at regular intervals — every mounting hole should ideally be in solid wood. Add additional lag bolts into studs, or install a mounting board that provides continuous solid backing across the full track length.
Door Swings Away from Wall at Bottom #
The floor guide is missing or misaligned. Install the floor guide at the doorway so the door straddles the guide as it slides. If the guide is already installed, reposition it so it contacts the door properly and prevents outward swing.
