Introduction #
Installing crown molding is a classic way to add a touch of elegance to any room. This Old House has the homeowner-level background on molding profiles; this guide is how we cut, cope and hang it on a production job. Whether you're working on a new construction project or a remodel, crown molding can significantly enhance the aesthetic appeal of a space. It's a detail that can set your work apart, making it a sought-after feature in many homes.
In a production environment, the key to successful crown molding installation is precision and efficiency. This means getting your measurements right the first time and ensuring your cuts are accurate. The single most important concept to master is the seamless fit of the molding. Proper alignment and secure attachment are crucial to avoid gaps and misalignments that can lead to callbacks.
Before You Begin #
Before you install crown molding, confirm that the following prerequisites are complete.
Prerequisites #
- Drywall should be fully installed and finished.
- Ceilings and walls should be painted.
- Cabinets, if applicable, should be installed to ensure proper alignment.
What You Need To Know #
When you install crown molding, understanding these core techniques will save you time and prevent callbacks.
- Accurate measurement and cutting are essential for a seamless fit.
- Use triangular nailing blocks for secure attachment to the ceiling.
- Consider the type of molding required for the job, since the profile and material affect how it cuts and finishes.
- Outside corners are always mitered. Inside corners are mitered by default because it is less work, but coped when the piece is short, the space is tight, or the material is stained.
Tools #
- Miter Saw - for precise angle cuts.
- 18 gauge brad nailer, 1-3/4 inch brads - for securing crown to the nailing blocks.
- Measuring Tape - to ensure accurate measurements.
- Level - to check for alignment.
Materials #
- Crown Molding - poplar or maple, depending on client preference and budget.
- Triangular Nailing Blocks - made from 2x6 lumber.
- Wood Glue and Putty - for gluing and filling the miter and splice joints where crown pieces meet.
- Fasteners - appropriate nails or screws for secure installation.
Installation Steps #
Step 1. Measure and Cut #
Begin by measuring the length of each wall and cutting the crown molding to fit. Use a miter saw to make precise angle cuts, ensuring each piece fits snugly against the wall and ceiling.
- Measure twice to avoid errors.
Step 2. Cut Outside Corners (Miter) #
Outside corners are always mitered, there is no coping option on an outside corner. Cut the molding either upside down and backwards against the fence at the molding's spring angle, or lay it flat on the saw table and use the compound miter and bevel settings for that spring angle. Cut the two mating pieces to opposite angles so the faces meet in a clean point.
- Set the miter saw to the corner angle, 45 degrees for a square corner, adjusted if the walls are out of square.
- Cut one piece with the blade angled one way and the mating piece angled the other way so the profiles meet.
- Dry fit before nailing, and adjust the angle in small steps if the joint gaps.
Step 3. Cut Inside Corners: Miter or Cope #
Inside corners can be mitered or coped. Miter by default, it is less work. Cope when the piece is short or the space is tight, since you cannot spring a short piece into a mitered joint, and cope on stained material, since a stained joint cannot be hidden with caulk the way a painted one can.
- To miter an inside corner, cut both pieces upside down and against the fence at the spring angle, or flat with the compound settings, with the angles reversed from an outside corner so the profiles meet inside the corner.
- To cope, square cut the first piece into the corner and fasten it flush.
- Miter the mating piece as if for an inside miter, cutting only far enough to expose the profile on the cut face.
- Follow the profile line on the exposed face with a coping saw, cutting at a back bevel so only the front edge of the profile touches the first piece.
- Test fit the coped piece against a scrap of the first piece, and pare high spots with the coping saw or a utility knife until the profile seats tight.
Step 4. Prepare Nailing Blocks #
Create triangular nailing blocks from 2x6 lumber to provide a secure backing for the molding. Attach these blocks to the ceiling where the molding will be installed.
- Space blocks every 16 inches along the ceiling.
Step 5. Install Molding #
Position the molding against the wall and ceiling, securing it with an 18 gauge brad nailer and 1-3/4 inch brads into the nailing blocks. Ensure each piece is level and flush with the adjoining sections.
- Use a level to check alignment.
- Secure with nails into the nailing blocks.
Step 6. Glue and Finish Joints #
Glue and putty the miter and splice joints where one piece of molding meets another, then sand the joint smooth so the run reads as one continuous piece. That is our scope; any gap between the molding and the wall or ceiling is a painter's caulk line, not ours.
- Glue and putty the joint, then sand smooth once the glue sets.
Step 7. Final Touches #
Inspect the installation for any gaps or misalignments and make necessary adjustments before you leave the room.
- Ensure all joints are smooth and seamless.
- Flag any remaining gaps or misalignment for the painter.
Pro Tips #
Pro Tip: "Probably make some triangular nailing blocks that attach to the ceiling behind the crown." - This ensures a secure and long-lasting installation.
Pro Tip: "All he wants us to do is just the crown molding" - Focus on perfecting the crown molding as it often stands out as a key feature in the room.
Common Mistakes #
- Mistake: Misaligned corners - Ensure precise measurements and cuts to avoid gaps at corners.
- Mistake: Insufficient nailing - Use enough nailing blocks to prevent molding from sagging over time.
QC / Punch Checklist #
- All corners are flush and seamless.
- No visible gaps between molding and ceiling/wall.
- All miter and splice joints are tight, glued, and puttied smooth.
Related Guides #
- How to Install Baseboard
- How to Case a Window
- How to Install Stock Trim Material
- How to Build a Custom Decorative Header
- How to Install Ceiling Beams
- Which Material and Profile Goes Where
Reference Photos #

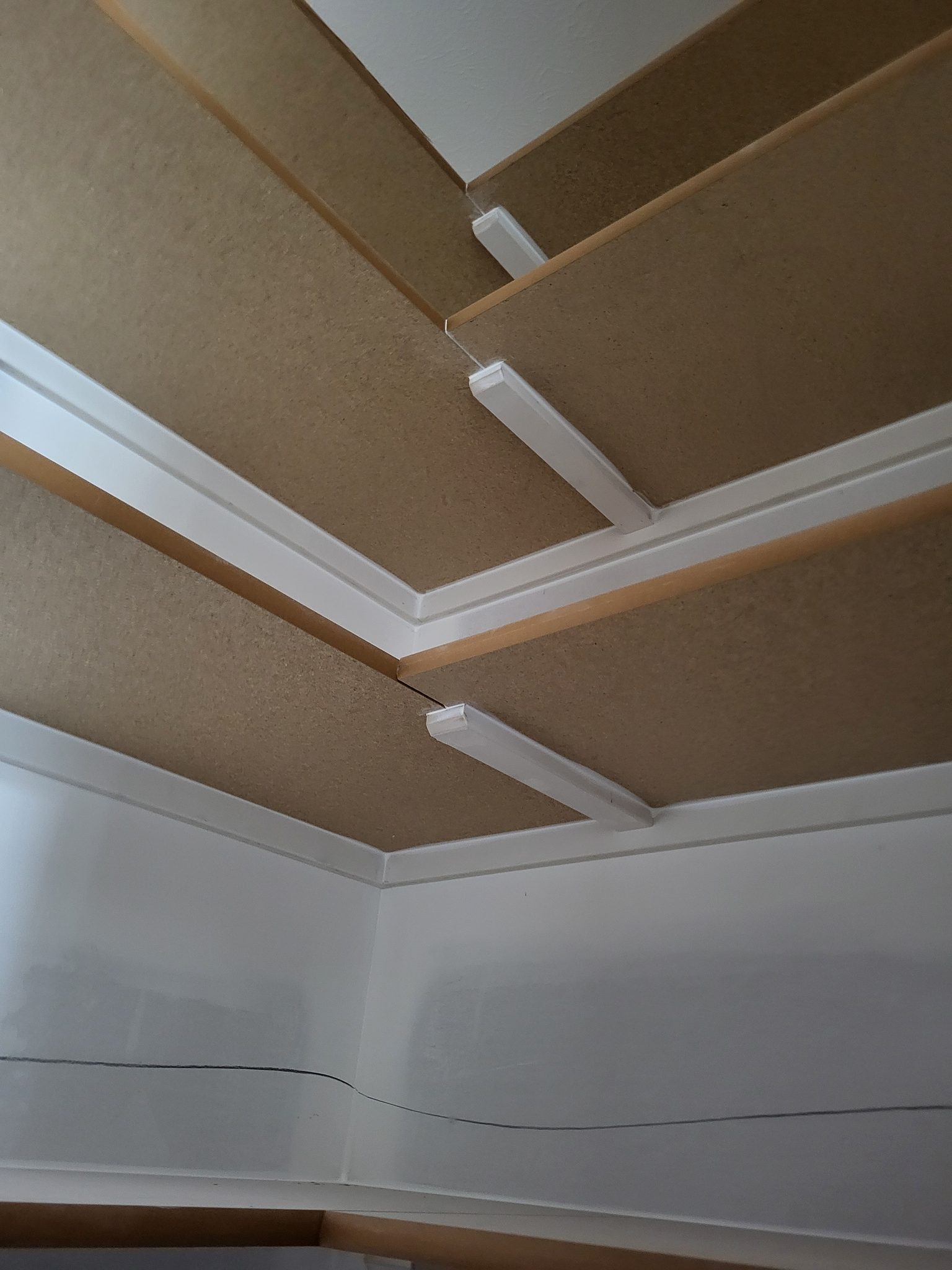

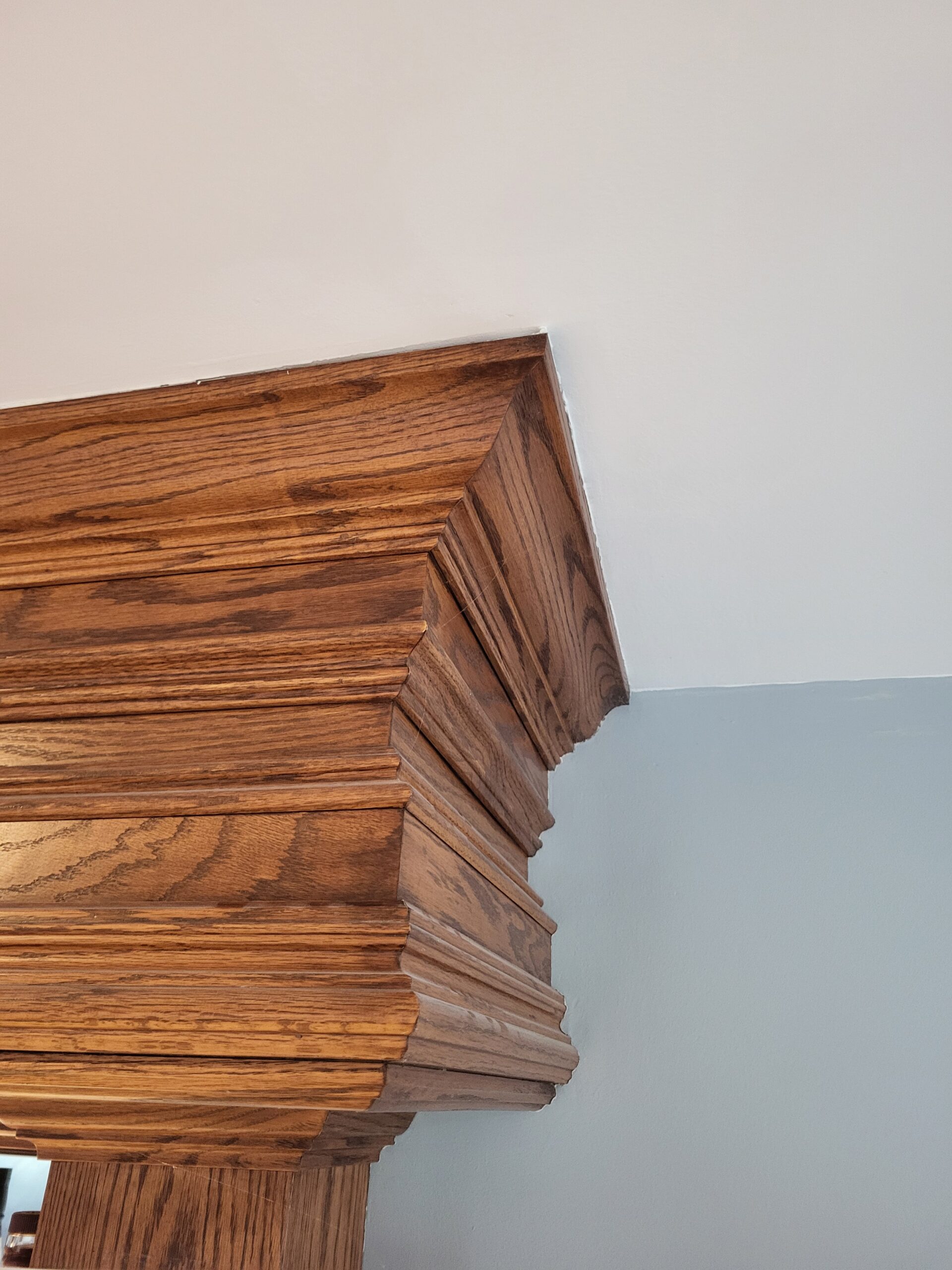

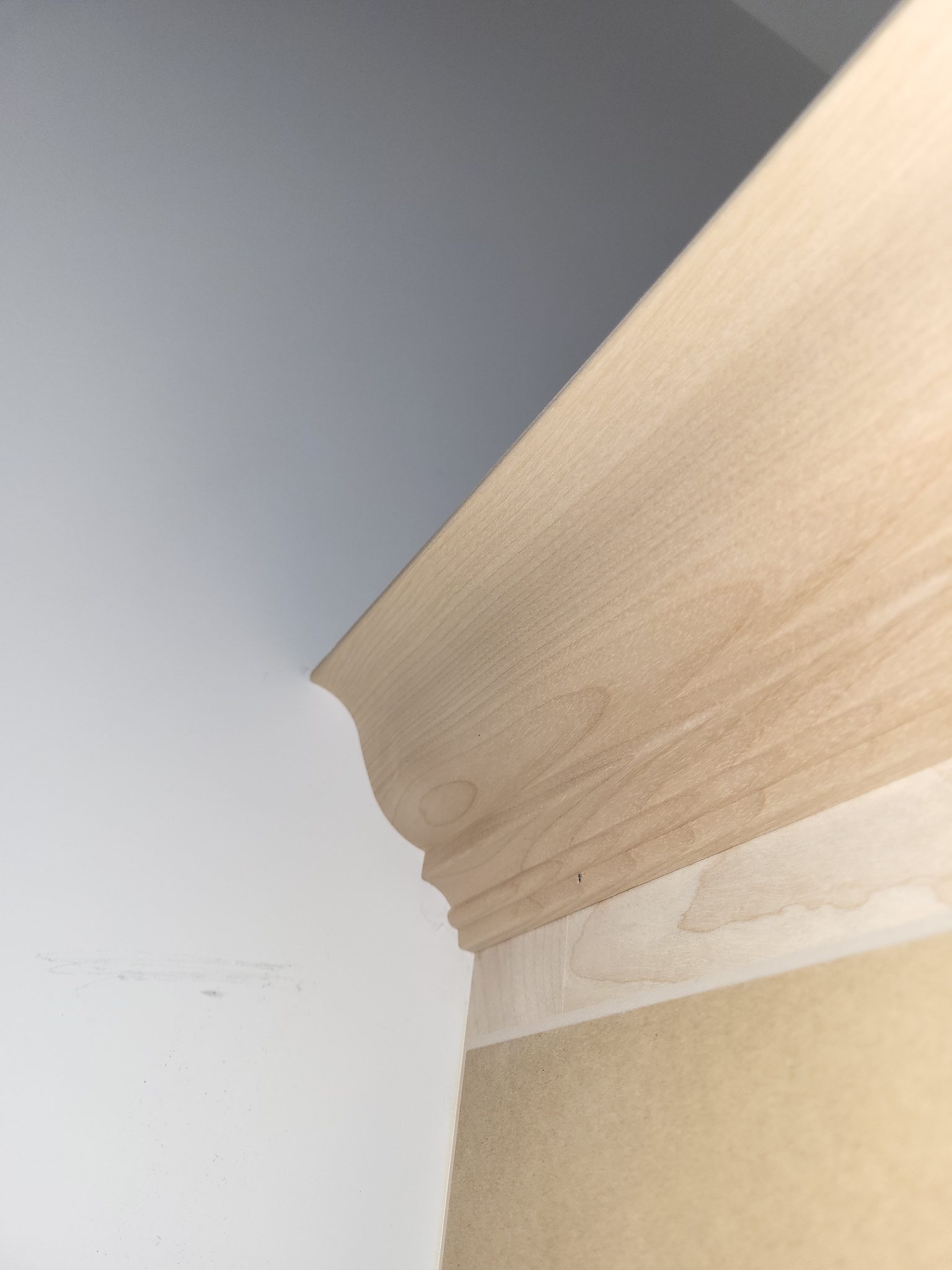

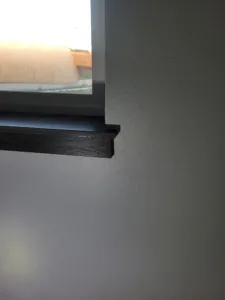

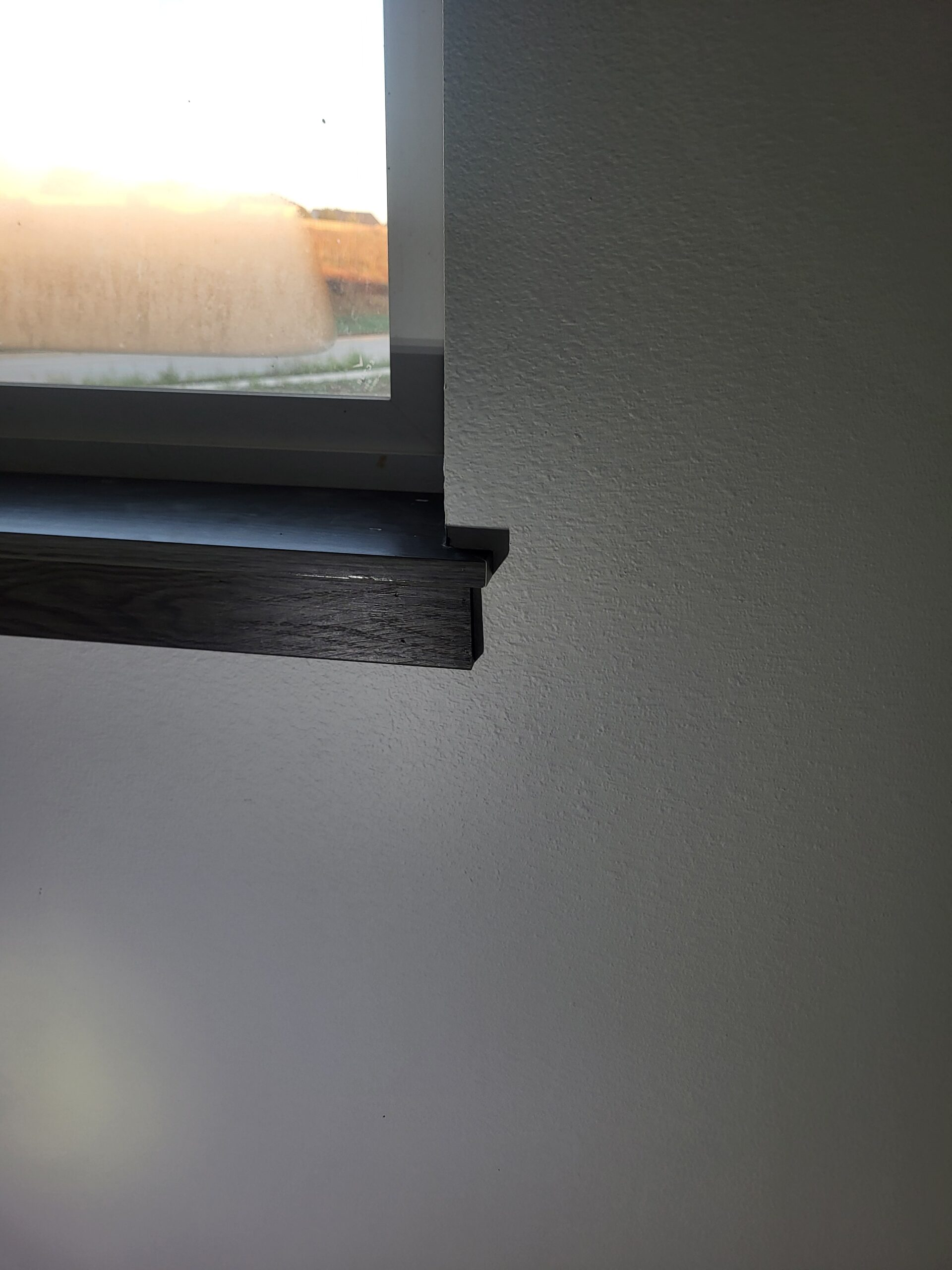

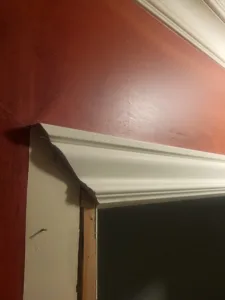

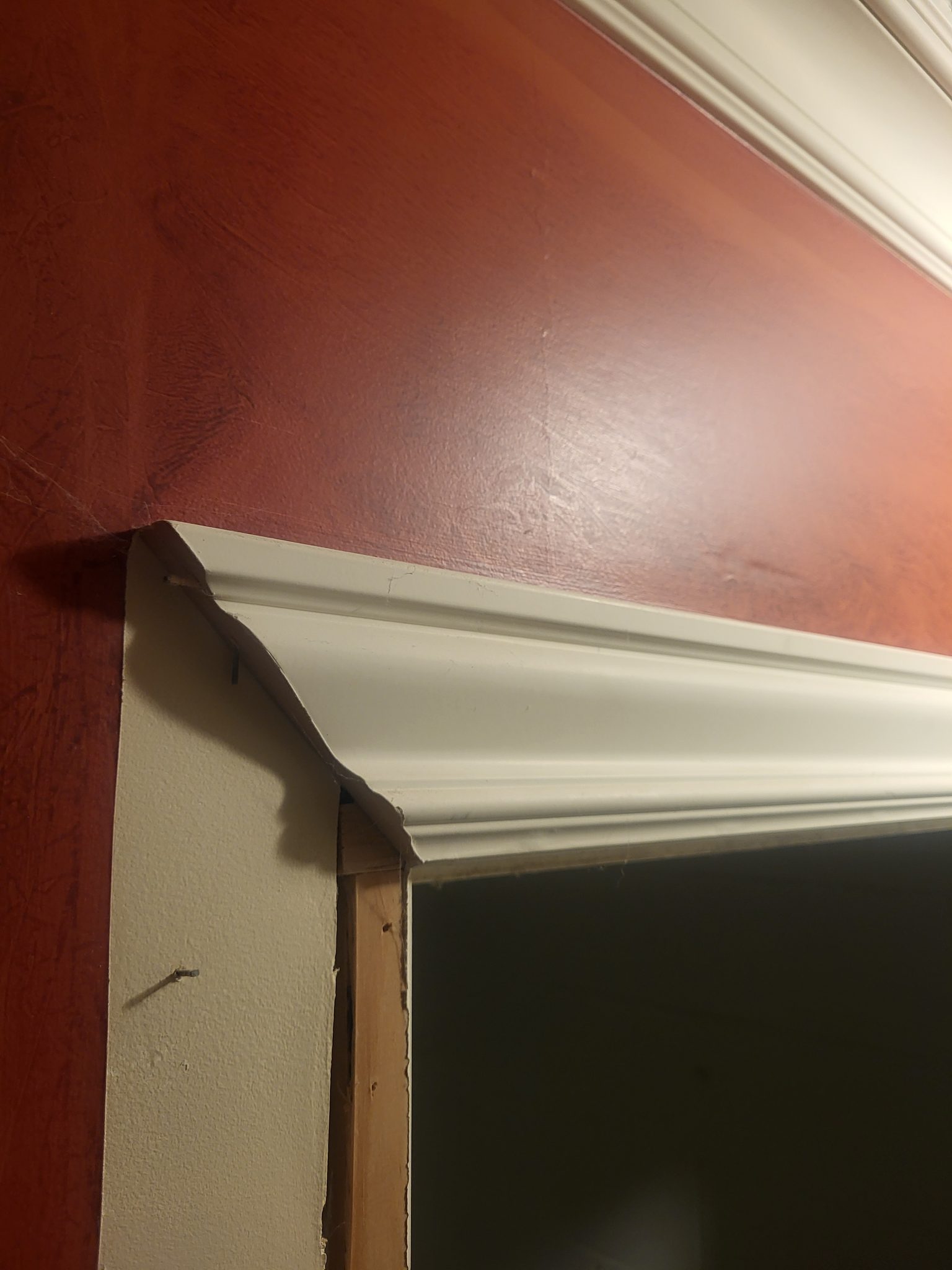

The following photos show examples of this type of work completed in the field. These serve as visual references for quality standards, proper installation techniques, and finished results.
Showing 5 of 5 photos
